3010113161 - 6-Zone Magnetic Table Overlay (Metric GT)

6-Zone Magnetic Table Overlay (Metric GT) – Océ Arizona 4xx GT (3010113161)

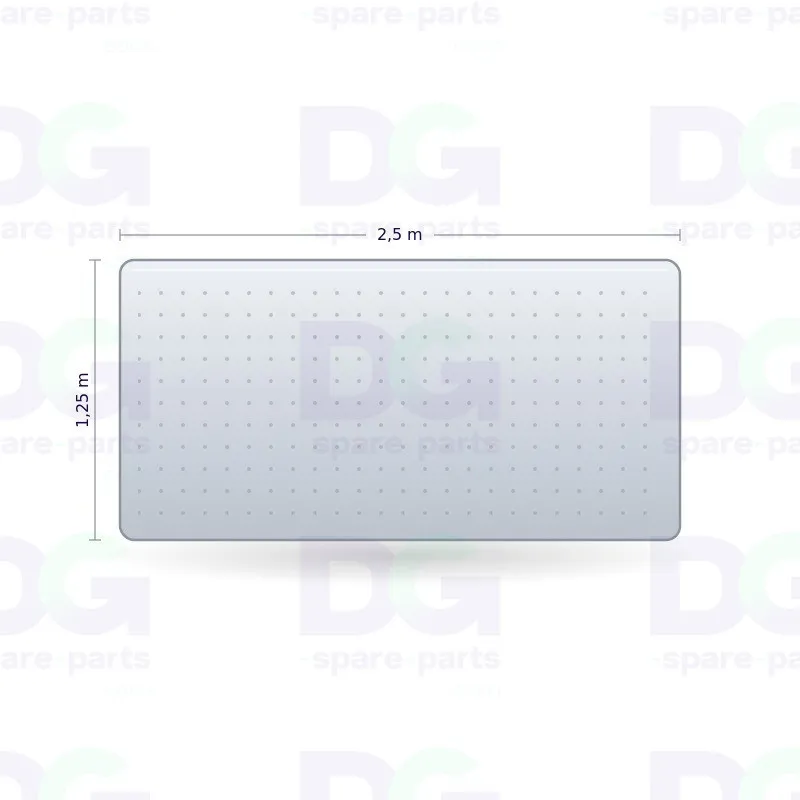

The 6-zone magnetic table overlay (3010113161) is a rigid, one-piece aluminium cover for the vacuum table of the Océ Arizona 400 GT flatbed UV printers.

Laid on the print table it creates the vacuum field that holds the media flat and still; magnetic strips on the underside split the suction into 6 independent zones.

Technical specifications

• OEM reference: 3010113161
• Manufacturer: Canon Océ
• Part type: Magnetic vacuum-table overlay (6-zone, GT)
• OEM designation: Assy Overlay Magnetic 6 Zone Metric GT
• Material: Aluminium
• Vacuum zones: 6 (GT configuration)
• Table size: Metric 1.25 × 2.5 m
• Media thickness: up to 50.8 mm
• Magnets: Supplied as strips (rolls), not fitted
• Shipping: Bulky part — palletised, shipping on quote

Compatibility & use

• Canon Océ Arizona 4xx
• Fujifilm Acuity

Function

• Covers the vacuum table and creates the suction field
• Holds rigid or flexible media flat and still while printing
• Splits the suction into 6 independent zones via magnets
• Lets you match the vacuum area to the media size

Signs of wear

• Loss of vacuum / weak suction
• Media lifting, shifting or moving while printing
• Head strikes from poorly-held media
• Warped or dented overlay causing air leaks

Supplied to assemble; magnet strips fitted by the operator.

♻️ DG Spare Parts – European specialist in spare parts for large-format printers and plotters.
