1000003691 - Sheet, Linear Scale XJ-640 (encoder strip)

Linear encoder strip – Roland XJ-640 / XR-640 / VG-640 – 1000003691

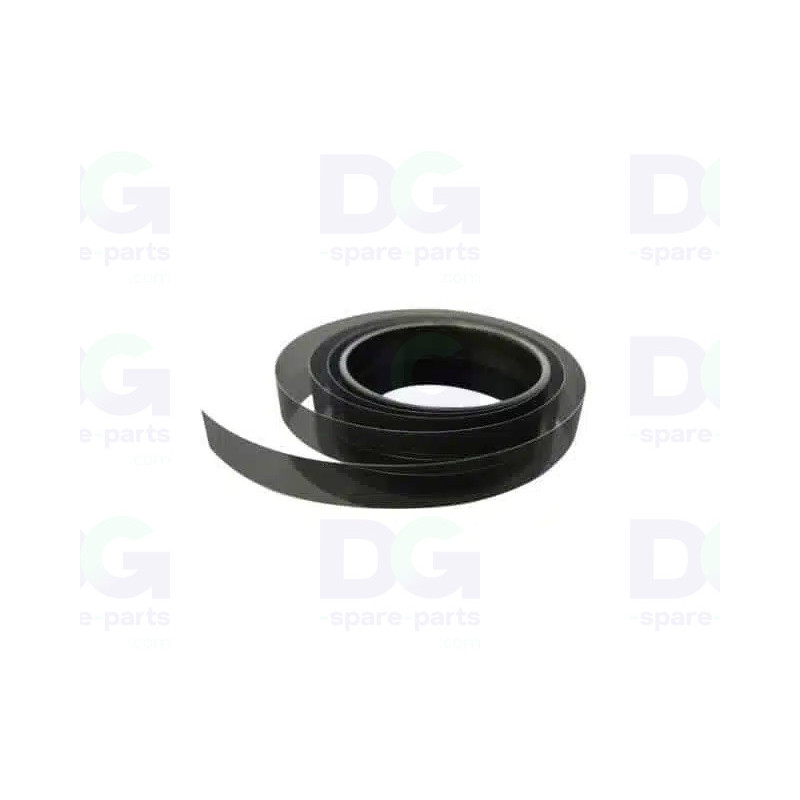

The Roland 1000003691 linear encoder strip (Sheet, Linear Scale XJ-640) is the optical ruler mounted along the carriage rail on the entire Roland 64-inch range: XJ-640, XR-640, XF-640, XT-640, EJ-640, LEC-540, VersaEXPRESS and TrueVIS VG / VG2 / SG2 / VF2. The encoder sensor continuously reads it to determine the exact position of the print heads.

Its graduations at 180 lines per inch (180 LPI) provide the controller with the position reference for each pass. This precision ensures accurate drop placement and bidirectional printing without misalignment.

Supplied on its own, in the original dimensions of 2360 × 15 mm, including mounting holes. Three options are available on this product page: New (original Roland part), Refurbished (inspected original part) or New / Compatible (strip manufactured by DG Spare Parts).

Technical specifications

• OEM part number: 1000003691
• Manufacturer: Roland DG
• Part type: Linear encoder scale (encoder strip)
• Resolution: 180 LPI
• Dimensions: 2360 mm × 15 mm (total length, including holes)
• Axis concerned: Print carriage movement
• Delivery: Single part, ready for fitting
• Condition: New (OEM), Refurbished or New / Compatible depending on the variant selected

Compatibility and use

• Roland XJ-640, XR-640, XF-640, XT-640
• Roland EJ-640
• Roland LEC-540
• Roland VG-540, VG-640, VG2-540, VG2-640
• Roland SG2-540, SG2-640
• Roland VF2-640

‘New / Compatible’ version – manufactured by DG Spare Parts

• Strip cut in our workshop from a generic 180 LPI encoder strip, 15 mm wide, to the original length of 2360 mm.
• Mounting holes drilled by DG Spare Parts using the original template: the strip is supplied ready for fitting.
• Same resolution and width as the original part, compatible with the existing encoder sensor.
• Made to order; not covered by the Roland manufacturer’s warranty.

Function

• To provide the encoder sensor with the carriage’s position reference
• Ensure synchronisation between the carriage’s movement and the heads’ firing
• Ensure alignment of the forward and return passes
• Maintain the dimensional accuracy of the prints

Possible symptoms of wear

• ‘Motor error’ message or carriage stoppage during printing
• Misalignment or duplication of passes in bidirectional mode
• Fine, irregular stripes across the width of the media
• Scratches, ink marks or faded graduations visible on the tape

Replacing the encoder belt restores reliable carriage positioning and eliminates registration errors caused by impaired reading.
