CR Encoder Assy - DG-42947

DG-42947 – Carriage encoder (CR Encoder Assy) – Mutoh Valuejet

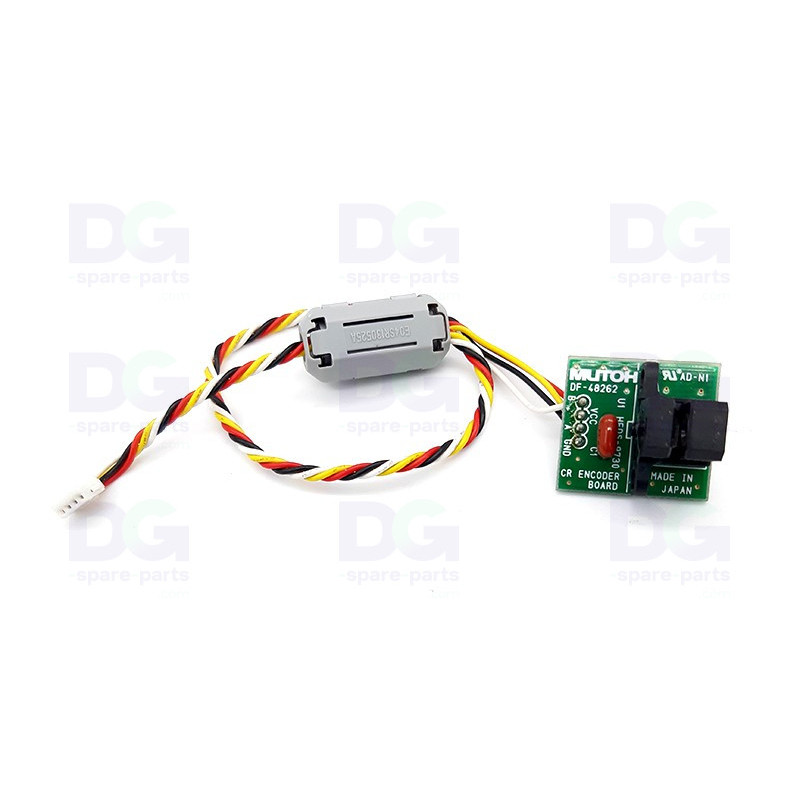

The DG-42947 carriage encoder (CR Encoder Assy) is the carriage encoder sensor mounted on Mutoh Valuejet large-format printers (1324, 1638, 2638, 426UF and XPJ series).

It reads the position information on the encoder strip to determine the exact carriage position on the horizontal axis in real time and passes it to the main board, which synchronises the firing of the nozzles with the carriage travel. This precision guarantees a perfect alignment of the ink drops and a constant print quality, including in high-speed bidirectional mode. It is replaced in case of a reading fault causing print offsets or encoder errors.

Technical specifications

• OEM reference: DG-42947
• Manufacturer: Mutoh
• Part type: Carriage encoder sensor
• Position: Print carriage (X axis)
• Function: Optical reading of the encoder strip
• Shipping: Shipped ready to install

Compatibility & use

• Mutoh Valuejet 6xx
• Mutoh Valuejet 13xx
• Mutoh Valuejet 16xx
• Mutoh Valuejet 19xx
• Mutoh Valuejet 26xx
• Mutoh Valuejet 426UF
• Mutoh Valuejet 1627MH

Function

• Reads the exact carriage position on the encoder strip
• Transmits the positioning data to the main board in real time
• Synchronises the firing of the nozzles with the carriage travel
• Guarantees the precise alignment of the ink drops on the media
• Allows high-resolution printing and bidirectional alignment

Signs of wear

• Recurring horizontal offsets between print passes
• Vertical banding or aliasing on the prints
• Encoder error message on the control panel
• Carriage no longer positioning correctly or overrunning
• Bidirectional alignment impossible despite adjustments

Replacing this part restores the machine to proper working order.

♻️ DG Spare Parts – European specialist in spare parts for large-format printers and plotters.
