3010109550 - Left UV lamp housing (without lamp) Arizona 2xx/300/350

3010109550 – Left UV lamp housing (fan assembly, no lamp) – Canon Océ Arizona

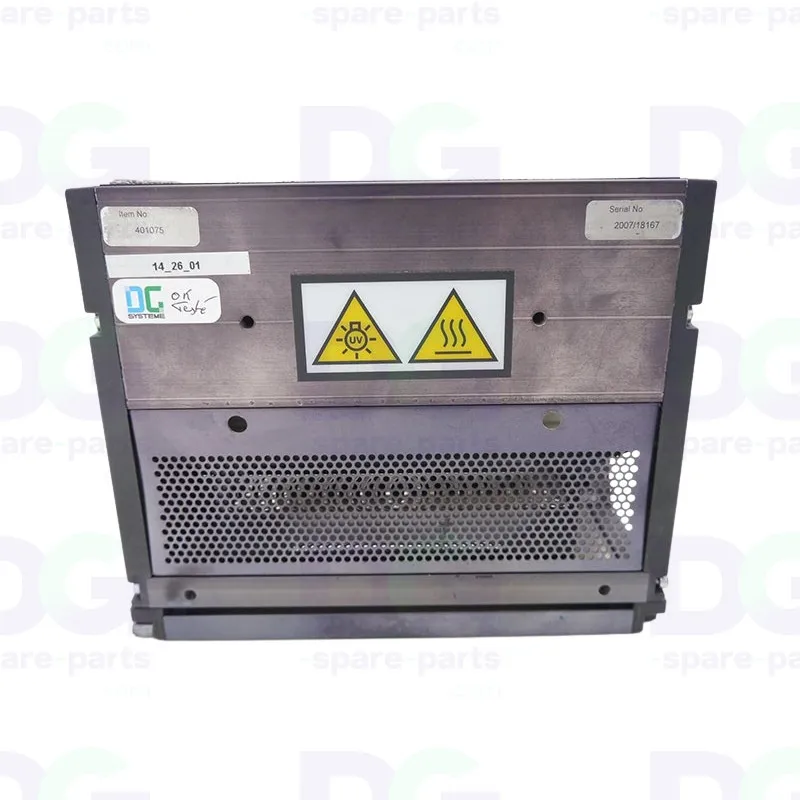

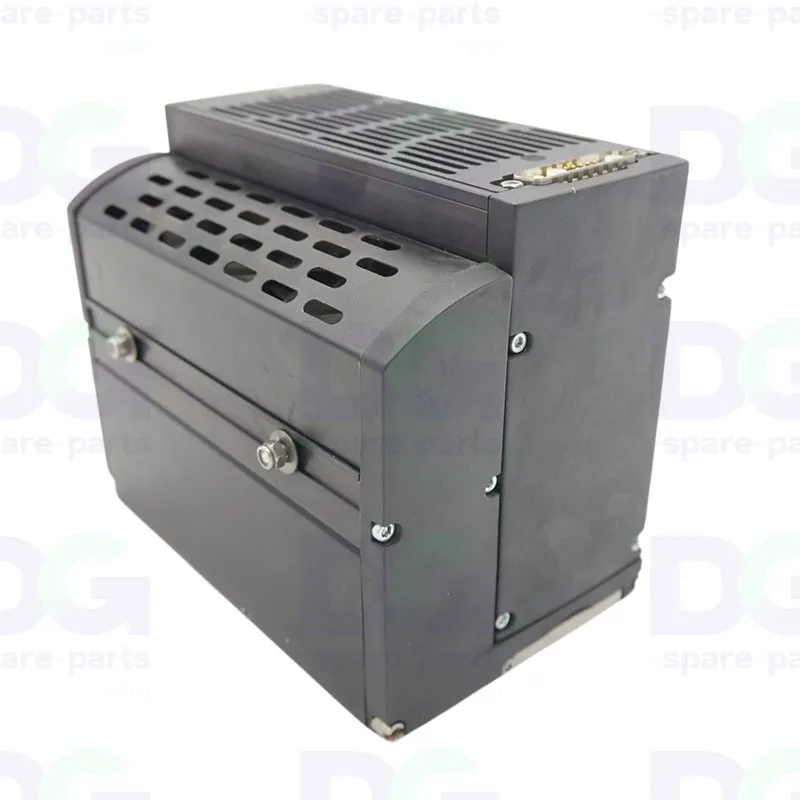

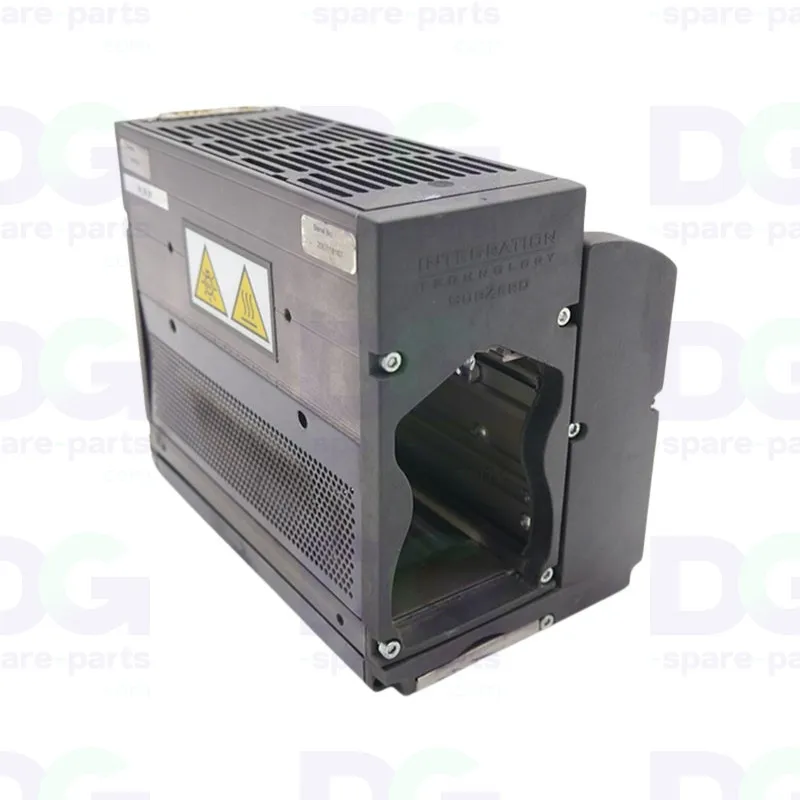

The 3010109550 left UV lamp housing is the ventilation assembly that cools the left UV lamp and its shutter on Canon Océ Arizona 2xx, 300 and 350 UV flatbed printers.

It groups the cover, the filter, the lamp fan and the three-fan shutter kit into a single sub-assembly. Keeping a constant airflow through the filter ensures a controlled operating temperature of the UV lamp and the shutter quartz plate — essential to even ink curing and lamp life.

A Canon Océ original part (OEM), supplied without UV lamp and ready to be installed by a service technician. The references 3010105466, 401075 and 401029 are equivalent references of this same housing. Note: the presence of the SHUTTER-QUARTZ SUBZERO plate (ref. 3010108627) is not guaranteed on this assembly.

Technical specifications

• OEM reference: 3010109550
• Manufacturer: Canon Océ
• Part type: UV lamp cooling housing (left)
• Equivalent references: 3010105466, 401075, 401029
• Supplied: WITHOUT UV lamp, ready to fit
• Reservation: SHUTTER-QUARTZ SUBZERO plate (ref. 3010108627) presence not guaranteed
• Assembly: Cover 3010108628 + Filter 3010108629 + Lamp fan 3010108630 + Shutter 3-fan kit 3010108631
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 2xx
• Canon Océ Arizona 3xx
• Fujifilm Acuity

Function

• Provides forced cooling of the left UV lamp and its shutter
• Keeps a constant airflow through the filter to evacuate the heat of the UV zone
• Protects the lamp and the quartz plate against overheating during print cycles
• Groups cover, filter and fans into a single assembly for fast workshop replacement

Signs of wear

• UV lamp overheating, thermal safety trips or machine stop
• Noisy, slowed or stopped fans, temperature errors on the UV side
• Uneven ink curing linked to an overheating lamp
• Clogged filter, reduced airflow and premature lamp / quartz plate ageing

Replacing this part restores the machine to proper working order.

♻️ DG Spare Parts – European specialist in spare parts for large-format printers and plotters.
