3010109551 - Straight UV lamp housing (without lamp) Arizona 2xx/300/350

Right-hand UV lamp housing (without lamp) – Canon Océ Arizona 2xx/300/350 – 3010109551

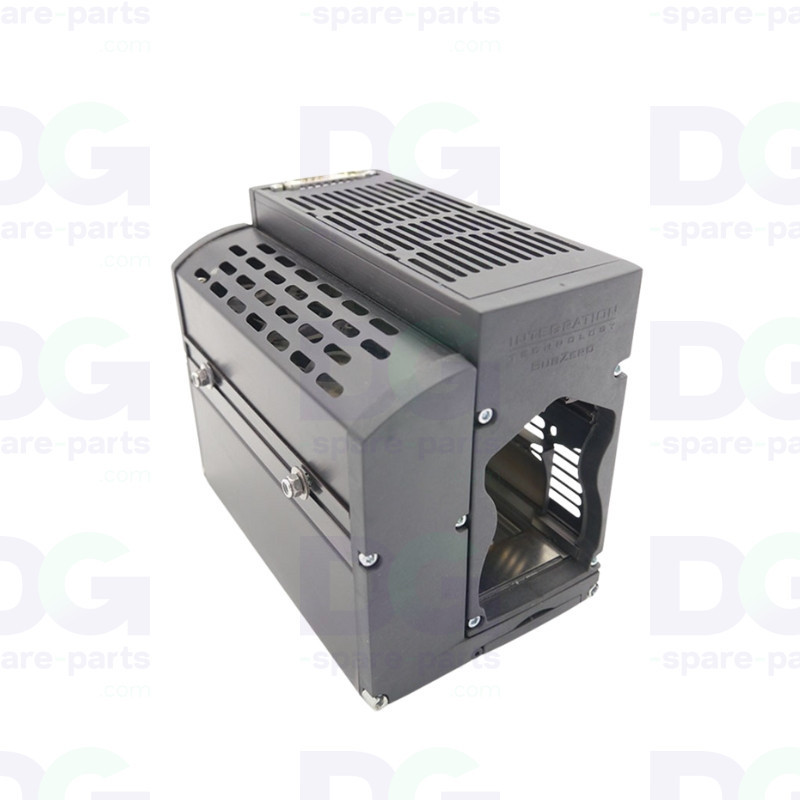

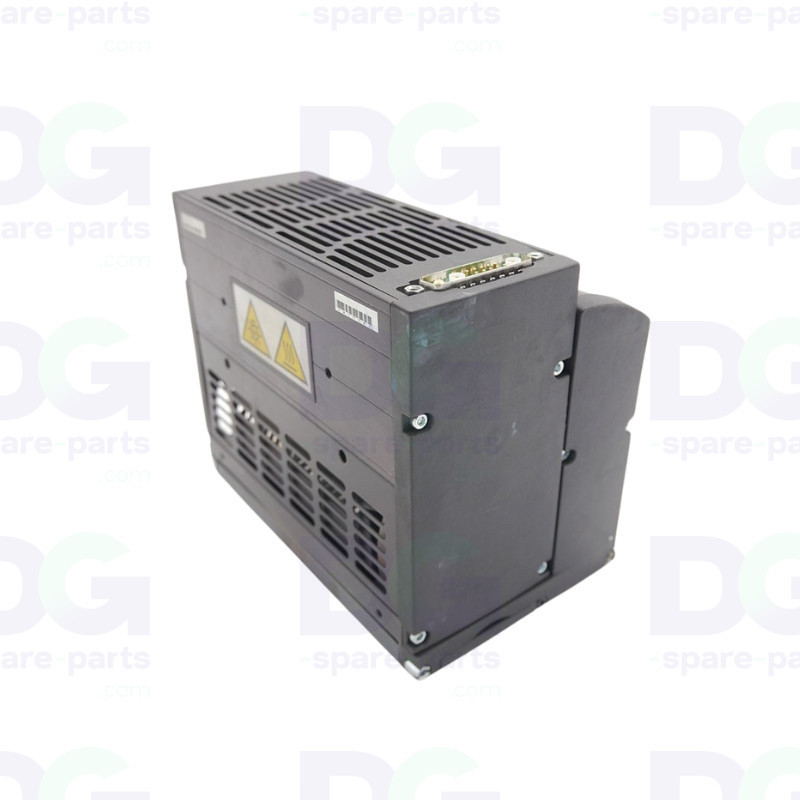

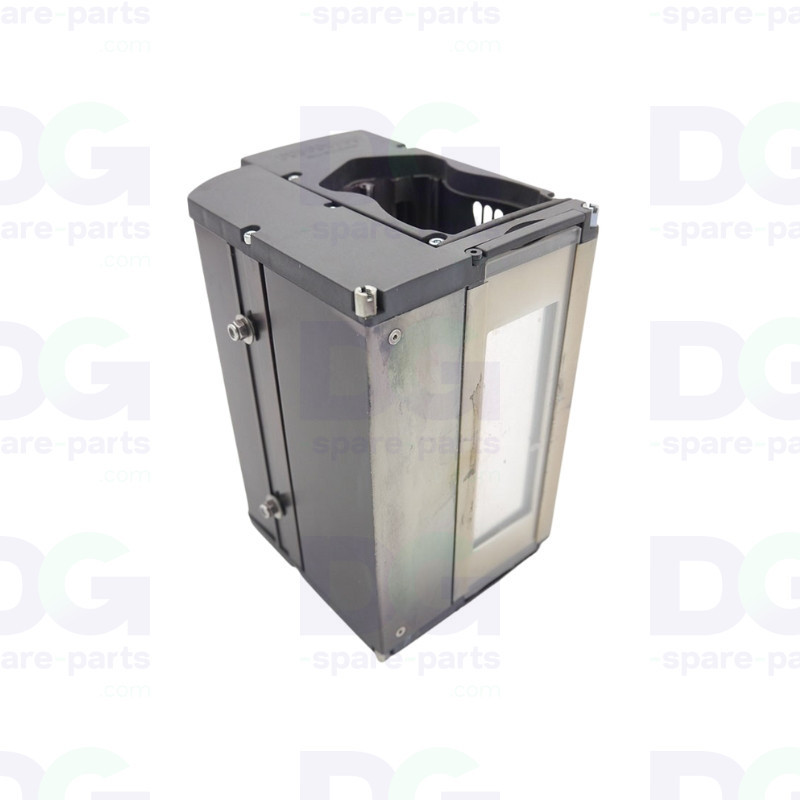

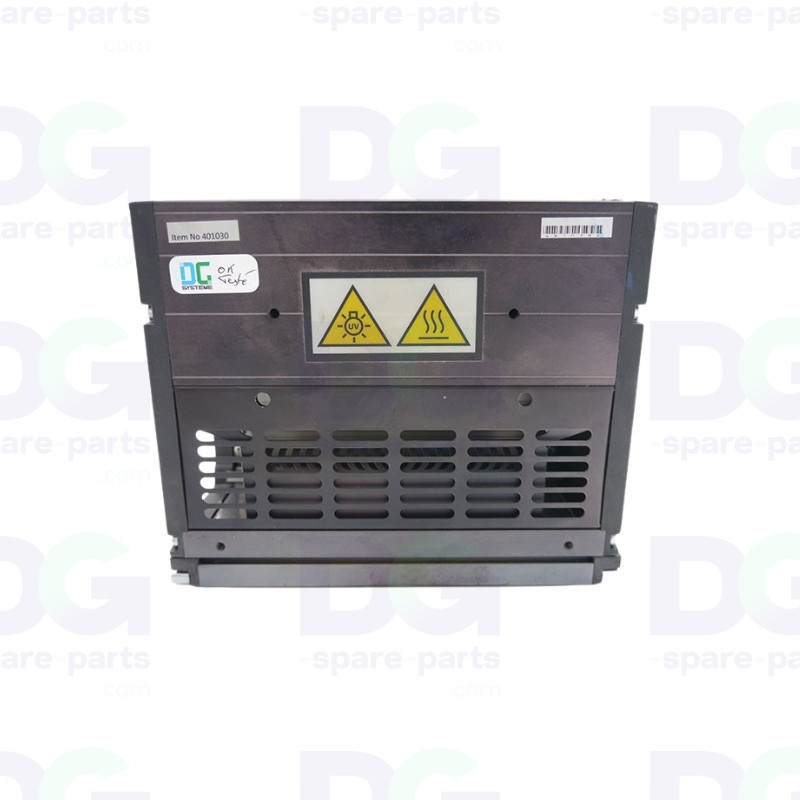

The right-hand UV lamp housing (part no. 3010109551) is the ventilation assembly that cools the right-hand UV lamp and its shutter on Canon Océ Arizona 2xx, 300 and 350 series flatbed UV printers. It combines the housing, filter, lamp fan and set of three shutter fans into a single sub-assembly.

Maintaining a constant airflow through the filter ensures a controlled operating temperature for the UV lamp and the shutter’s quartz plate — an essential condition for uniform ink drying and the lamp’s longevity.

Genuine Canon Océ (OEM) part, supplied without a UV lamp and ready for installation by a service technician. Part number 3010105467 is an equivalent part number for this same housing. ⚠️ The inclusion of the SHUTTER-QUARTZ SUBZERO plate (part no. 3010108627) is not guaranteed with this set.

Technical specifications

• OEM part number: 3010109551
• Equivalent part number: 3010105467
• Manufacturer: Canon Océ (OEM)
• Part type: UV lamp housing / ventilation assembly – right-hand side
• Assembly contents:
  • 3010108628 – Fan cover, UV lamp
  • 3010108629 – Fan filter, UV lamp (Filter, Fans – UV Lamp)
  • 3010108630 – Cooling fan, UV lamp (Fan, Cooling – UV Lamp)
  • 3010108631 – Kit of 3 cooling fans, UV shutter (Kit, Fans (3) Cooling – UV Shutter)
• Delivery: Set supplied WITHOUT UV lamp, ready for installation
• Note: Presence of the SHUTTER-QUARTZ SUBZERO plate (ref. 3010108627) not guaranteed
• Origin: Genuine Canon Océ part (OEM)
• Application: Canon Océ Arizona 2xx / 300 / 350 series UV flatbed printer

Compatibility and use

• Canon Océ Arizona 200 GT
• Canon Océ Arizona 250 GT
• Canon Océ Arizona 300 GT
• Canon Océ Arizona 350 GT
• Canon Océ Arizona 350 XT

Function

• To provide forced cooling for the right-hand UV lamp and its shutter
• Maintain a constant air flow through the filter to remove heat from the UV zone
• Protect the lamp and quartz plate from overheating during print cycles
• Combine the housing, filter and fans into a single unit for quick replacement in the workshop

Possible symptoms of wear

• Overheating of the UV lamp, thermal safety switches tripping or machine shutdown
• Noisy, slow or stopped fans, temperature errors on the UV side
• Uneven ink drying due to an overheating lamp
• Clogged filter, reduced airflow and premature ageing of the lamp/quartz plate

Replacing this ventilation housing maintains cooling of the UV lamp and preserves the drying reliability of Canon Océ Arizona 2xx/300/350 series printers.
