E300562 - Linear Encoder Scale 4497 (encoder strip)

Linear encoder strip – Mimaki JV5-260S / JV5-320DS / JV5-320S – E300562

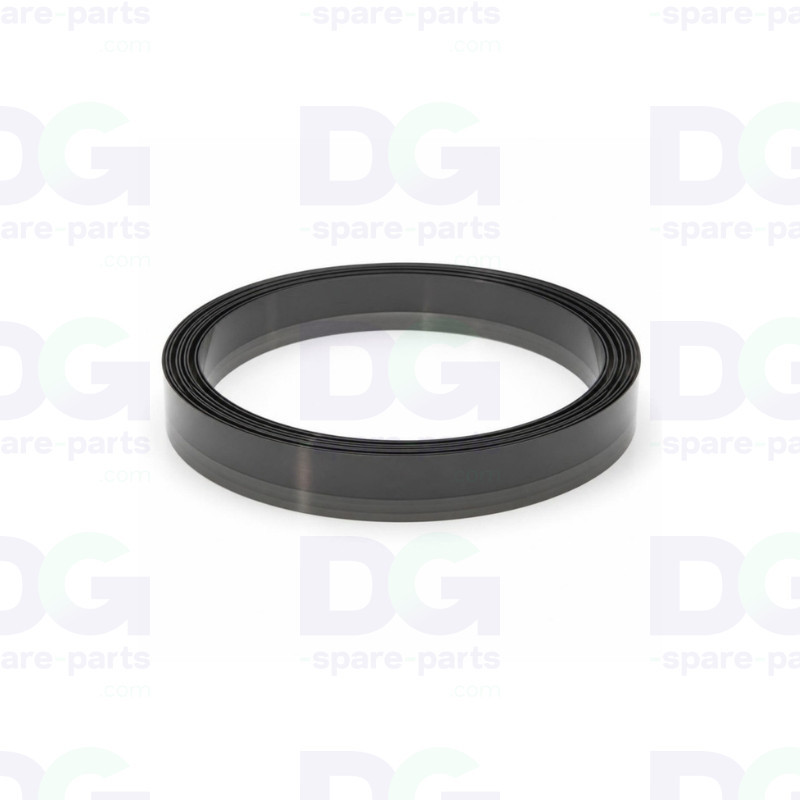

The Mimaki E300562 linear encoder strip (Linear Encoder Scale 4497) is the optical scale fitted along the carriage rail of the Mimaki JV5-260S, Mimaki JV5-320DS, Mimaki JV5-320S. The encoder sensor reads it continuously to know the exact position of the print heads.

Its 180 lines per inch (180 LPI) graduations give the controller the position reference on every pass. This accuracy ensures exact dot placement and bidirectional printing without misalignment.

Supplied as a single part, in the original dimensions of 4497 × 15 mm, mounting holes included. Three options on this product page: New (genuine Mimaki part), Refurbished (tested genuine part) or New / Compatible (strip manufactured by DG Spare Parts).

Technical specifications

• OEM part number: E300562
• Manufacturer: Mimaki
• Part type: Linear encoder strip (linear encoder scale)
• Resolution: 180 LPI
• Dimensions: 4497 mm × 15 mm (overall length, holes included)
• Axis: Print carriage travel
• Delivery: Single part
• Condition: New (OEM), Refurbished or New / Compatible depending on the selected option

Compatibility and use

• Mimaki JV5-260S
• Mimaki JV5-320DS
• Mimaki JV5-320S

"New / Compatible" version – manufactured by DG Spare Parts

• Strip cut in our workshop from a 180 LPI generic encoder strip, 15 mm wide, to the original length of 4497 mm.
• Delivered without mounting holes: to be drilled by the customer using the original strip as a template.
• Same resolution and width as the original part, compatible with the existing encoder sensor.
• Made to order, without Mimaki manufacturer warranty.

Function

• Provide the encoder sensor with the carriage position reference
• Synchronise carriage travel with head firing
• Keep forward and return passes aligned
• Maintain the dimensional accuracy of prints

Possible symptoms when worn

• Motor error or carriage stopping mid-print
• Misaligned or doubled passes in bidirectional mode
• Fine, irregular banding across the media width
• Scratches, ink marks or faded graduations visible on the strip

Replacing the encoder strip restores reliable carriage positioning and removes registration defects caused by a corrupted reading.
