Diager© 4041--10P0200-095° milling cutter

Conical scoring and bending cutter – Diager – 4041-10P0200-095°

The Diager 4041-10P0200-095° cutter is a single-piece carbide conical tool, specifically developed for V-grooving followed by bending of composite panels with a plastic core and aluminium cladding (ACM and TAC types such as Dibond© and Alucobond©).

It enables the machining of a V-groove with an open angle of 95° in the top skin and the central foam core of the panel, without cutting into the bottom skin. The panel can then be folded at a right angle (90°) along the groove, with the additional 5° compensating for the material’s springback to achieve a clean, even fold. This technique is used in signage, point-of-sale displays, architectural cladding and the manufacture of light boxes.

Supplied as a single tool (without a shank), it fits any tool holder designed for a standard Ø6 mm shank. For Zünd cutting tables requiring a shanked cutter, please refer to version 4041--10P0200-095-B.

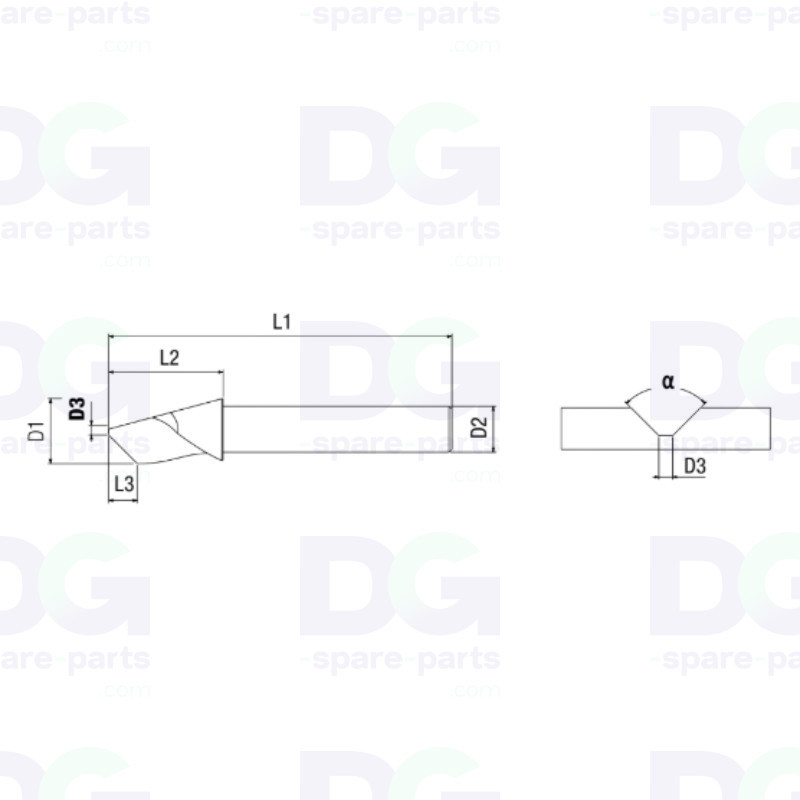

Technical specifications

• OEM reference: 4041-10P0200-095°
• Manufacturer: Diager Industrie (France)
• Tool type: Single-flute solid carbide conical cutter, right-hand helix (upcut)
• Maximum cutting diameter (D1): 10.0 mm
• Shank diameter (D2): 6.0 mm (reinforced shank)
• Grooving depth (D3): 2.0 mm
• Taper length (L3): 3.6 mm
• Cutting length (L2): 20.0 mm
• Total length (L1): 60.0 mm
• Cone angle (α): 95° (allows 90° bending with springback compensation)
• Number of teeth (Z): 1
• Tool material: Tungsten carbide
• Supplied as: Tool only, standard version without shank

Compatibility and use

• CNC routers and routers fitted with a tool holder or Ø6 mm collet
• Milling/router modules on digital cutting tables compatible with Ø6 mm shankless tools
• Creasing and folding machines designed for signage and POS displays
• Version compatible with Zünd tables (with collar): part number 4041--10P0200-095-B

Function

• Creation of 2 mm deep V-grooves at a 95° angle on aluminium composite panels
• Preparation for 90° folding of Dibond©, Alucobond©, ACM and TAC panels for the manufacture of light boxes, box letters, cladding and signs
• Machining of the top skin and plastic core without damaging the bottom skin, which acts as a hinge
• Chip evacuation upwards via the right-hand spiral (upcut) for a clean, even groove
• Compatible with production workflows in signage, POS, architectural decoration and large-format laminated printing

Possible symptoms of wear

• Irregular bending, breakage or tearing of the bottom face when bending the panel
• Burrs, aluminium strands or foam tear-outs in the groove
• Inaccurate creasing depth or degraded V-angle, resulting in a non-square fold
• Abnormal heating, increased vibration or irregular cutting noise during production
• Chipping of the cutting edge or breakage of the conical tip during machining

Regular replacement of the 4041-10P0200-095° cutter ensures clean folding, consistent parts and the final quality of aluminium composite panel boxes, signs and cladding.
