Diager© 4002-X0400 milling cutter

Single-tooth short left-hand spiral end mill – Diager – 4002-X0400

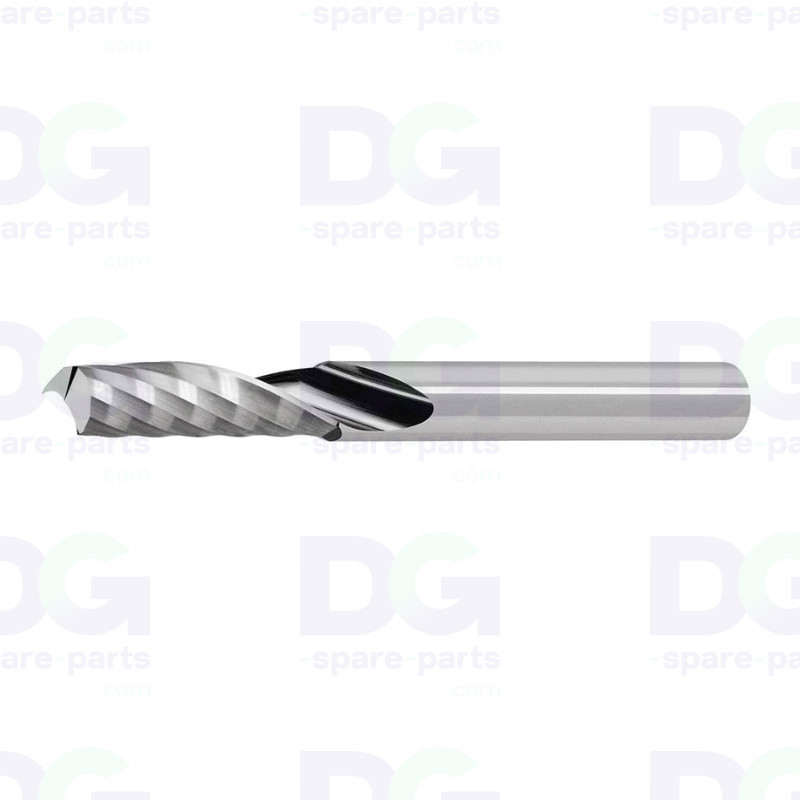

The Diager 4002-X0400 milling cutter is a solid carbide cutting tool, specifically developed for machining and cutting non-ferrous metals and aluminium composite panels on CNC routers, router machines or digital cutting table milling modules.

It features a single-tooth left-hand helix (downcut) geometry and a short cutting edge, an ideal configuration for holding the material in place during machining, achieving a clean top edge and minimising the lifting of thin sheet metal or composite panels. The tool’s special coating allows for dry machining without lubrication, whilst maintaining the cutting edge’s longevity.

Supplied as a single tool (without a shank), it fits any tool holder with a standard Ø6 mm shank. For Zünd cutting tables requiring a shanked cutter, please refer to version 4002-X0400-B.

Technical specifications

• OEM reference: 4002-X0400
• Manufacturer: Diager Industrie (France)
• Tool type: Solid carbide cutter, 1 short tooth, left-hand helix (downcut), coated

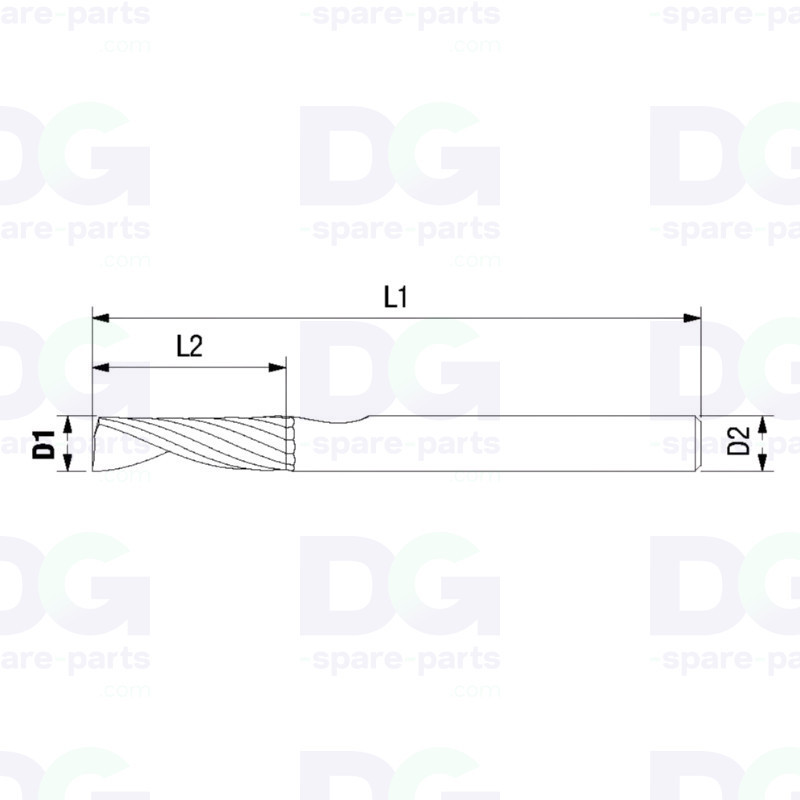

• Cutting diameter (D1): 4.0 mm
• Shank diameter (D2): 6.0 mm (reinforced shank)
• Cutting length (L2): 6.0 mm
• Overall length (L1): 50.0 mm
• Number of teeth (Z): 1
• Tool material: Tungsten carbide with special coating
• Machining method: Dry, without lubrication
• Delivery: Tool only, standard version without shank

Compatibility and use

• CNC routers and routers fitted with a tool holder or Ø6 mm collet
• Milling/router modules on digital cutting tables compatible with Ø6 mm shank tools without collars
• Machines for machining aluminium composite panels with a high-frequency spindle
• Version compatible with Zünd tables (with collar): part number 4002-X0400-B

Function

• Milling and cutting of aluminium, brass and copper using dry machining
• Precise cutting of Dibond© aluminium composite panels (ACM and TAC) for signage, POS displays and cladding
• Downward chip evacuation via the left-hand spiral (downcut) to press the material down and ensure a clean cut edge
• Production of contoured edges, short grooves and precision cuts in non-ferrous metals
• Lubrication-free machining thanks to the coating, ideal for clean production environments

Possible signs of wear

• Burrs, fraying or edge deformation on aluminium and Dibond© cuts
• Appearance of built-up edges and chip jamming in the flute
• Abnormal tool heating, irregular cutting noise or increased vibrations
• Loss of dimensional accuracy on machined parts and deterioration of surface finish
• Chipping of the coating, edge chipping or tool breakage during machining

Regular replacement of the 4002-X0400 cutter maintains the quality of cuts on aluminium composite panels, the dimensional accuracy of machined parts and operator safety during production.
