Diager® 4013--0500C milling cutter

Zünd-type single-tooth carbide cutter – Diager® 4013--0500C – Ø5 mm

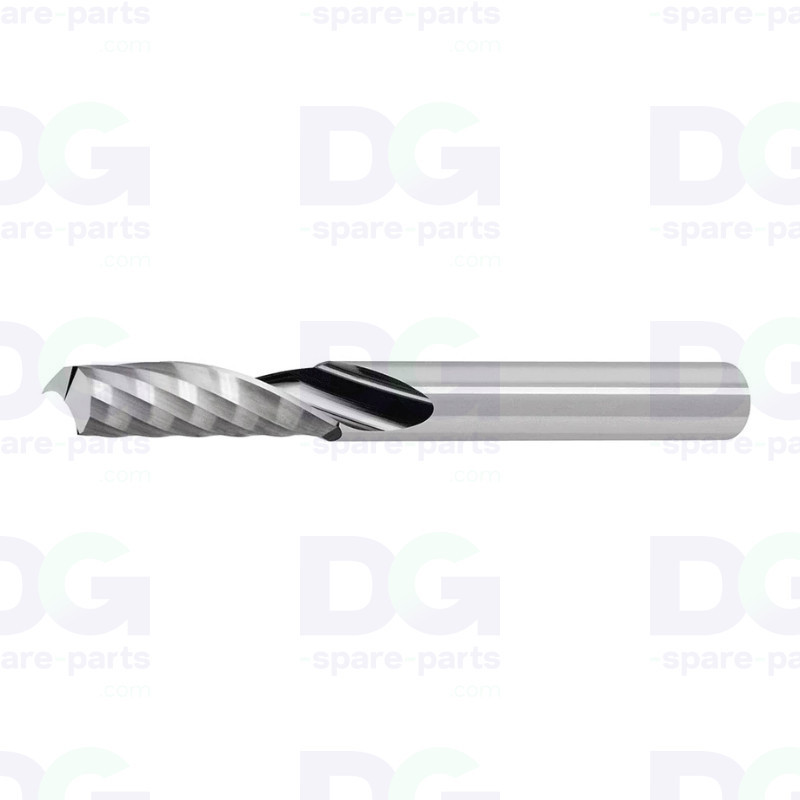

The Diager® 4013--0500C single-flute, right-hand-helix solid carbide cutter is a rotary cutting tool designed for Zünd digital cutting tables equipped with a milling module (RM). It is a direct replacement for part number TPS ER65.1 and fits standard Zünd spindles without modification.

Its upcut geometry (right-hand helix) ensures that chips are discharged upwards, limiting material build-up in the cut. The smooth, polished flute reduces built-up edge, guaranteeing a consistent surface finish and optimised tool life on plastics, wood and composites.

The integrated positioning ring (shank Ø6 mm, Zünd standard) ensures quick and repeatable mounting without additional gauge adjustment, in accordance with the specifications of Zünd RM tool holders.

Technical specifications

• Manufacturer’s reference: 4013--0500C
• Manufacturer: Diager®
• Type: 1-tooth cutter, right-hand helix (Zünd type)
• Cutting diameter: Ø5 mm
• Shank diameter: Ø6 mm (standard for Zünd machines)
• Number of teeth: 1
• Cutting direction: Upcut – chips discharged upwards
• Tool material: Solid carbide
• Equivalent part number: TPS ER65.1
• Application: Digital cutting tables – contour milling and grooving

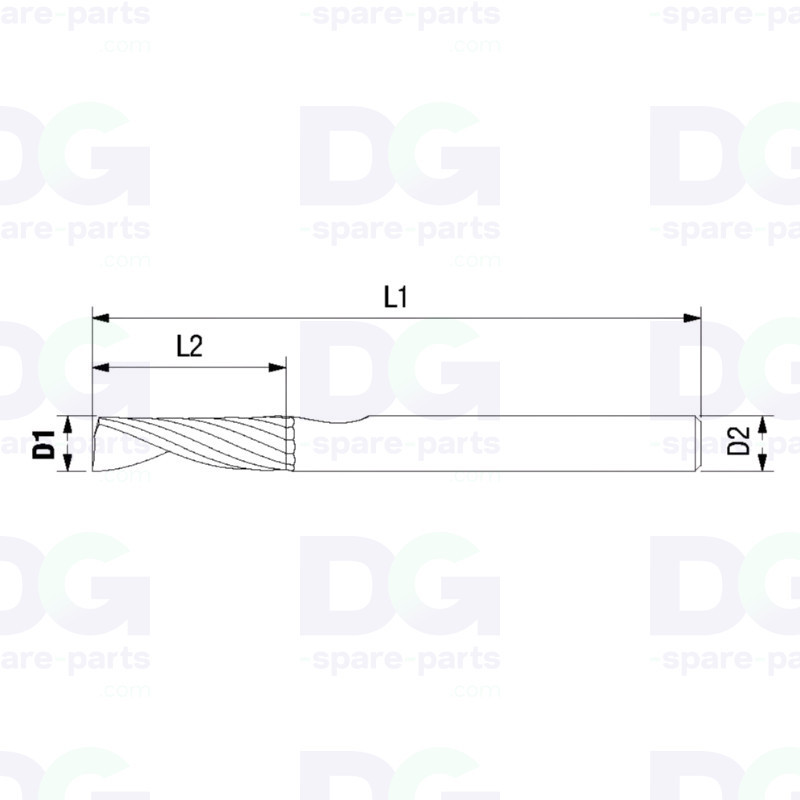

Dimensions (in mm)

• D1: 5
• D2: 6
• L1: 60
• L2: 22

Compatibility and use

• Zünd G3 / S3 – Router Module (RM / RM-L)
• Direct equivalent to TPS ER65.1 – replacement without modification

Function

• Cutting and milling precise contours in semi-rigid plastics, PVC, foams and wood
• Efficient upward chip removal to maintain a clean cut
• Creation of grooves, mortises and profile cuts on a Zünd digital table
• Optimised surface finish thanks to the smooth, polished groove (reduction of the built-up edge)

Possible signs of wear

• Significant burrs on the cut edges or material tear-outs
• Deterioration of surface finish: burn marks, vibration marks, abnormal roughness
• Accumulation of molten material in the cut (burn-through)
• Inaccurate path or noticeable play on the spindle axis
• Altered cutting noise or unusual vibrations during machining

Regular replacement of the Diager® 4013--0500C cutter ensures cutting quality and protects the RM module spindle from the mechanical stresses associated with a worn tool.
