R114 Spiral Cutter – Zünd – Part No. 3910764

The Zünd R114 helical cutter (ref. 3910764) is a solid carbide milling tool mounted on the Routing Module of Zünd digital cutting tables. It enables clean cuts and milled contours to be produced in rigid materials used in signage and stand construction.

Its single-tooth helical geometry (1 cutting edge) efficiently directs chips upwards and minimises material overheating. The 4 mm cutting diameter and 12 mm cutting length ensure a clean edge finish on composite panels, wood, MDF and PVC foam, without tearing or scorching.

Supplied as a single tool, the R114 fits directly into the Ø6 mm collet of the Zünd milling module. It is a standard consumable for workshops that regularly use the table in routing mode and work with composite, cellular or wood materials.

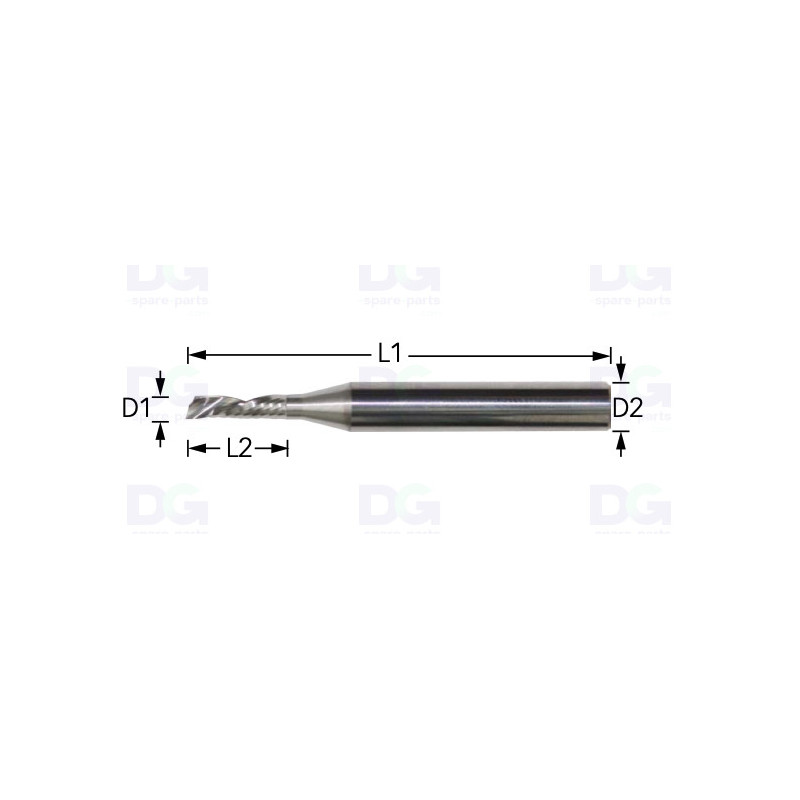

Technical specifications

• OEM reference: 3910764 (R114)
• Manufacturer: Zünd
• Tool type: Spiral router bit
• Number of teeth: 1 (1 cutting edge)
• Cutting diameter (D1): 4 mm
• Shank diameter (D2): 6 mm
• Overall length (L1): 50 mm
• Cutting length (L2): 12 mm
• Maximum rotational speed: 46,600 rpm
• Machinable materials: Forex (expanded PVC), MDF, wood, Dibond (aluminium composite panel)
• Delivery: tool only, ready to be mounted on the router module
• Application: Zünd milling module – cutting and milling of rigid panels

Compatibility and use

• Zünd cutting tables equipped with the RM-A or RM-L router module
• Zünd G3 series
• Zünd S3 series
• Zünd D3 series
• Zünd L3 series
• Any Zünd machine compatible with Ø6 mm shank cutters from the R series

Function

• Contour milling and cutting of rigid signage panels
• Removing chips upwards thanks to the helical geometry (up-cut)
• Ensure a clean cut in composite and honeycomb materials (Dibond, Forex)
• Machining MDF and wood without burning the cut edge
• Enable precise passes for signage components, 3D lettering and POS displays

Possible signs of wear

• Frayed or torn cut edges on Forex and MDF
• Appearance of scorch marks (blackening) on wood panels
• Burrs and residue stuck to the material at the exit on Dibond
• Abnormal noise and vibrations from the milling module during operation
• Excessive heating of the cutter and the material
• Visible deterioration of the cutting edge or chipping at the tool tip

Replacing the R114 as soon as these symptoms appear ensures cutting quality, protects the Zünd milling module and minimises material breakage on high-value-added panels.
