M004868 – Solvent Resistant Pump

M004868 – Solvent Resistant Pump (S Pump L Assy) for Mimaki printers

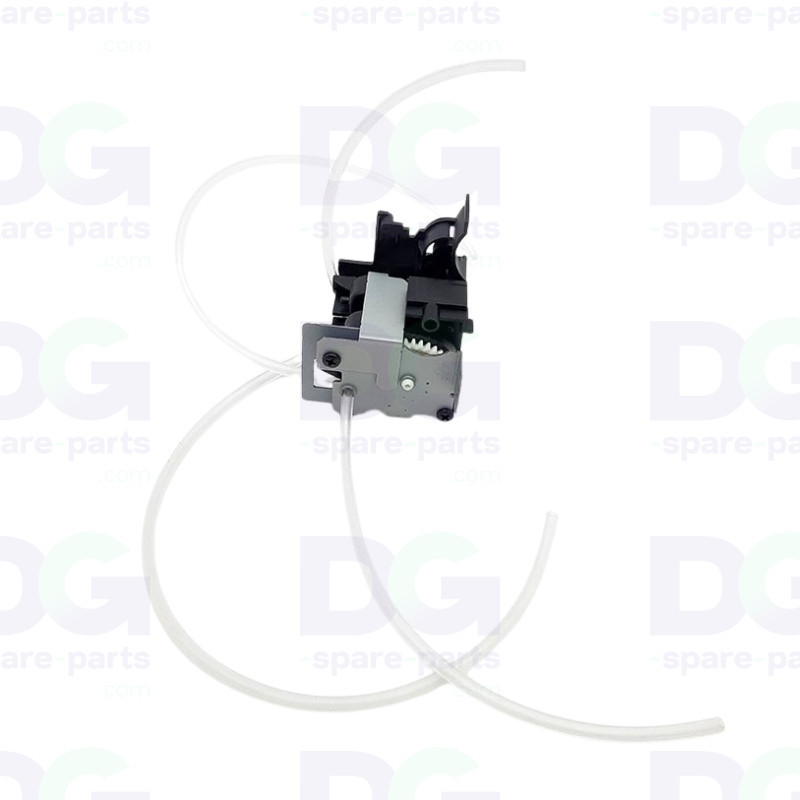

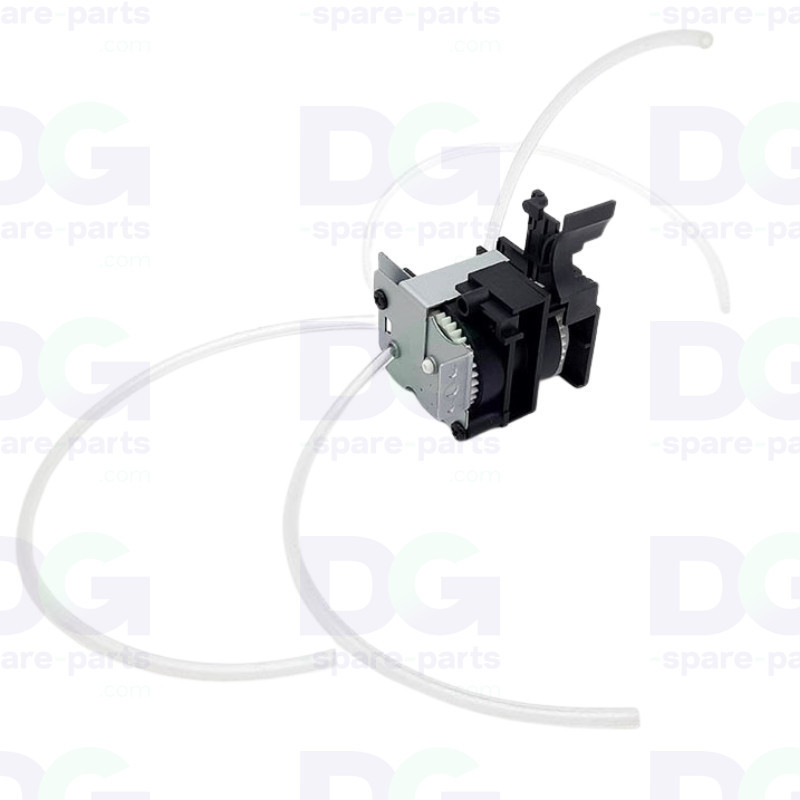

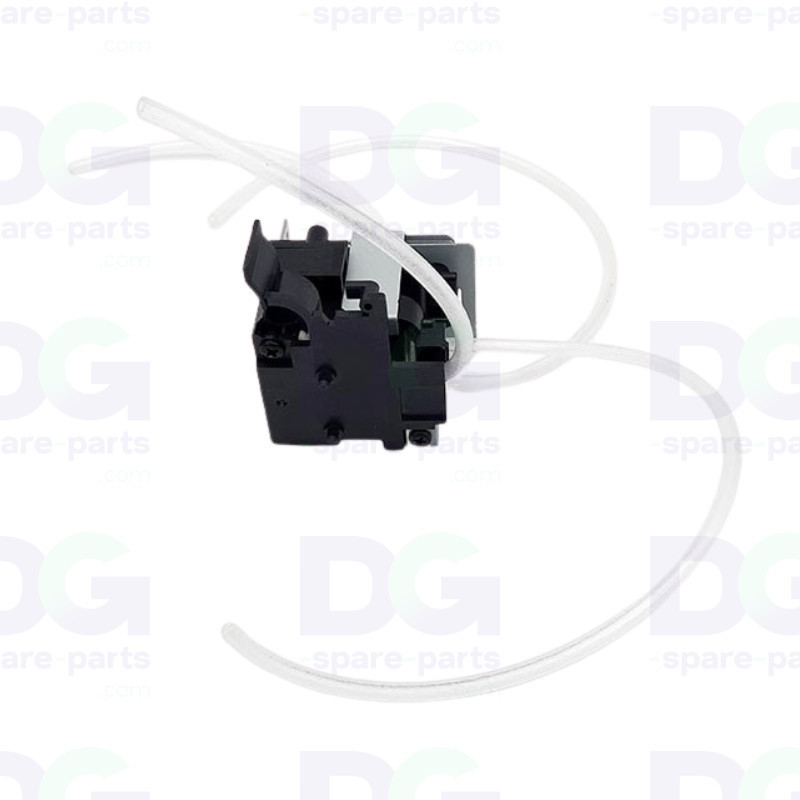

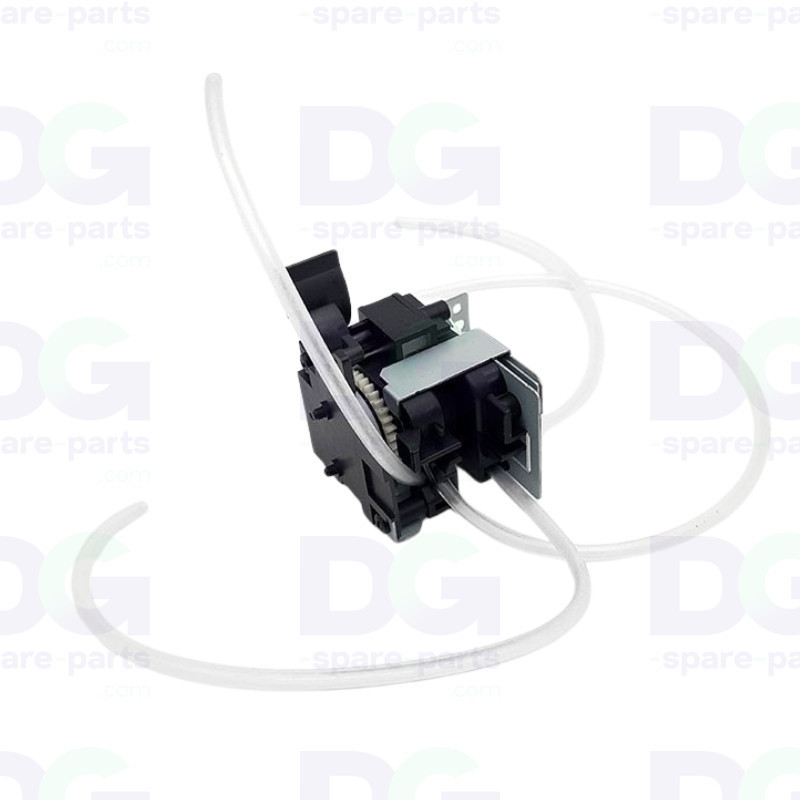

The M004868 Solvent Resistant Pump, also known as the S Pump L Assy, is a pump used in the maintenance system of Mimaki solvent and eco-solvent large format printers.

This pump sucks up ink and solvents during print head cleaning cycles and allows liquids to be drained into the waste ink system.

It is designed with a solvent-resistant Norprene tube, ensuring excellent compatibility with the eco-solvent and mild-solvent inks used in Mimaki printers.

Technical specifications

• Manufacturer reference: M004868
• Technical name: S Pump L Assy
• Type: Solvent Resistant Ink Pump
• Tube material: Solvent-resistant Norprene
• Tube length: approx. 70 cm
• Approximate dimensions: 60 × 60 × 50 mm
• Weight: ~75 g
• Function: Suction pump for maintenance station

Function in the printer

• Suction of ink during cleaning cycles
• Evacuation of used ink to the waste system
• Maintains proper functioning of the maintenance station
• Contributes to the longevity of the print heads

Compatibility with Mimaki printers

• Mimaki CJV30-60 / CJV30-100 / CJV30-130 / CJV30-160
• Mimaki JV3-130 / JV3-160 / JV3-250
• Mimaki JV33-130 / JV33-160 / JV33-260
• Mimaki JV34-260
• Mimaki JV5-130 / JV5-160 / JV5-260 / JV5-320
• Mimaki TS3-1600
• Mimaki TS34-1800A
• Mimaki TS5-1600AMF
• Mimaki TS500-1800
• Mimaki PV-90 / PV-130
• Mimaki TPC-1000

Possible symptoms in the event of failure

• Ineffective head cleaning
• Ink accumulation in the maintenance station
• Cleaning system error
• Recurring clogged nozzles
• Insufficient suction flow

Replacing the M004868 pump restores proper operation of the maintenance system and ensures effective cleaning of the print heads.
