3010120967 – UV lamp power supply (Power Supply UV Lamp, 300/360 GT/XT) – Canon Océ Arizona

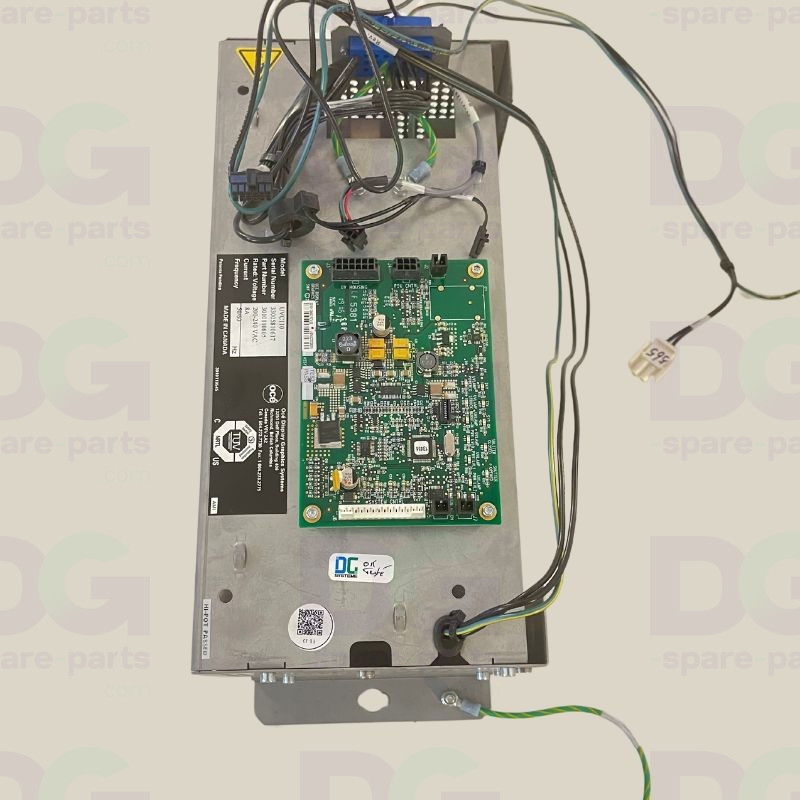

The 3010120967 UV lamp power supply (Power Supply UV Lamp) is fitted to Canon Océ Arizona 300/360 GT/XT printers (and Fujifilm Acuity Advance HD).

It provides the electrical power needed by the UV lamp system and ensures a stable supply. A failing supply causes cut-outs and stops.

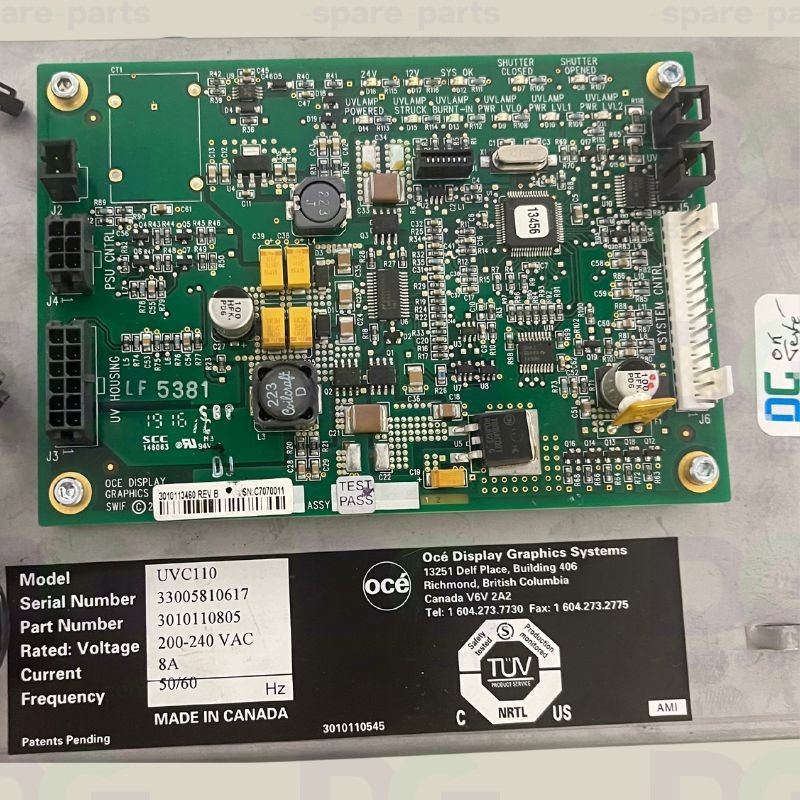

The rating plate of this power supply shows the model UVC110, Part Number 3010110805 and a 200-240 VAC, 8 A, 50/60 Hz input. It carries a control board labelled 3010113460 REV B, whose indicators report the status of the UV lamp and the shutter.

Technical specifications

• OEM reference: 3010120967
• Brand: Canon Océ
• Part type: UV lamp power supply
• Shipping: Shipped ready to install
• Power supply manufacturer: Océ Display Graphics Systems (made in Canada)
• Model (rating plate): UVC110
• Part Number (rating plate): 3010110805
• AC input: 200-240 VAC; 8 A; 50/60 Hz
• Control board: 3010113460 REV B
• Board connectors: J3 UV HOUSING, J4 PSU CNTRL, J6 SYSTEM CNTRL
• Board indicators: 24V, 12V, SYS OK, SHUTTER CLOSED, SHUTTER OPENED, UVLAMP POWERED, UVLAMP STRUCK, UVLAMP BURNT-IN, UVLAMP PWR LVL0, UVLAMP PWR LVL1, UVLAMP PWR LVL2

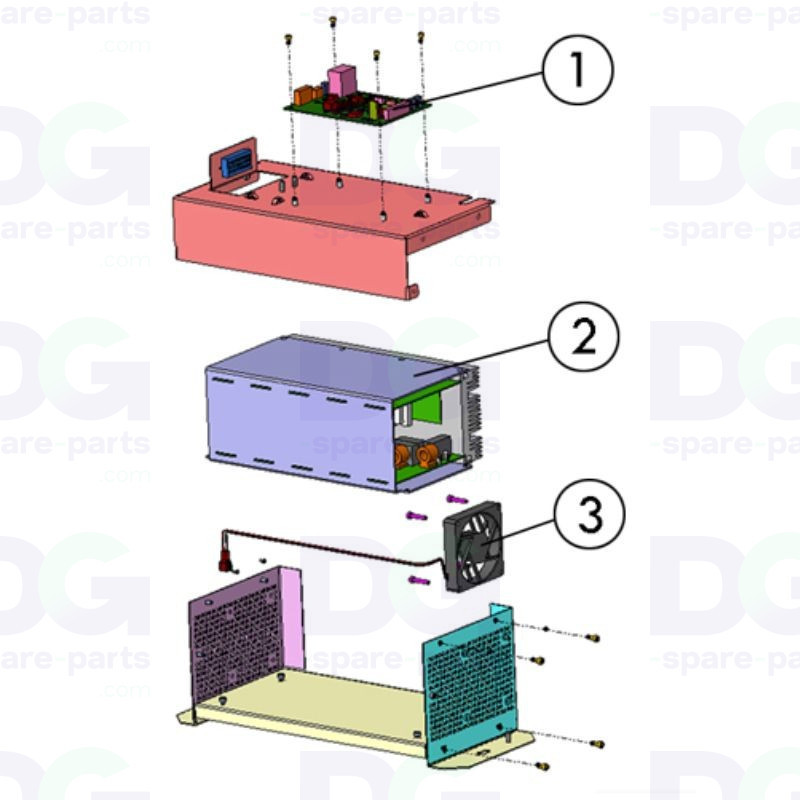

• Composition (exploded view): Electronic board, module with heat sink and fan, in a chassis
• Note: 3010113460 is the reference of the control board fitted to this power supply; 3010110805 is the one read on its rating plate.

Compatibility & use

• Canon Océ Arizona 3xx
• Fujifilm Acuity

Function

• Provides the electrical power to the UV lamp system
• Ensures a stable and regulated supply
• Key component of the correct UV curing operation

Signs of wear

• Machine not powered
• Cut-outs or restarts
• Supply instability
• Unexpected stops

Replacing this part restores the machine to proper working order.

Equivalent references: 3010110805 · 3010107082 · 3010113483

Related parts: 3010113460 (control board fitted on the unit) · 3010109060 (UV cooling fan) · 3010113484 (UV power supply control board)
