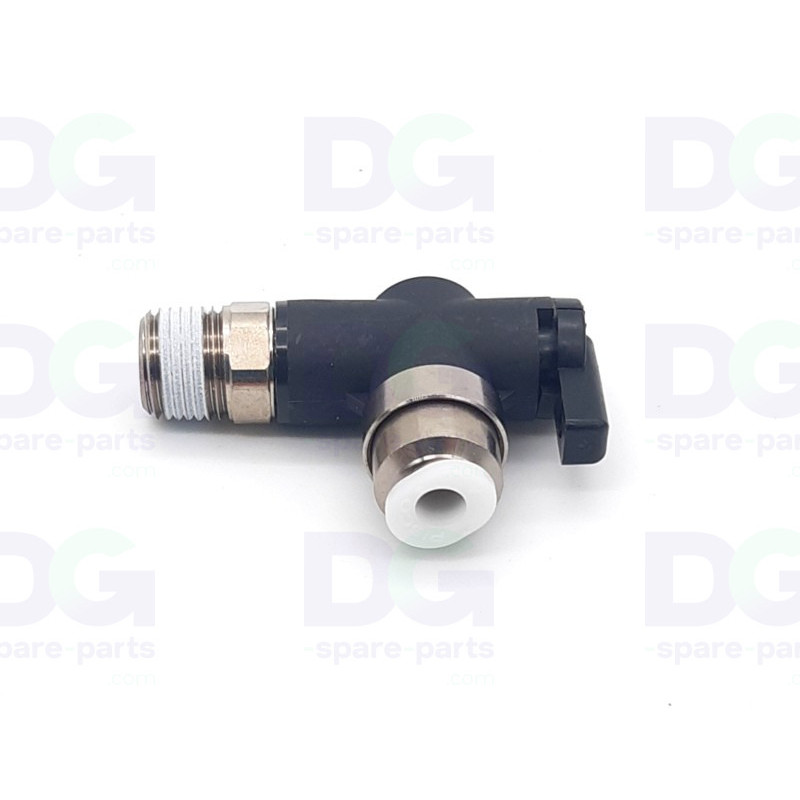

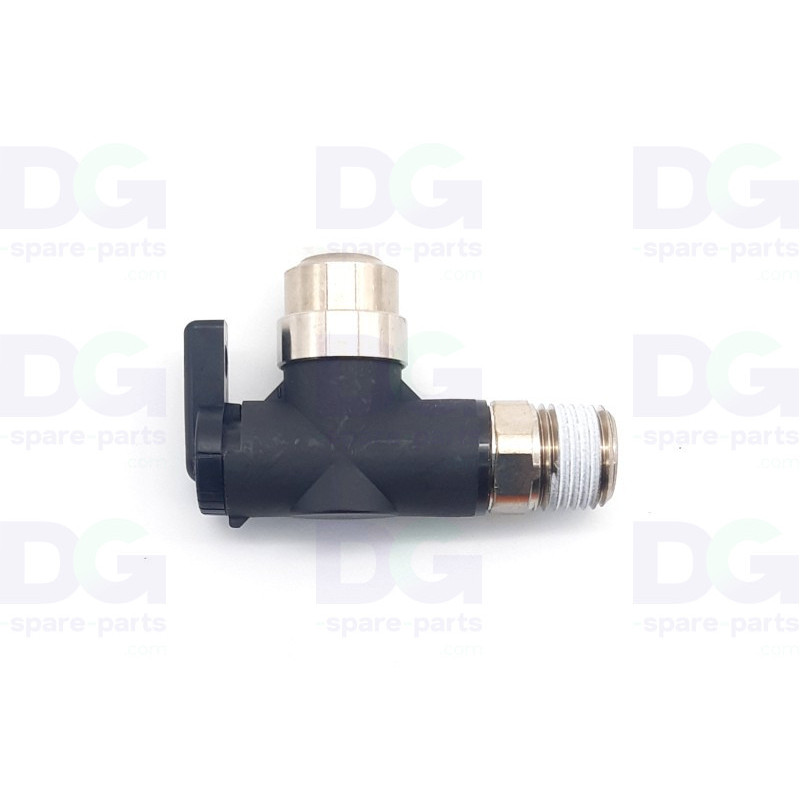

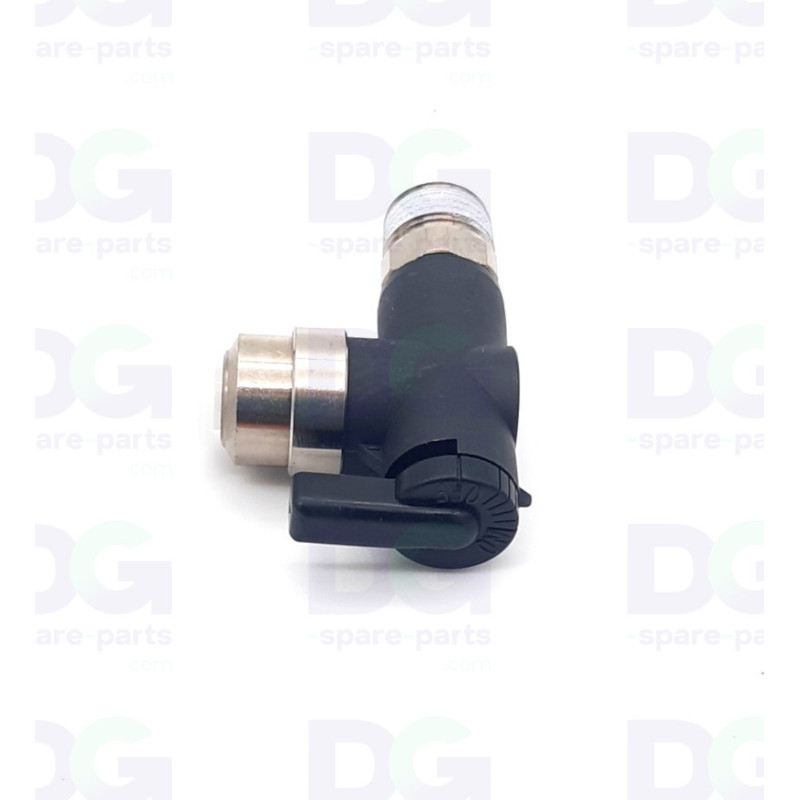

3010104464 - FTG-Valve 1/8NPT To 5/32OD

3010104464 – Fitting valve 1/8 NPT to 5/32 OD – Canon Océ Arizona

The 3010104464 fitting valve (FTG-Valve 1/8NPT To 5/32OD) is fitted to Canon Océ Arizona and Fujifilm Acuity printers.

It provides a sealed connection between a 1/8 NPT threaded circuit and a 5/32" OD flexible tube on ink or maintenance-fluid circuits, allows quick connection of a fluid line and seals the circuit at the connection point. A worn fitting causes leaks and air ingress.

Technical specifications

• OEM reference: 3010104464
• Manufacturer: Canon Océ
• Part type: Fitting valve (1/8 NPT to 5/32 OD)
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 2xx
• Canon Océ Arizona 3xx
• Canon Océ Arizona 5xx
• Canon Océ Arizona 12xx
• Fujifilm Acuity

Function

• Provides a sealed connection between a 1/8 NPT threaded circuit and a 5/32" OD flexible tube on ink or maintenance-fluid circuits
• Allows quick connection of a fluid line (ink, solvent, air)
• Seals the fluid circuit at the connection point, limiting leaks and air ingress

Signs of wear

• Leaks at the fitting
• Air ingress in the circuit
• Pressure drop
• Unsealed connection

Replacing this part restores the machine to proper working order.
