3010109550 - swissQprint Oryx UV Lamp Housing, Left (Without Lamp)

3010109550 – Left UV lamp housing (without lamp) – SwissQprint Oryx 1 / Arizona

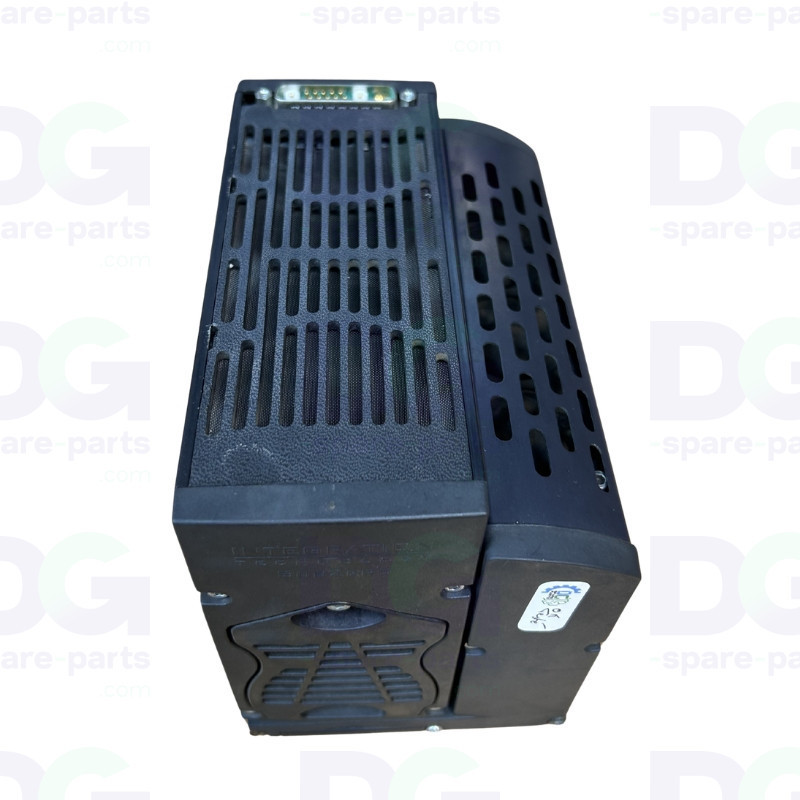

The left UV lamp housing (ref. 3010109550) is a mechanical/protective component of the UV curing system on the SwissQprint Oryx 1 large-format UV printer. It holds, protects and positions the UV lamp on the left side of the carriage.

It is supplied without UV bulb: it replaces a damaged, deformed or worn housing while keeping the other functional parts of the existing UV system. Removed and checked from a SwissQprint Oryx machine.

Interchangeability Oryx and Arizona: the left UV lamp housing of the SwissQprint Oryx and that of the Océ Canon Arizona 2xx/3xx series are the same component. An Arizona housing (ref. 3010109550) can be fitted on a SwissQprint Oryx and vice versa, with no mechanical adaptation — confirmed by workshop teardown.

Technical specifications

• OEM reference: 3010109550 (equiv. 3010105466, 401075, 401029, 401861)
• Manufacturer: Océ / Canon
• Part type: UV lamp housing (left, mechanical)
• Side: Left of the UV carriage
• Supplied: Housing only, without UV bulb
• Condition: Used, checked
• Compatible lamp: SubZero 085 Bulb Kit A – ref. 401825 (sold separately)
• Interchangeability: Same part on SwissQprint Oryx and Océ Arizona 2xx/3xx
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 2xx
• Canon Océ Arizona 3xx
• Fujifilm Acuity
• SwissQprint Oryx 1

Function

• Mechanically holds the left-side UV lamp
• Thermal and mechanical protection of the curing system
• Precise positioning of the lamp facing the printed media
• Supports the lamp reflection and cooling elements

Signs of wear

• Deformed, cracked or overheated housing
• Poor lamp positioning and uneven UV curing
• Mechanical play or vibration as the carriage passes
• Abnormal heating of the lamp area

The housing is supplied without UV bulb; the compatible lamp is the SubZero 085 Bulb Kit A (ref. 401825), sold separately. Replacing the housing restores correct lamp hold and protection for even curing. Fitting recommended by a qualified technician.
