3010113841 - Assy P/S UV System 170mm (excluding PCB 3010113484)

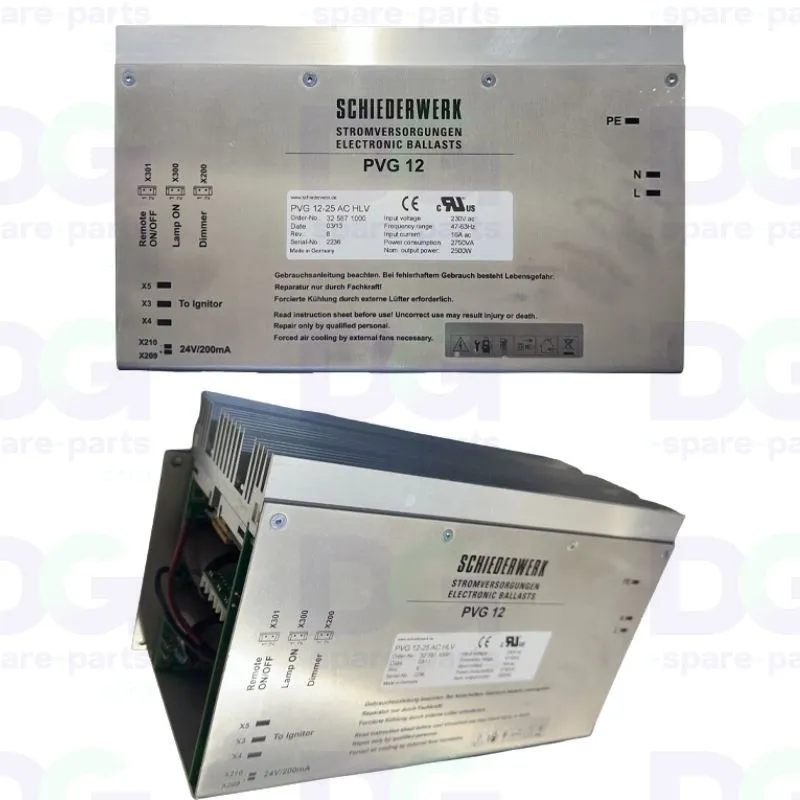

3010113841 – UV system power supply 170mm, without PCB (Assy P/S UV System 170mm) – Canon Océ Arizona / Fujifilm Acuity Advance

The 3010113841 UV system power supply 170mm (Assy P/S UV System 170mm) is fitted to Canon Océ Arizona 550/660 and Fujifilm Acuity Advance flatbed printers.

It supplies and controls the UV mercury-arc lamp (170mm) mounted on the carriage. It is sold without the PCB SWIF 1.2kW (ref 3010113484), so a working board can be reused. A failing supply prevents the UV lamp from lighting.

Technical specifications

• OEM reference: 3010113841
• Manufacturer: Canon Océ
• Part type: UV system power supply (170mm lamp, without PCB SWIF 1.2kW)
• UV lamp format: 170 mm
• Sold without: PCB SWIF 1.2kW (ref 3010113484)
• Rated power: 1.2 kW (full system with PCB)
• Lamp type: UV mercury arc (UV ink curing)
• Origin: genuine Canon Océ / Fujifilm (OEM)
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 5xx
• Canon Océ Arizona 6xx
• Fujifilm Acuity

Function

• Supplies the high-voltage power to light and keep the UV mercury-arc lamp
• Controls the power delivered to the 170mm UV lamp
• Ensures the instant curing of the UV inks
• Protects the UV lamp against surges at the lighting cycles

Signs of wear

• UV lamp not lighting or going out during production
• Uncured or tacky UV inks
• Unstable UV power / finish variations
• UV supply error or thermal protection tripped

Replacing this part restores the machine to proper working order.
