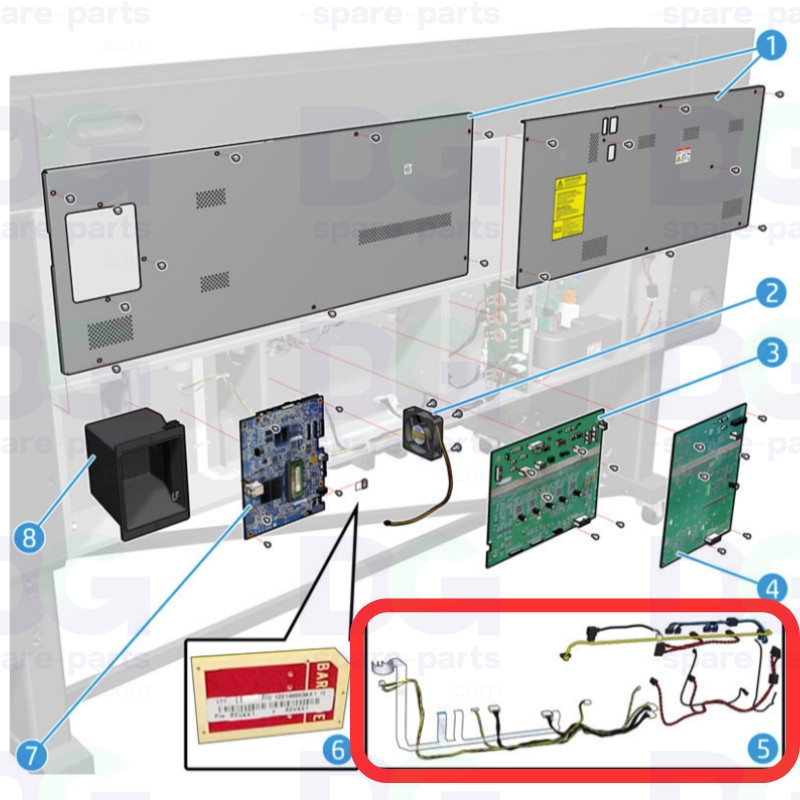

E-Box Cables – HP Latex 630 (171S2-67018)

The E-Box Cables (171S2-67018) link the boards inside the electronics box (E-Box) on the HP Latex 630 and 630W wide-format printers.

A genuine HP (OEM) part, supplied ready to install.

Technical specifications

• OEM reference: 171S2-67018
• Manufacturer: HP
• Part type: E-Box cables
• Shipping: Shipped ready to install
• Machine compatibility: HP Latex 630 and 630W
• Location: electronics box (E-Box)
• Composition: kit of 18 cables (see list below)
• Weight: 1.4 kg
• Delivery: complete kit, ready to fit
• Origin: genuine HP part (OEM)

Cables included in the kit

• 171S2-50018 — Olympus AC power cable to PSU
• 171S2-50036 — Chopin fan cable
• B4H70-60055 — NTC temperature sensor
• Y0U21-50047 — SORAN power cable
• Y0U21-50067 — AC distribution cable to Prelude 1
• Y0U21-50071 — Curing board data cable to Chopin
• Y0U21-50072 — Curing board sine interface cable to Chopin
• Y0U21-50115 — External power cable, power board to Printmech
• Y0U21-50116 — Main data cable, power board to Printmech
• Y0U21-50117 — Main power cable, power board to Printmech
• Y0U21-50119 — PSU to Formatter extension cable
• Y0U21-50121 — Drying board cable
• Y0U21-50147 — Power inlet to AC distribution cable
• Y0U21-50180 — Formatter to power board control cable
• Y0U21-50210 — Engine to Mech cable (main valve)
• Y0U21-50211 — Engine to Mech cable (main valve)
• Y0U21-50212 — Engine to Mech cable (external valve)
• Y3T75-50062 — PSU to Formatter control extension

Compatibility & use

• HP Latex 6xx

Function

• Carries the signals / power between the boards
• Links the E-Box electronics
• Keeps a reliable connection
• Original cable for a correct fit

Signs of wear

• Lost signal or power
• Board not communicating
• Broken wire or connector
• Intermittent faults

Checked part, ready to fit.
