PCBA GEN4 PIXEL BOARD - 45110742

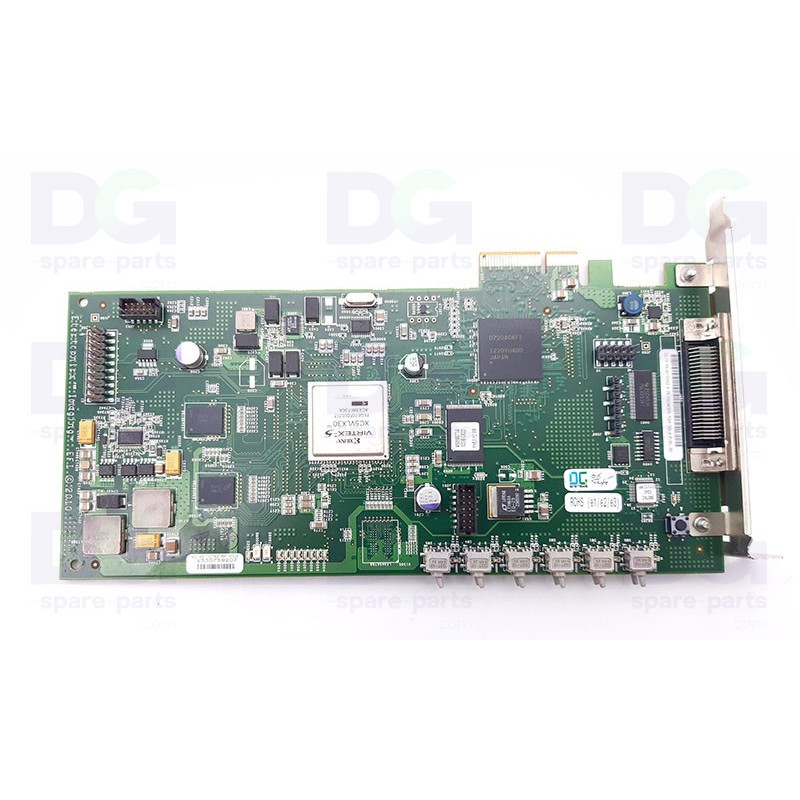

45110742 – GEN4 pixel board (PCBA GEN4 Pixel Board) – VUTEk QS Pro

The 45110742 GEN4 pixel board (PCBA GEN4 Pixel Board) is fitted to VUTEk QS2 Pro and QS3 Pro printers.

It processes and transmits the pixel data to the printheads for the generation of the image. A failing board causes image defects and missing pixels.

Technical specifications

• OEM reference: 45110742
• Manufacturer: Vutek (Efi)
• Part type: Pixel data board (GEN4)
• Shipping: Shipped ready to install

Compatibility & use

• VUTEk QS2 Pro
• VUTEk QS3 Pro

Function

• Processes and transmits the pixel data to the heads
• Ensures the faithful generation of the image
• Key component of the head drive chain

Signs of wear

• Image defects or missing pixels
• Missing lines when printing
• Head data errors
• Erratic behaviour

Replacing this part restores the machine to proper working order.
