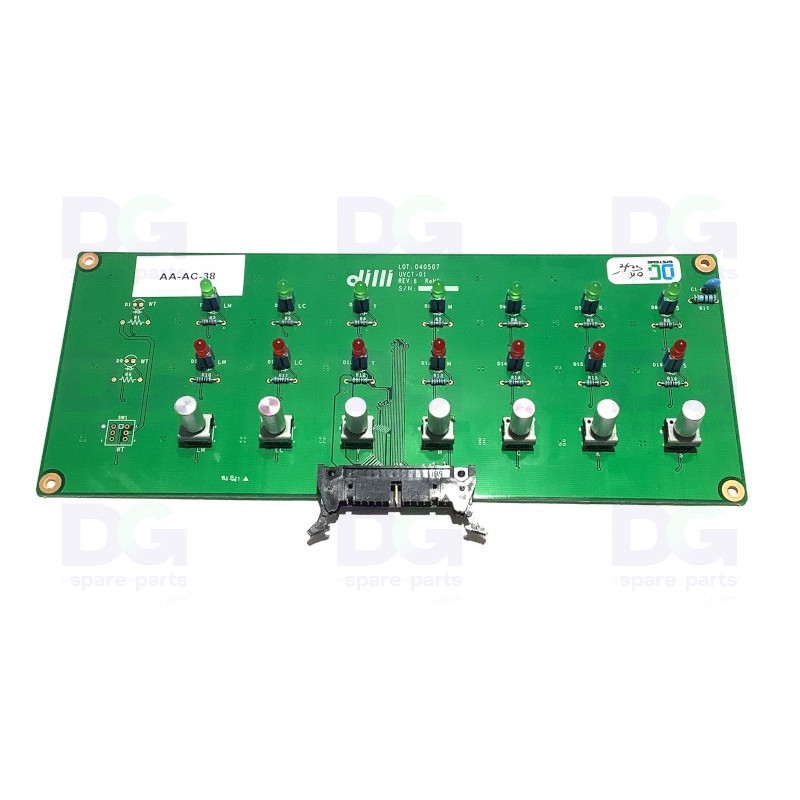

7500602-0003 - Control Board (7Color) DILLI

7500602-0003 – 7-colour control board (Control Board 7 Colors, Dilli) – Agfa Anapurna M / Mv

The 7500602-0003 7-colour control board (Control Board 7 Colors, Dilli) is fitted to Agfa Anapurna M and Mv printers (Dilli-built).

It manages the control of the 7 colour channels and passes the signals to the main board. A failing board leaves a channel uncontrolled.

Technical specifications

• OEM reference: 7500602-0003
• Manufacturer: Agfa
• Part type: 7-colour control board (Dilli)
• Shipping: Shipped ready to install

Compatibility & use

• Anapurna M
• Anapurna Mv

Function

• Ensures the electronic control of a sub-system
• Passes the signals to the main board
• Acts as an interface between the firmware and the hardware

Signs of wear

• Sub-system not driven
• Electronic errors
• Loss of internal communication
• Erratic behaviour or machine stops

Replacing this part restores the machine to proper working order.
