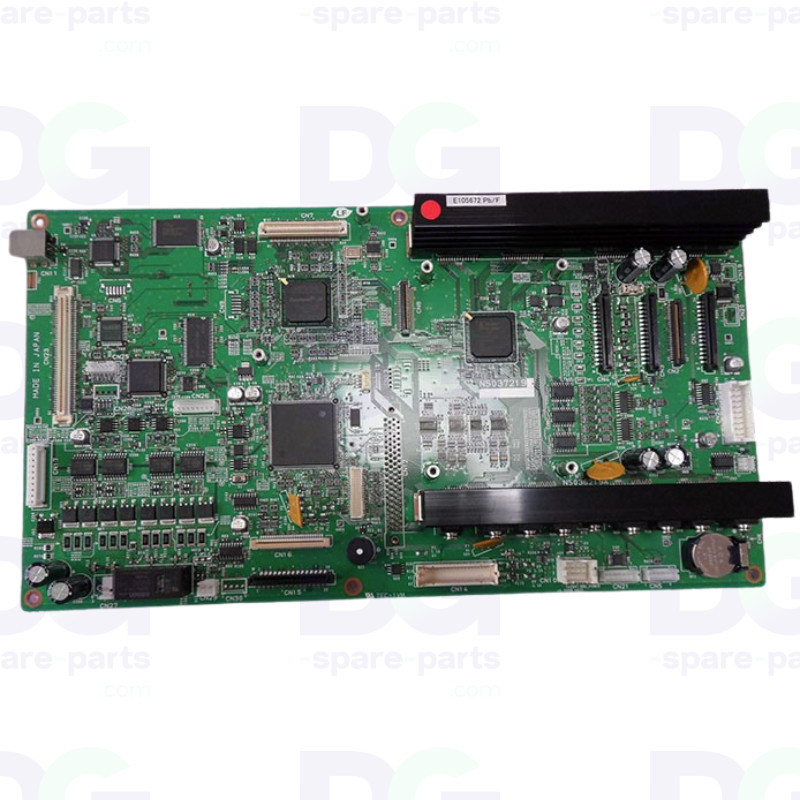

M011425 - JV33 Main PCB Assembly

M011425 – JV33 main board – Mimaki JV33

The JV33 Main PCB Assy — ref. M011425 — is the main electronic board used in Mimaki JV33 series printers.

It manages the machine electronic system centrally and coordinates the motors, sensors, secondary boards and printheads. Genuine Mimaki part (M011425), replacing the earlier references E104853, E105997 and E106578.

Important: this main board is not compatible with the Mimaki JV33BS, which needs the board M011426.

Technical specifications

• OEM reference: M011425 (replaces E104853, E105997, E106578)
• Manufacturer: Mimaki (OEM)
• Part type: Main board (JV33)
• Replaces: E104853, E105997, E106578
• Not compatible with: Mimaki JV33BS (needs board M011426)
• Shipping: Shipped ready to install

Compatibility & use

• Mimaki JV33
• Mimaki TS3

Function

• Manages the printer electronic system
• Handles the communication between the internal modules
• Controls the motors and sensors
• Transmits the data to the printheads

Signs of wear

• Machine start-up problems
• Electronic errors
• Several modules malfunctioning
• Loss of communication between components

Replacing this part restores the machine to proper working order.
