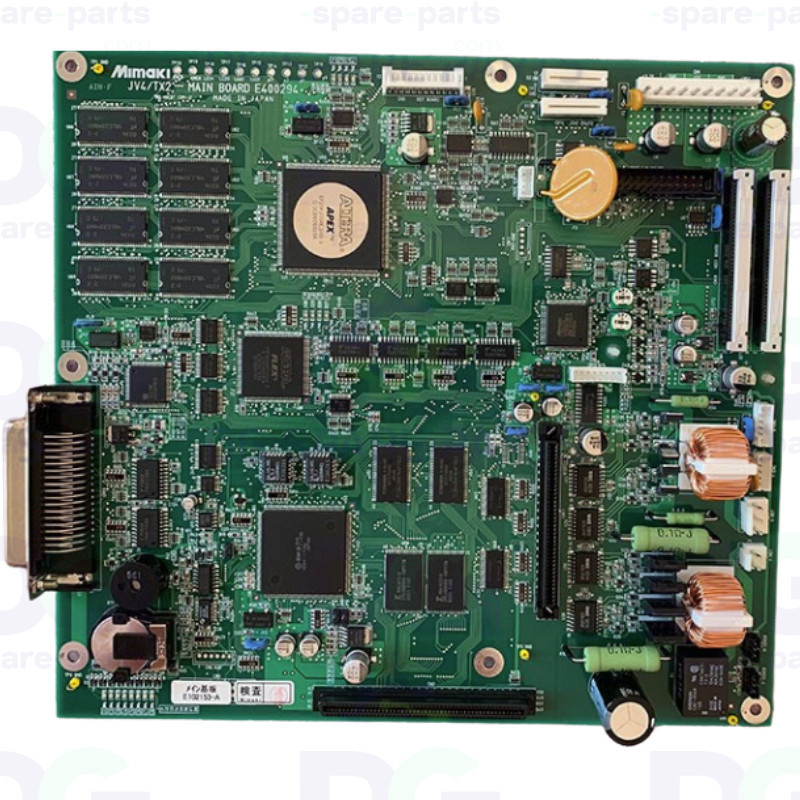

MAIN PCB ASSY - E102153

E102153 – Main board (Main PCB) – Mimaki JV4

The E102153 main board (Main PCB Assy) is fitted to Mimaki JV4 and TX2 printers.

It controls all the machine electronic functions, handles the print-data processing and the communication with the boards, and stores the firmware. A failing board prevents start-up.

Technical specifications

• OEM reference: E102153
• Manufacturer: Mimaki
• Part type: Main board
• Shipping: Shipped ready to install

Compatibility & use

• Mimaki JV4
• Mimaki TX2

Function

• Controls all the machine electronic functions
• Handles the print-data processing and the communication with the boards
• Stores the firmware and distributes the control signals

Signs of wear

• Machine no longer starts
• General system errors
• Print jobs not processed
• Loss of communication

Replacing this part restores the machine to proper working order.
