Blade Summa 390-534 - compatible

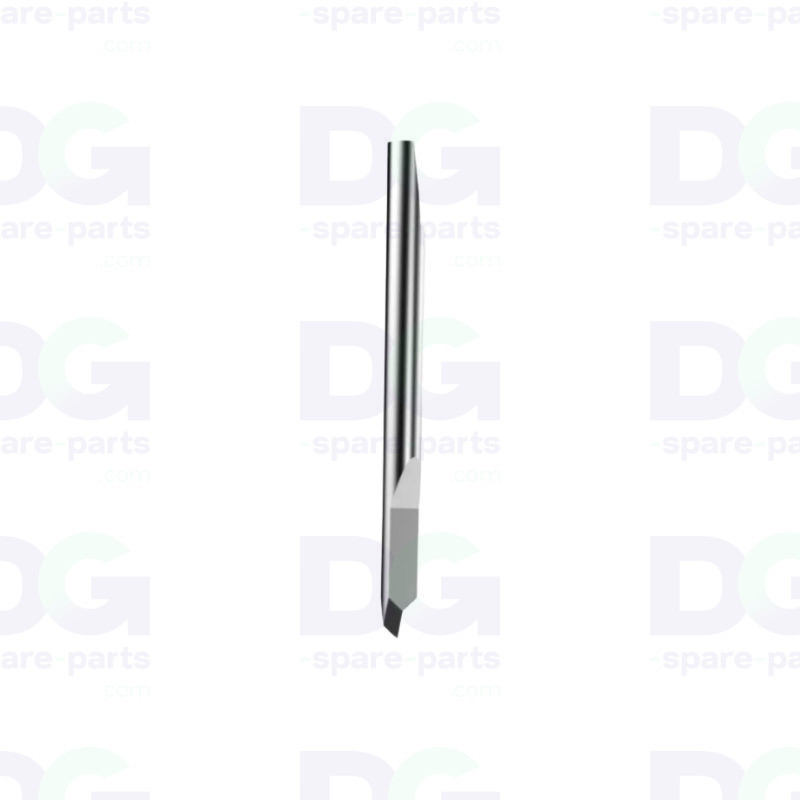

Blade Tangentielle Carbide Diager 390-DIA-534 – Summa 390-534

The tangential blade carbide Diager 390-DIA-534 (ref. Summa 390-534) is ae cutting blade specially designed for the outils tangentiels of the Summa plotters. It ensures a cutting half-cut and full-cut precise of the vinyls adhésifs, with a contrôle rigoureux of the profondeur of cut.

Thanks to à its angle of cut of 36° and its tige Ø2,5 mm, the 390-DIA-534 guarantees of the coupes nettes for a weeding facile. The conception tangentielle allows to the plotter of contrôler in permanence l'orientation of the blade, assurant of the coupes précises in the courbes and the géométries complexes.

With a profondeur of cut maximale of 0,25 mm and a length of 31 mm, this blade couvre a great variété of vinyls : adhésif standard, réfléchissant, of fenêtre, bannière PVC and materials magnétiques.

Technical specifications

• Diager reference : 390-DIA-534 (ancienne ref. 31446)
• Summa reference : 390-534
• Manufacturer : Diager Industrie
• Type : Tangential blade – carbide monobloc
• Diamètre of tige (Ø) : 2,5 mm
• Cutting angle : 36°
• Max cutting depth (Ap) : 0,25 mm
• Length totale : 31 mm
• Mode of cut : Mi-chair and full-cut
• Application : Cutting and weeding of vinyls adhésifs on Summa plotters

Compatibility and use

• Plotters of cutting tangentiels Summa – tool reference 390-534

Function

• Cutting half-cut precise of the adhesive vinyl for weeding facile
• Cut full-cut of vinyls réfléchissants, of fenêtre and of sablage
• Cutting of materials of bannière in PVC adhésif
• Cut of materials magnétiques and of tissus polyester
• Contrôle tangentiel of l'orientation blade for coupes courbes précises

Possible symptoms of wear

• Cutting half-cut incomplète rendant l'weeding difficult
• Perçage of the liner during of the coupes full-cut
• Bords of cut irréguliers or frayed on vinyl réfléchissant
• Dérive of trajectory in the tight curves
• Pression of cut excessive nécessitant a recalibration fréquente

The replacement of the blade 390-DIA-534 restaure the precision of cut tangentielle on the Summa plotters and guarantees a weeding propre on all the gamme of the vinyls adhésifs.

♻️ DG Spare Parts – European specialist in spare parts for wide-format printers and plotters.
