3110241 - X-drive steel belt 3753mm long +0, -1, 60mm wide

3110241 – X-drive steel belt (3753 mm × 60 mm) – Zünd M-1600 / LR-1600

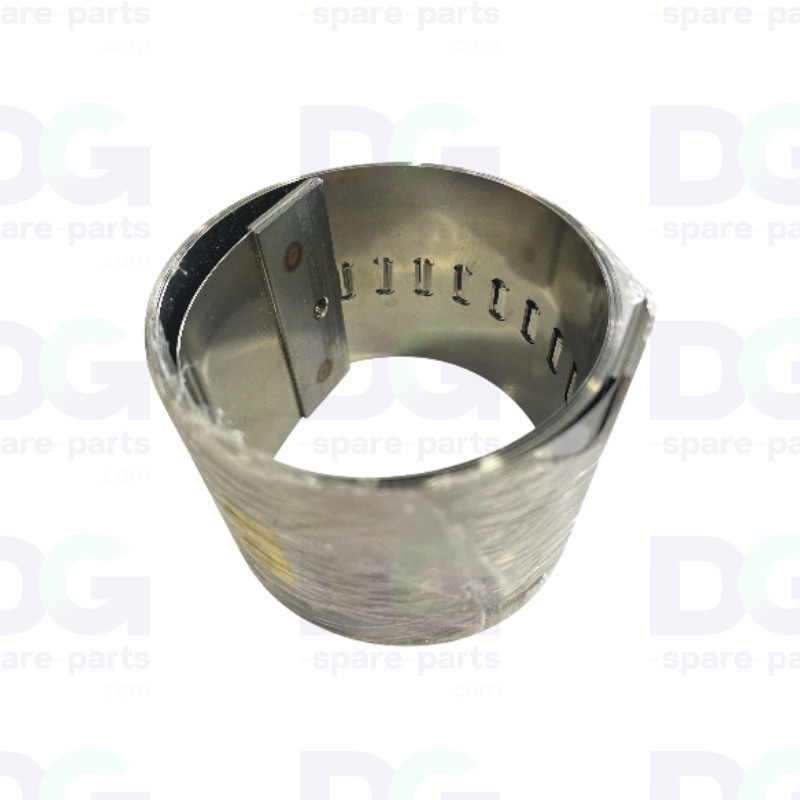

The X-Drive steel belt (ref. 3110241) is the transmission element for the longitudinal (X-axis) travel of the cutting carriage on Zünd M-1600 and LR-1600 digital cutting tables.

Made of steel with a strict +0 / -1 mm length tolerance, it ensures optimal positioning accuracy over the whole travel. Any length deviation can cause cutting errors and premature drive-system wear.

At 3753 mm long and 60 mm wide, it meets Zünd OEM specification and is a direct replacement with no mechanical modification of the frame.

Technical specifications

• OEM reference: 3110241
• Manufacturer: Zünd (OEM)
• Part type: X-drive steel belt
• Length: 3753 mm (tolerance +0 / -1 mm)
• Width: 60 mm
• Material: Steel
• Axis: X — longitudinal travel of the cutting carriage
• Shipping: Shipped ready to install

Compatibility & use

• Zund PN LR
• Zund PN M

Function

• Transmits the motorised movement to the cutting carriage on the X axis
• Keeps the longitudinal positioning accuracy over the whole table length
• Withstands the repeated loads of the carriage acceleration/deceleration cycles
• Ensures repeatable cutting paths thanks to its low elasticity

Signs of wear

• Offset or imprecise cuts in the longitudinal (X) direction
• Vibration or jolts during carriage travel
• Abnormal noise during drive (clacking, friction)
• X-axis positioning error/alarm on the Zünd controller
• Visible belt wear: fraying, deformation, residual stretch

Replacing the X-Drive steel belt with the Zünd OEM part 3110241 immediately restores cutting accuracy and prevents damage to the X-axis drive system.
