CR Belt Assy - DG-43002

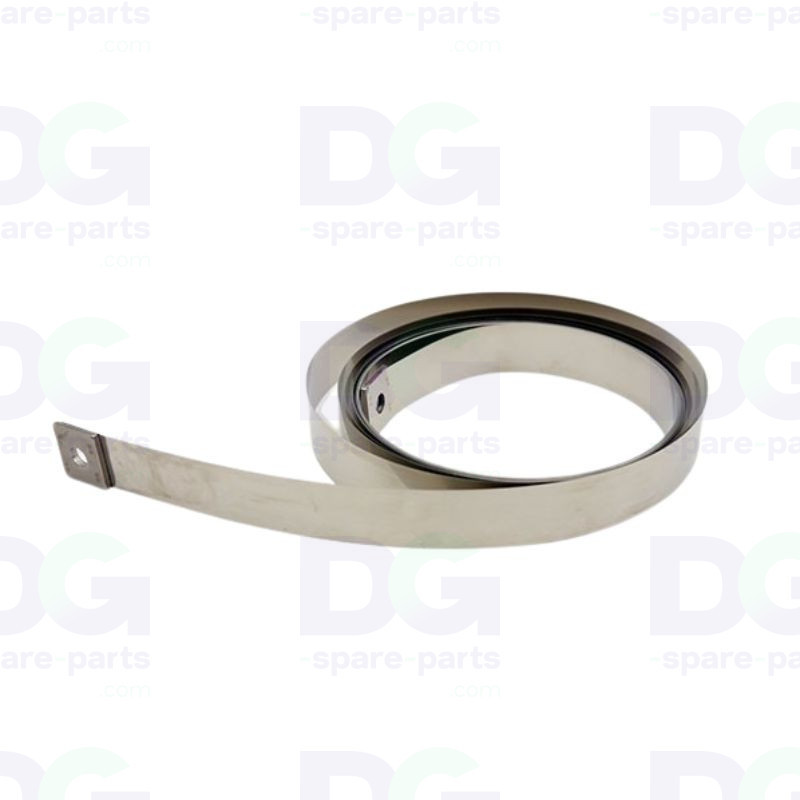

CR Belt Assembly — Mutoh ValueJet 1624 / 1638 / 2638 — DG-43002

The CR Belt Assy (ref. DG-43002) is the steel carriage belt fitted to Mutoh ValueJet 64-inch wide-format printers. It connects the drive motor to the carriage and ensures its precise movement across the entire print width.

Made from flexible steel, this belt offers superior rigidity and dimensional stability compared to a conventional toothed belt. Its length of 4755 mm and width of 15 mm allow for drive operation without stretching or play, ensuring precise carriage positioning even at high speeds.

A genuine Mutoh part, the CR Belt Assy should be replaced in the event of stretching, deformation or deterioration affecting the precision of the carriage’s movement.

Technical specifications

• OEM Part Number: DG-43002
• Type: Carriage steel belt (CR Steel Belt Assy)
• Material: Flexible steel
• Length: 4755 mm (64 inches)
• Width: 15 mm
• Axis: Y (horizontal carriage movement)
• Origin: Mutoh OEM part

Compatibility and use

• Mutoh VJ-1604X / VJ-1604WX
• Mutoh VJ-1624 / VJ-1624W / VJ-1624WX
• Mutoh VJ-1626UH
• Mutoh VJ-1627MH / VJ-1628MH / VJ-1628X
• Mutoh VJ-1638X / VJ-1638WX
• Mutoh VJ-1938WX
• Mutoh VJ-2638 / VJ-2638X
• Mutoh VJ-628X
• Mutoh XPJ series

Function

• Drives the print carriage across the entire width of the media
• Transmits the movement of the CR motor to the carriage with maximum precision
• Ensures precise positioning thanks to the rigidity of the steel (no elongation)
• Withstands rapid acceleration and deceleration in bidirectional mode
• Maintains constant tension throughout the carriage’s travel

Possible symptoms of wear

• Recurring horizontal misalignment between print passes
• Abnormal metallic noise when the carriage moves
• Noticeable vibrations in the carriage at high speed
• Unstable or impossible to maintain bidirectional alignment
• Visible signs of wear, creases or deformation on the steel belt

Replacing the CR Belt Assy restores the precision of carriage movement and positioning stability, which are essential for consistent print quality across all compatible Mutoh machines.

♻️ DG Spare Parts — European specialist in spare parts for large-format printers.
