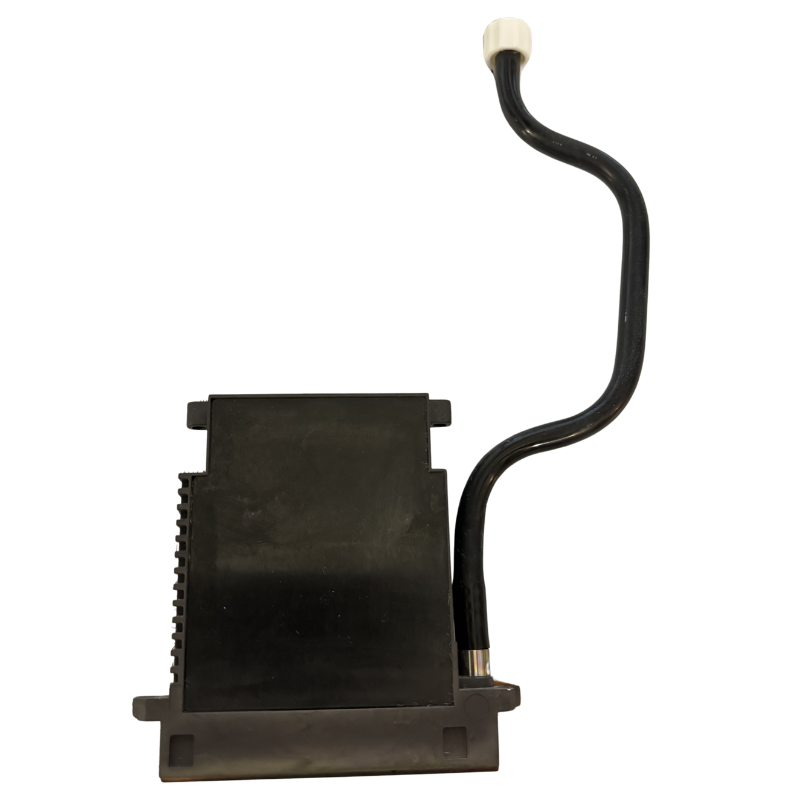

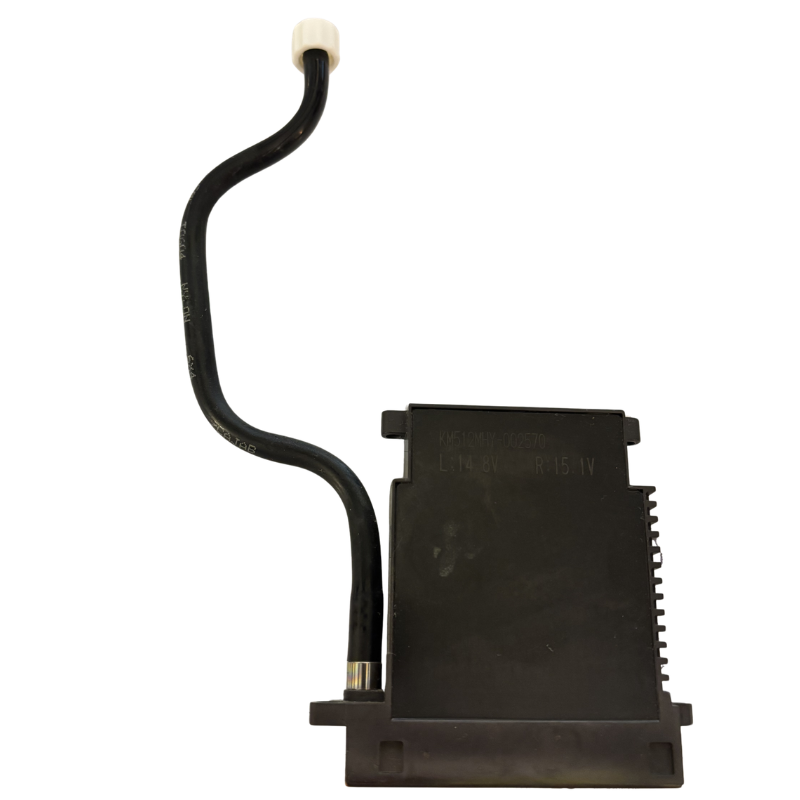

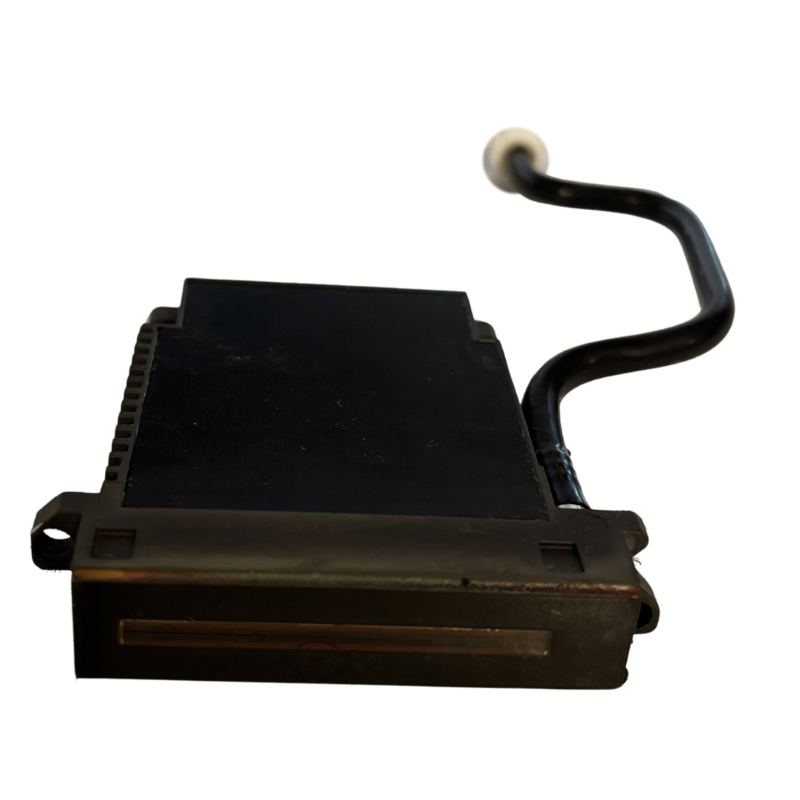

KM512MHY – Konica Minolta print head for SwissQprint Oryx 1

Presentation

The KM512MHY print head is an industrial piezo print head developed by Konica Minolta, used in several professional large-format UV printers, including the SwissQprint Oryx 1.

This print head ensures extremely precise ink drop projection onto the media, resulting in high print quality, excellent consistency and high reliability in production.

Konica Minolta KM512 series heads are widely used in industrial printers for their durability, stability and precision.

Print head function

• Projection of ink droplets onto the substrate
• Precise control of drop size and position
• Production of high-resolution images
• Maintaining print quality in industrial production

Machine compatibility

• SwissQprint Oryx 1

Technical information

• Manufacturer: Konica Minolta
• Model: KM512MHY
• Technology: industrial piezo head
• Application: large format UV printing
• Installation: print carriage

Possible symptoms in the event of failure

• Clogged or missing nozzles
• White lines in prints
• Unstable print quality
• Ink defects or irregular spraying
• Error messages related to the printing system

⚠️ Print heads are sensitive components. They must be handled and installed with care to avoid damage.

Correct replacement will restore optimal print quality and stable production.
