QS3.241 - Power Supply

Power Supply QS3.241 SwissQprint Oryx 1

The power supply (QS3.241) is fitted to SwissQprint Oryx 1, Impala and Nyala UV flatbed printers.

It provides the machine's regulated voltages. A failed supply stops the machine.

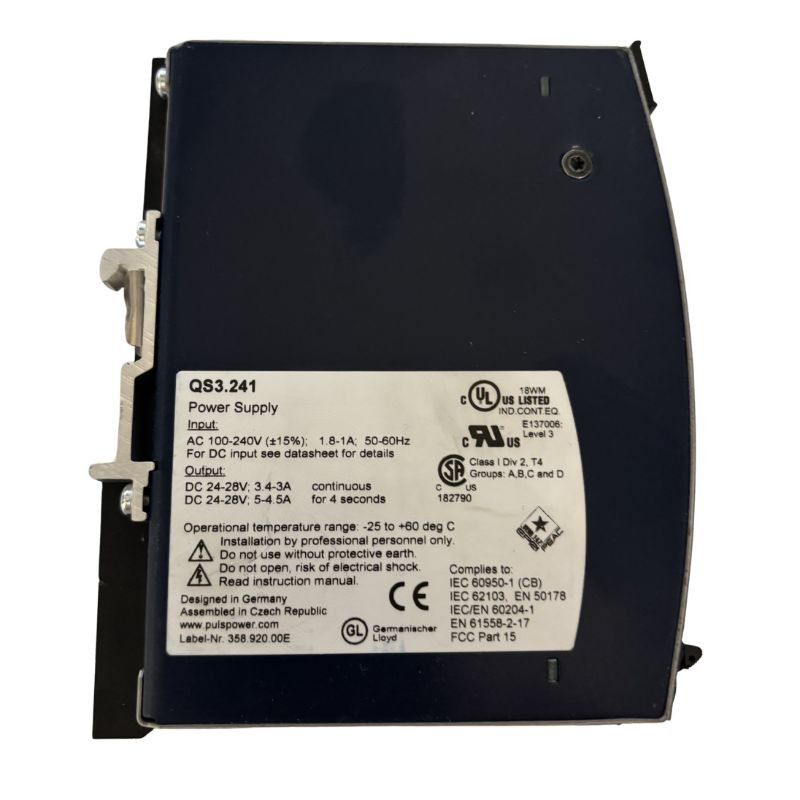

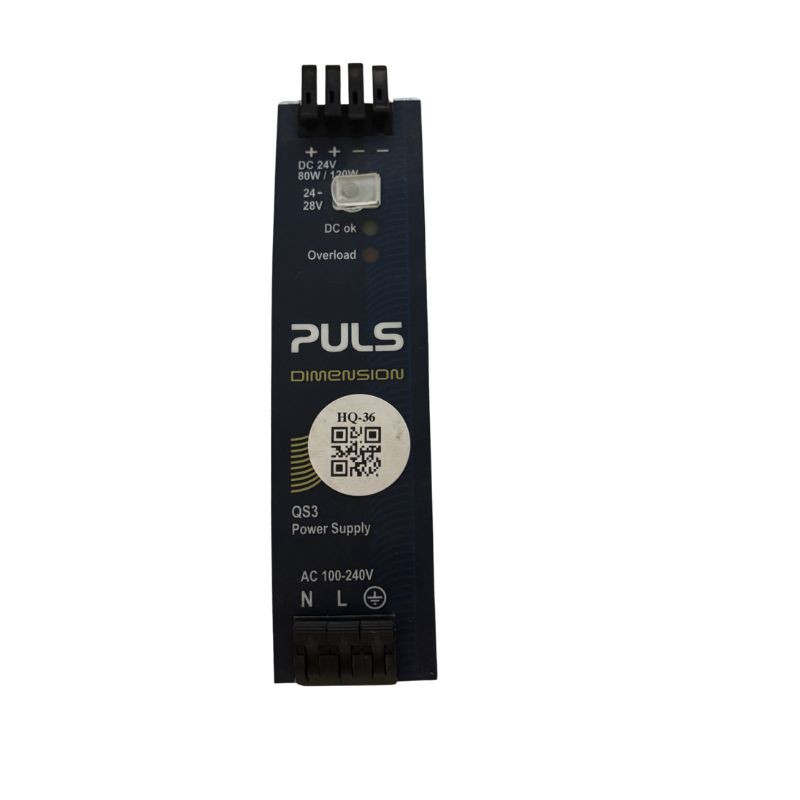

On the unit photographed, the front panel and the rating plate identify a PULS power supply from the Dimension range, QS3 series. The rating plate shows an AC 100-240 V (±15 %), 50-60 Hz, 1.8-1 A input and an adjustable DC 24-28 V output, 3.4-3 A continuous and 5-4.5 A for 4 seconds.

Technical specifications

• OEM reference: QS3.241
• Brand: swissQprint
• Part type: Power supply (QS3.241)
• Reference: QS3.241
• Shipping: Shipped ready to install
• Power supply manufacturer: PULS
• Range (front panel): Dimension, QS3 Power Supply
• AC input (rating plate): 100-240 V (±15 %), 50-60 Hz, 1.8-1 A
• DC input (PULS data sheet): 110-125 V (-20 % / +20 %)
• Continuous DC output (rating plate): 24-28 V, 3.4-3 A
• DC output for 4 seconds (rating plate): 24-28 V, 5-4.5 A
• Power (front panel): DC 24 V, 80 W / 120 W (120 W for approx. 4 s according to the PULS data sheet)
• Operating temperature (rating plate): -25 to +60 °C
• Terminals (front panel): output + + − −; input N, L and earth
• Indicators (front panel): DC ok, Overload
• Input fuse (PULS data sheet): T6A3 H.B.C., not user-replaceable
• Cooling (PULS data sheet): convection, no external fan
• Efficiency (PULS data sheet): 88.7 / 90.0 % at 120 / 230 V AC
• Dimensions and weight (PULS data sheet): 32 × 124 × 102 mm (W × H × D), 440 g
• Mounting (PULS data sheet): 35 mm DIN rail, input terminals at the bottom
• Markings (rating plate): UL Listed, CSA Class I Div 2 T4, CE, Germanischer Lloyd; IEC 60950-1 (CB), IEC 62103, EN 50178, IEC/EN 60204-1, EN 61558-2-17, FCC Part 15

Compatibility & use

• SwissQprint Impala
• SwissQprint Nyala
• SwissQprint Oryx 1

Function

• Power supply unit
• Provides the machine's regulated voltages
• Component to replace in case of failure

Signs of wear

• Red Overload indicator on and DC ok indicator off: overload (output voltage below 90 %) or short circuit at the output (PULS data sheet)
• Internal fuse blown: internal fault in the power supply, which contains no repairable parts according to the PULS data sheet
• Machine no longer powers on
• Cut-outs or restarts
• Unstable voltages
• Dead power supply

Replacing this part restores the machine to proper working order.
