2154132 - Board Assy Power Supply

2154132 – Power supply board (reconditioned) – Epson SureColor

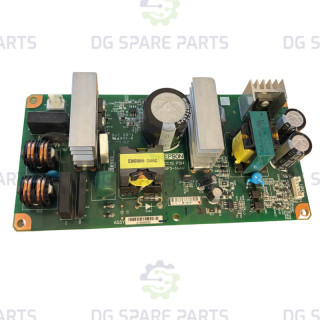

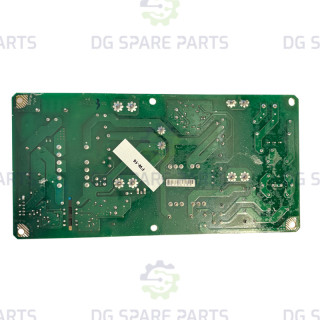

The Board Assy Power Supply 2154132 is the internal power supply board (PSU) of Epson SureColor SC-S40600/S60600/S80600 series printers and the derived SC-F9200/F9300/F9400 and SC-B9000 models.

It converts the mains supply into the regulated DC voltages needed by the main boards, motors, printheads and heating elements. It has a universal 100–240 V AC / 50–60 Hz switching input, usable on any mains without manual setting.

It replaces the earlier equivalent versions of the same module — 2188981, 2188983, 2237599. Supplied as a complete assembly, reconditioned in the workshop before dispatch. Installation is a direct replacement on the power rack, with no extra software setting.

Technical specifications

• OEM reference: 2154132
• Manufacturer: Epson
• Part type: Internal power supply board (reconditioned)
• Equivalent references: 2188981, 2188983, 2237599
• Mains input: 100–240 V AC, 50–60 Hz (universal)
• Condition: Used, reconditioned — functionally checked
• Shipping: Shipped ready to install

Compatibility & use

• Epson SureColor SC-B9000
• Epson SureColor SC-F9200
• Epson SureColor SC-F9300
• Epson SureColor SC-F9400
• Epson SureColor SC-S40600
• Epson SureColor SC-S40610
• Epson SureColor SC-S40650
• Epson SureColor SC-S40670
• Epson SureColor SC-S40680
• Epson SureColor SC-S60600
• Epson SureColor SC-S60610
• Epson SureColor SC-S60650
• Epson SureColor SC-S60670
• Epson SureColor SC-S60680
• Epson SureColor SC-S80600
• Epson SureColor SC-S80610
• Epson SureColor SC-S80650
• Epson SureColor SC-S80670
• Epson SureColor SC-S80680
• Epson SureColor SC-T3200
• Epson SureColor SC-T3250
• Epson SureColor SC-T3270
• Epson SureColor SC-T3280

Function

• Converts the mains (100–240 V AC) into regulated low DC voltages
• Powers the main board, SUB board, carriage boards and drive motors
• Supplies the heating resistors and the printheads
• Protects the electronics against overvoltage, overcurrent or short circuit
• Keeps the supply stable during high-consumption print cycles

Signs of wear

• The printer no longer powers on despite correct mains
• Incomplete start-ups or random restarts during printing
• Power or open-circuit error messages on the panel
• Faulty or uneven media heating
• Abnormal noise (whistle, click) at the internal supply
• Burnt-component smell near the supply

Replacing the 2154132 power supply board restores the printer stable internal supply and lets the machine restart at full capacity, with no risk to the other boards.
