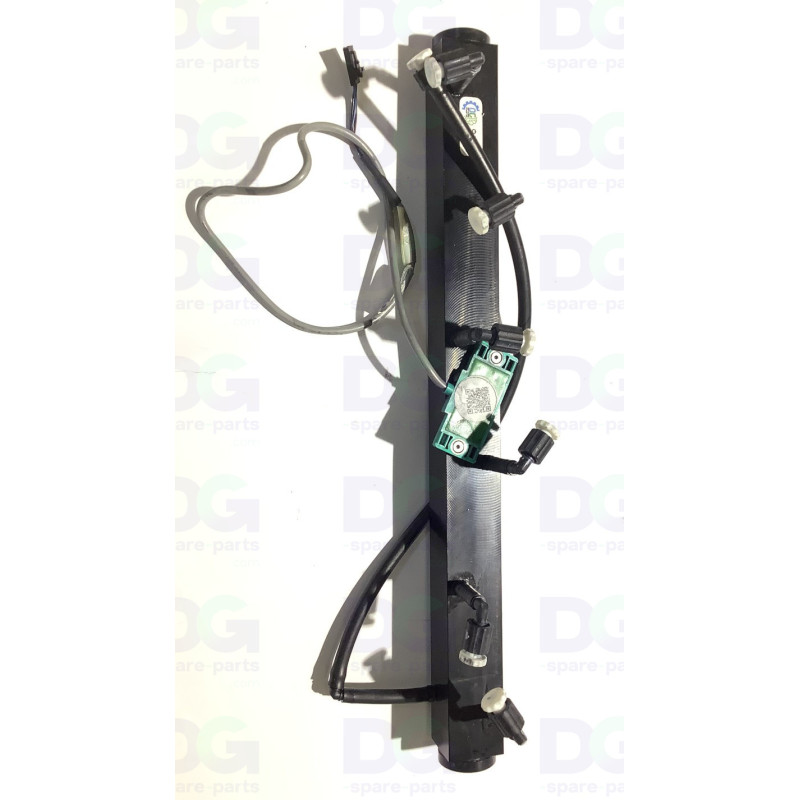

3010119514 - ASSY-INK WASTE MANIFOLD + 3010107593 SENSOR

3010119514 + 3010107593 – Waste ink manifold + sensor – Canon Océ

This waste ink manifold + sensor 3010119514 is fitted to Canon Océ Arizona and Fujifilm Acuity printers.

The manifold collects and evacuates the waste ink from the head purge and cleaning cycles; the built-in sensor (3010107593) detects the waste-ink level and sends a signal to the control board to trigger an alert or a drain. A failing set causes overflows.

Technical specifications

• OEM reference: 3010119514 + 3010107593
• Manufacturer: Canon Océ
• Part type: Waste ink manifold + sensor
• Contents: Manifold 3010119514 + sensor 3010107593
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 61xx
• Fujifilm Acuity

Function

• Collects and evacuates the waste ink from the head purge and cleaning cycles
• The built-in sensor (3010107593) detects the waste-ink level in the manifold
• Sends a signal to the control board to trigger an alert or a drain

Signs of wear

• Waste-ink overflow
• Waste-ink level poorly detected
• Wrong drain alerts
• Faulty purge

Replacing this part restores the machine to proper working order.
