3010105516 – Linear bearing, left (Arizona 360) – Canon Océ

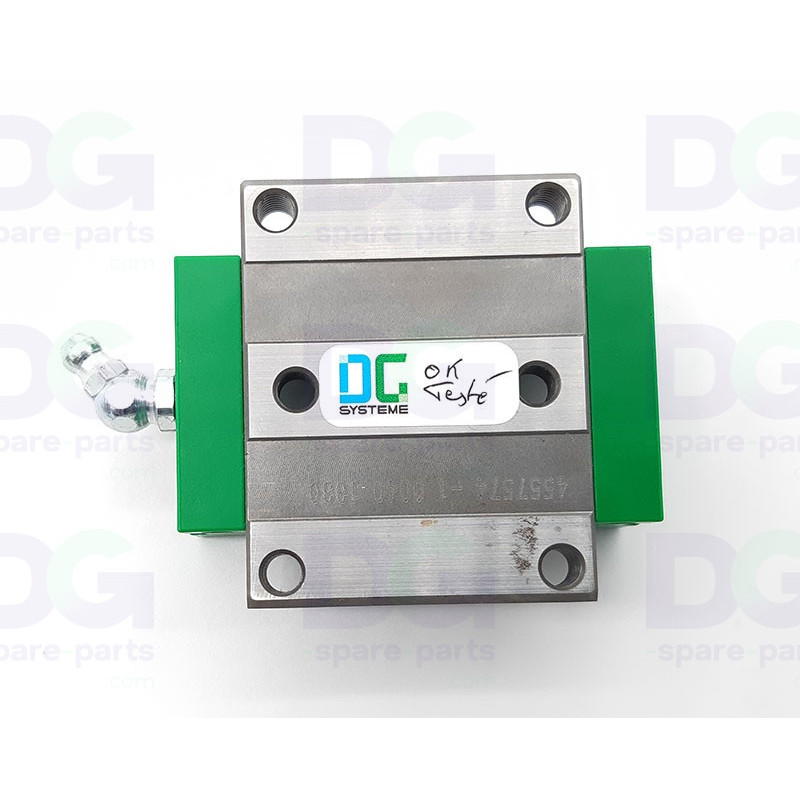

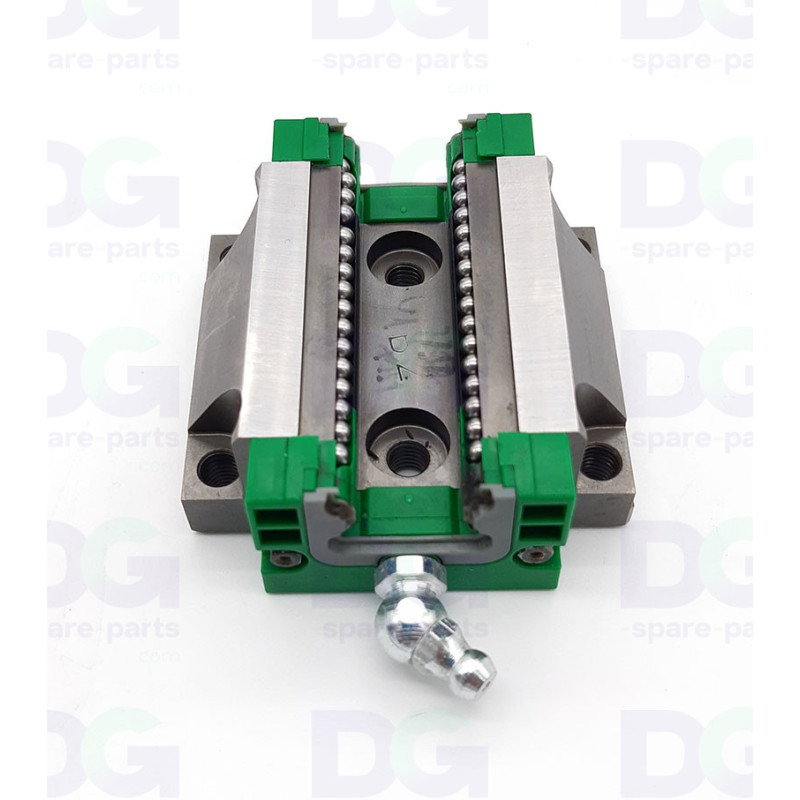

The 3010105516 linear bearing (Arizona 360 Assy Bearing Linear L) is fitted to Canon Océ Arizona and Fujifilm Acuity printers.

It guides the carriage in translation along the linear rail, reduces friction for smooth, precise movement, contributes to positioning accuracy and absorbs the loads generated by the carriage moving on the rail. A worn bearing causes play and jerky movement.

Technical specifications

• OEM reference: 3010105516
• Manufacturer: Canon Océ
• Part type: Linear bearing (left side)
• Side: Left (L)
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 2xx
• Canon Océ Arizona 3xx
• Fujifilm Acuity

Function

• Guides the carriage/axis module along the linear rail
• Reduces friction for smooth, precise movement during print passes
• Contributes to positioning accuracy and therefore print quality
• Absorbs the radial/axial loads generated by the carriage moving on the rail

Signs of wear

• Stiff or jerky movement
• Mechanical play
• Friction noise
• Loss of print accuracy

Replacing this part restores the machine to proper working order.
