3010122368 - Arizona 61xx Ink Cartridge with cable 3010122599

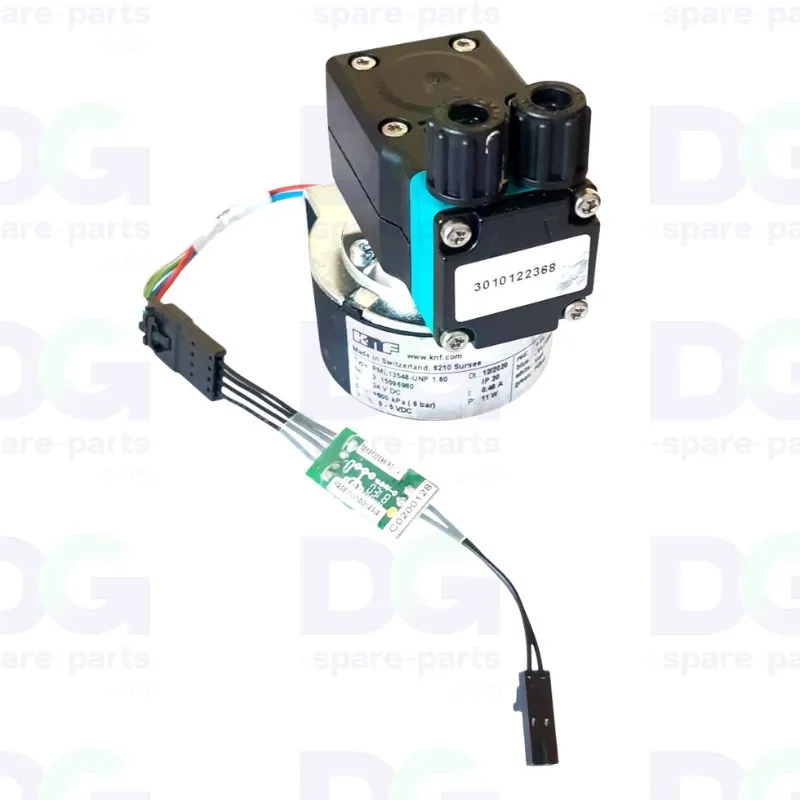

3010122368 – UV ink pump assembly with cable & 2.6V speed controller PCB (Pump Ink + cable 3010122599) – Canon Océ Arizona 6160/6170 XTS

The 3010122368 Pump Ink with cable is the complete UV ink pump assembly of the Canon / Océ Arizona 6160 XTS and 6170 XTS flatbed printers.

It ensures the UV ink circulation from the tanks to the printheads, keeping a stable flow and pressure through the whole production cycle. The set includes the connection cable and the 2.6V speed controller PCB (ref. 3010122599) that precisely drives the diaphragm pump flow. It is a genuine Océ part, a direct replacement without any change to the existing ink circuit, and must be used together with the PUMP-DIAPHRAGM LIQUID 1.60 CTRL component (sold separately).

Technical specifications

• OEM reference: 3010122368
• Manufacturer: Océ / Canon
• Part type: UV ink pump assembly (diaphragm pump + cable + speed controller PCB)
• OEM assembly reference: 3010122368
• Controller PCB reference: 3010122599 – PCB-PUMP SPEED 2.6V CONTROLLER
• Pump type: Liquid diaphragm pump (PUMP-DIAPHRAGM LIQUID)
• Control voltage: 2.6V (integrated speed controller)
• Set contents: Ink pump + cable + Speed Control PCB (3010122599)
• Required component: PUMP-DIAPHRAGM LIQUID 1.60 CTRL (sold separately)
• Condition: Genuine Océ (OEM) part
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 61xx
• Fujifilm Acuity

Function

• Transfers the UV ink from the tanks to the printheads
• Regulates the pumping speed via the 2.6V controller PCB (ref. 3010122599)
• Keeps a stable ink flow and pressure in the supply channels
• Primes the ink circuit at start-up and on machine resume
• Takes part in the head purge and cleaning cycles

Signs of wear

• Ink pressure drop with alert or machine stop
• White bands or unprinted areas from insufficient ink flow
• Repeated priming errors at start-up or after a cartridge change
• Ink leaks at the pump block, cable or circuit fittings
• Unstable or uncontrolled pumping speed due to a controller PCB fault

Replacing this part restores the machine to proper working order.
