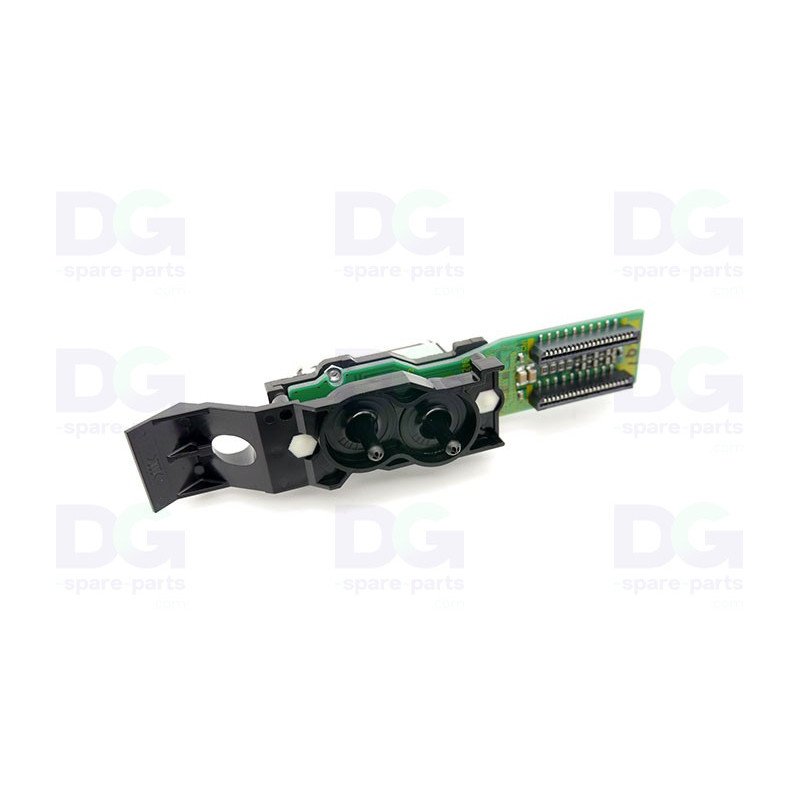

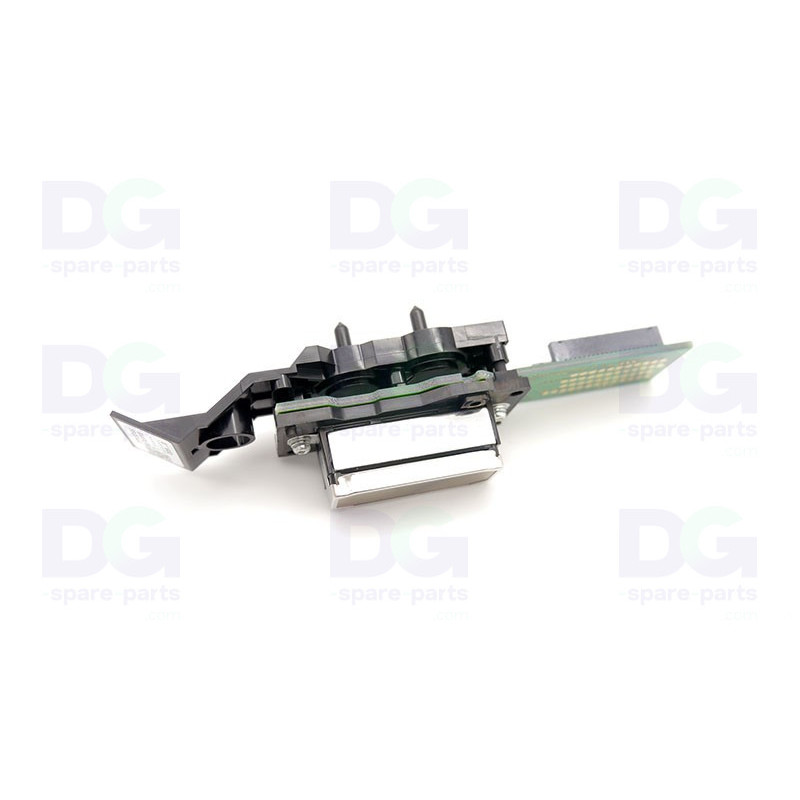

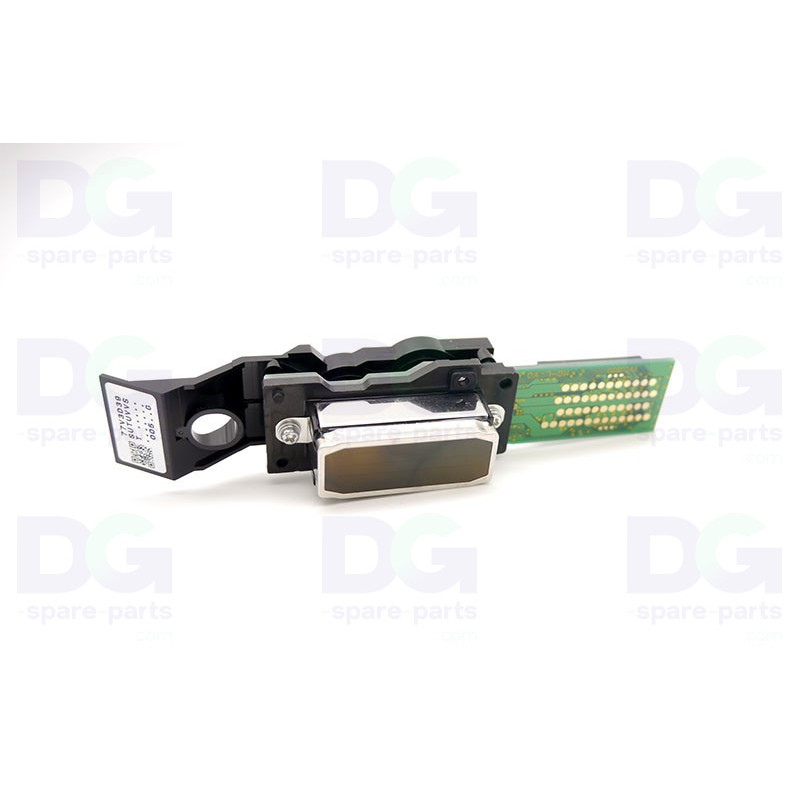

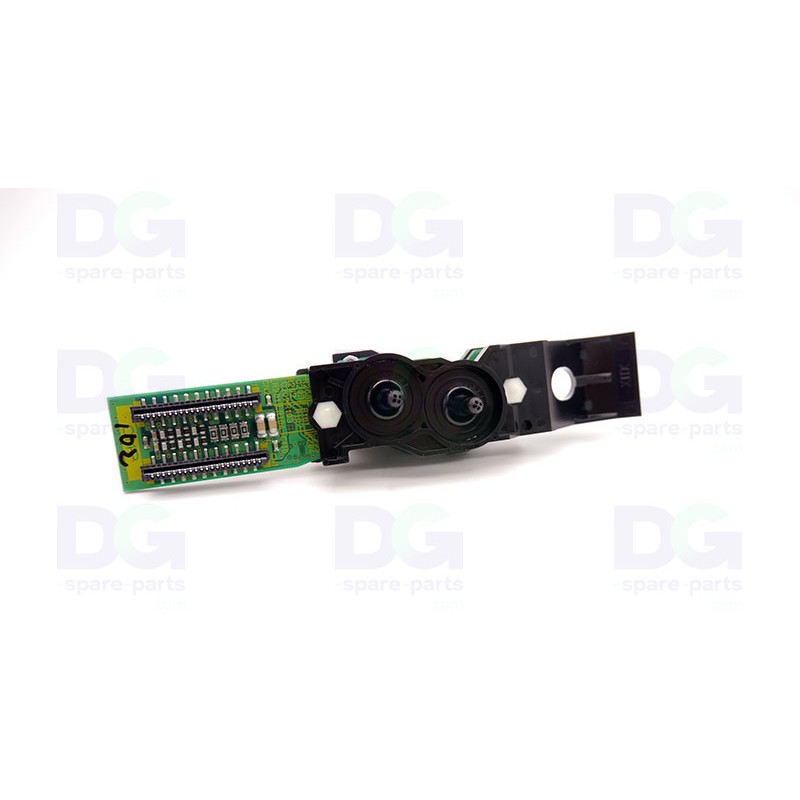

1000002201 - Epson DX4 solvent print head

1000002201 – Epson DX4 solvent printhead – Roland / Mimaki / Mutoh

The Epson DX4 solvent printhead 1000002201 is fitted to solvent / eco-solvent Mimaki, Roland and Mutoh printers.

It jets solvent/eco-solvent ink droplets by piezoelectric action to form the image on the media, ensures precise placement of the ink dots and regulates the flow and drop size for gradient and solid-fill quality. As a central carriage component, it directly sets print quality and speed.

Technical specifications

• OEM reference: 1000002201
• Manufacturer: Roland
• Part type: Epson DX4 solvent printhead
• Shipping: Shipped ready to install

Compatibility & use

• Mimaki JV3
• Mimaki JV3-75 SP II
• Mimaki JV3-130SP II
• Mimaki TX2
• Mutoh Valuejet 26xx
• Roland CJ
• Roland FJ
• Roland LEC
• Roland LEF
• Roland LEJ
• Roland RS
• Roland SC
• Roland SJ
• Roland SP
• Roland VP
• Roland XC
• Roland XJ

Function

• Jets solvent/eco-solvent ink droplets by piezoelectric action to form the image
• Ensures precise placement of the ink dots for sharp printing
• Regulates the flow and drop size for gradient and solid-fill quality
• Central carriage component that directly sets print quality and speed

Signs of wear

• Clogged or missing nozzles
• Missing lines or streaks when printing
• Poor gradients or solid fills
• Reduced print sharpness

Replacing this part restores the machine to proper working order.

Condition of reconditioned print heads

For used / reconditioned parts, every head is checked before dispatch. As this is reconditioned equipment, print quality cannot be guaranteed to the same level as a new head.

• Perfect: 0 to 2 missing nozzles
• Good: 3 to 5 missing nozzles
• Fair: 6 to 10 missing nozzles

All our print heads are stored in a suitable preservation fluid to protect their condition and operation.

Recommended procedure before installation

1. Rinse thoroughly with isopropyl alcohol
2. Rinse with a suitable solvent
3. Connect the print head to the machine
