31127 - Electronic power supply / Hönle EPS60 UV lamp ballast

Hönle EVG EPS60 electronic ballast / UV lamp ballast – Durst Rho 750 – Ref. 31127

The Hönle EVG EPS60 electronic power supply (ref. 31127.0) is the ballast that powers and regulates the UV lamp on the Durst Rho 750 flatbed printer. Manufactured by Hönle UV Technology, this unit provides the power required to ignite and operate the curing lamp.

Designed for a 7200 W (16 A) lamp on a three-phase 400–480 V, 50/60 Hz power supply, this electronic ballast (EVG) delivers a square-wave output that provides higher UV output than a conventional transformer/inductor ballast of the same electrical power rating.

The Durst Rho 750 uses two identical ballasts, one per UV lamp (on the left and right sides of the carriage, for bidirectional printing curing). They share the same interchangeable part number: this power supply is therefore sold individually and can be fitted to either side.

Supplied as a fully tested unit (with original control connectors and power terminals), it directly replaces the machine’s original UV power supply and can be commissioned without any modifications.

Technical specifications

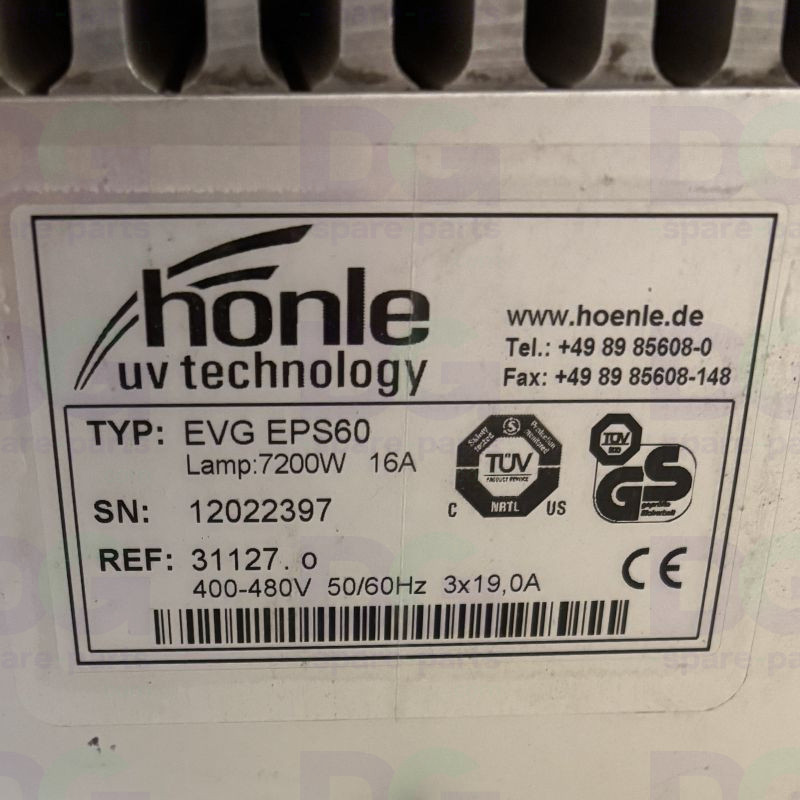

• Part number: 31127.0
• Manufacturer: Hönle UV Technology (Dr. Hönle AG)
• Type: EVG EPS60 – electronic power supply / UV lamp ballast
• Lamp power: 7200 W
• Lamp current: 16 A
• Power supply: Three-phase 400–480 V, 50/60 Hz – 3×19.0 A
• Connectors: Control connectors (15-pin and 9-pin Sub-D) + power terminals
• Certifications: CE, TÜV, GS
• Installation: 2 units per machine (left/right) – identical interchangeable parts
• Delivery: Unit tested, sold individually, ready for installation

Compatibility and use

• Durst Rho 750

Function

• Powers and regulates the UV curing lamp (7200 W)
• Ensures the lamp ignites and remains stable during operation
• Delivers optimised current for improved UV output
• Ensures the safe distribution of three-phase power to the lamp

Possible symptoms in the event of a fault

• UV lamp fails to ignite or ignition is unstable
• Insufficient curing / ink not drying
• Safety shutdowns or UV power supply faults reported by the machine
• Unexpected lamp shutdowns during printing

Replacing the electronic ballast restores the UV lamp’s rated power and ensures proper ink curing, which is essential for print quality and reliability.
