385-002102 - 1-port USB-to-serial converter

385-002102 – USB to Serial (1 port)

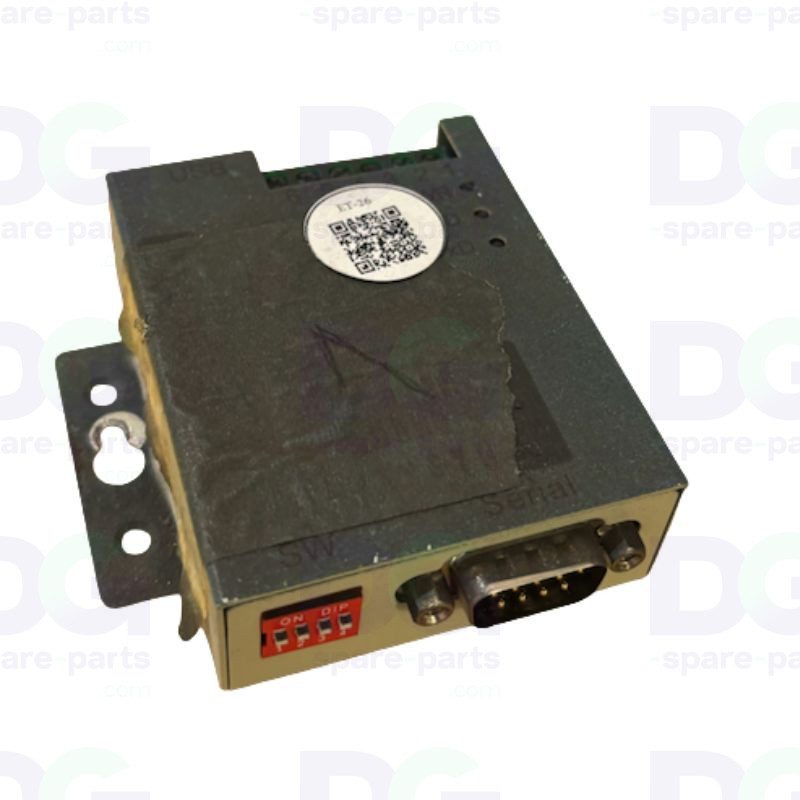

The 1-port USB-to-serial converter, reference 385-002102, is an interface converter used with the Agfa Jeti 3020 Titan flatbed UV printer. It provides the connection between a USB port on the control PC and a machine component connected via a serial link.

This component plays a critical technical role in the machine’s operation. Replacing it restores the equipment to its original performance.

Component function

• Converts a USB port into 1 serial port•
Connection via a male DB9 socket and a 6-point screw terminal block•
Configuration via
integrated DIP switches• PWR / RxD / TxD indicator lights to monitor power supply and data transmission

Part Numbers

OEM part number: 385-002102 (Agfa)

Machine compatibility

• Agfa Jeti 3020 Titan

Important technical information

• Type: USB to serial converter, 1
port• OEM part number:
385-002102• Serial connection: 1 × DB9 male + 6-point screw terminal block•
Settings:
DIP switches• Indicator lights: PWR, RxD,
TxD• Housing: metal with mounting brackets•
Important: the same Agfa part number also refers to a 2-port converter for the Jeti 3020 Titan; please check the number of ports before
ordering• Fast delivery within Europe

Possible symptoms in the event of a fault

• Loss of communication between the control PC and the equipment connected in series•
COM port missing or not recognised by the
PC• Communication error messages on start-up or during
printing• PWR LED off, or RxD / TxD LEDs inactive whilst the machine is sending commands•
Intermittent communication due to a damaged serial port
