Aluminium Head Guide – Roland VS-640 / XR-640 (22135440)

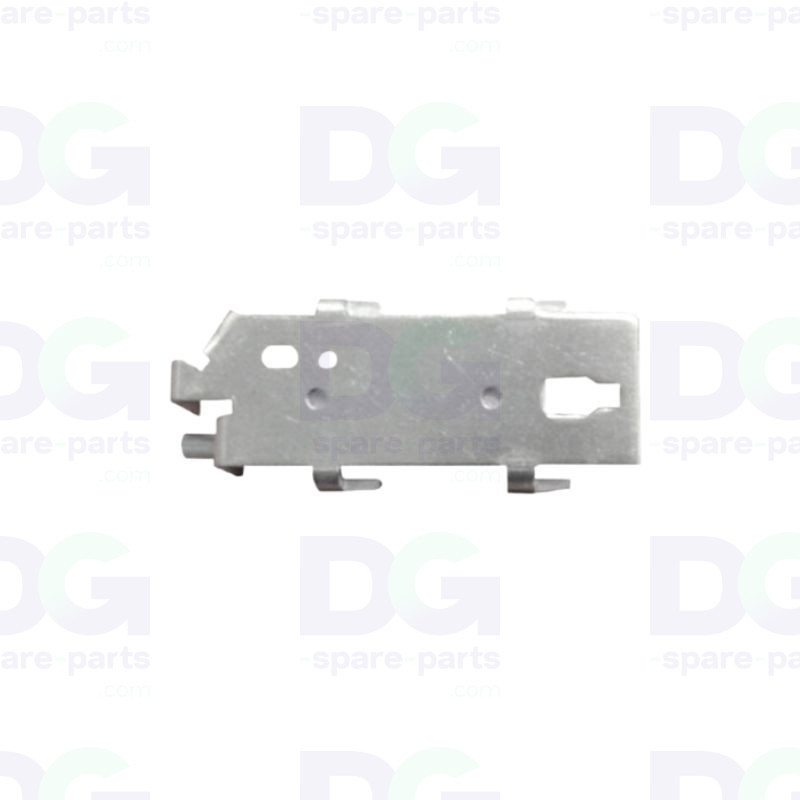

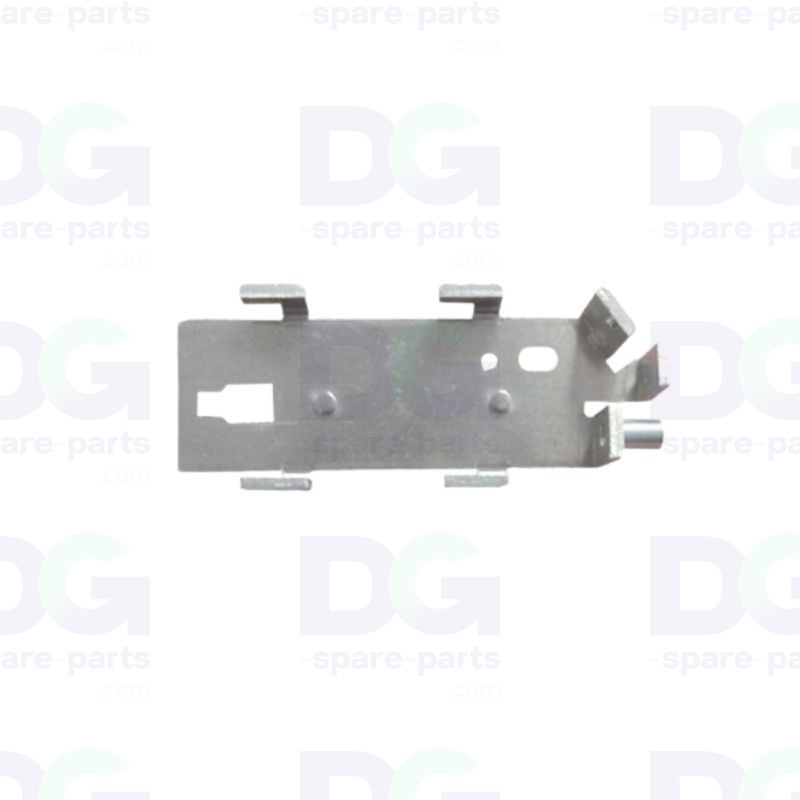

The Guide, Head AL 22135440 is an aluminium head guide for Roland VS-640, VS-540, XR-640, RA-640 and RE-640 printers. It guides the head precisely along the X axis on a hard, wear-resistant surface.

A genuine Roland structural part that restores print dimensional stability.

Technical specifications

• OEM reference: 22135440
• Manufacturer: Roland
• Part type: Aluminium head guide
• Material: Aluminium
• Machines: Roland VS-640 / VS-540 / XR-640 / RA-640 / RE-640
• Shipping: Shipped ready to install

Compatibility & use

• Roland RA
• Roland RE
• Roland VS
• Roland XR

Function

• Guide the head precisely along the X axis
• Provide print dimensional stability
• Offer a hard, wear-resistant surface
• Serve as a critical structural component

Signs of wear

• X-axis head offset
• Print bands or streaks
• Abnormal noise at high speed
• Visible wear on the surface

Genuine Roland spare part, ready to fit.
