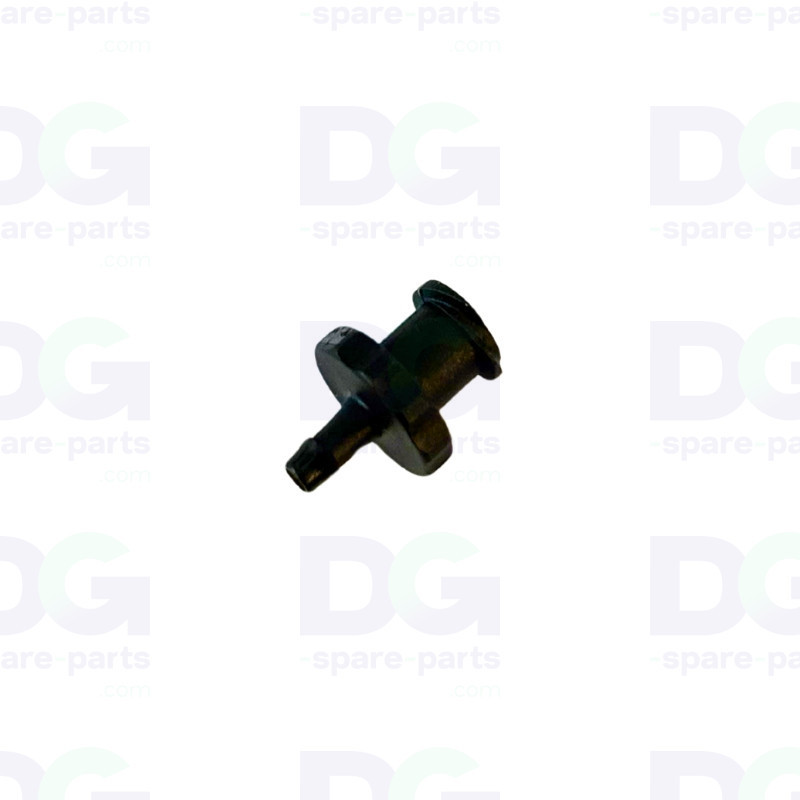

Fitting Luer Lock female to 3/32 barb – 3010104451
The Luer Lock female-to-barb fitting (3010104451) is a connector in the UV ink supply circuit of Canon Océ Arizona and Fujifilm Acuity Advance flatbeds. It joins the soft tubing (2.4 mm ID) to the Luer Lock connectors of the ink circuit or the manifold block. The 3/32" barb grips the tube by friction; the female Luer Lock locks onto its male counterpart by rotation for a sealed, tool-free connection during maintenance.
Technical specifications
- OEM reference: 3010104451
- Manufacturer: Mimaki
- Part type: Luer Lock female-to-3/32-barb fitting
- Barb: 3/32" (~2.4 mm ID tube)
- Luer side: Female (standard male Luer Lock)
- Material: UV-ink and solvent resistant polymer
- Shipping: Shipped ready to install
Compatibility & use
- Canon Océ Arizona 2xx
- Canon Océ Arizona 3xx
- Canon Océ Arizona 4xx
- Canon Océ Arizona 5xx
- Canon Océ Arizona 6xx
- Canon Océ Arizona 12xx
- Canon Océ Arizona 22xx
- Canon Océ Arizona 61xx
- Fujifilm Acuity
- Mimaki JFX500
- Mimaki UJF
- Mimaki UJF-7151 Plus
Function
- Provides a sealed junction between 2.4 mm soft tubing and the Luer Lock connectors
- Allows tool-free connection of the UV supply circuit (Luer rotate-to-unlock)
- Part of the carriage manifold block (vacuum and ink circuit)
- Keeps the circuit sealed under pressure while feeding the UV heads
Signs of wear
- UV ink leaks at the tube/circuit Luer connections
- Tube coming off the barb during carriage movement
- Unstable ink pressure causing print defects
- Cracked or broken fitting after a circuit maintenance
Replacing this part restores the machine to proper working order.
