Coupling Flex - Gantry Drive Shaft - 3010104988

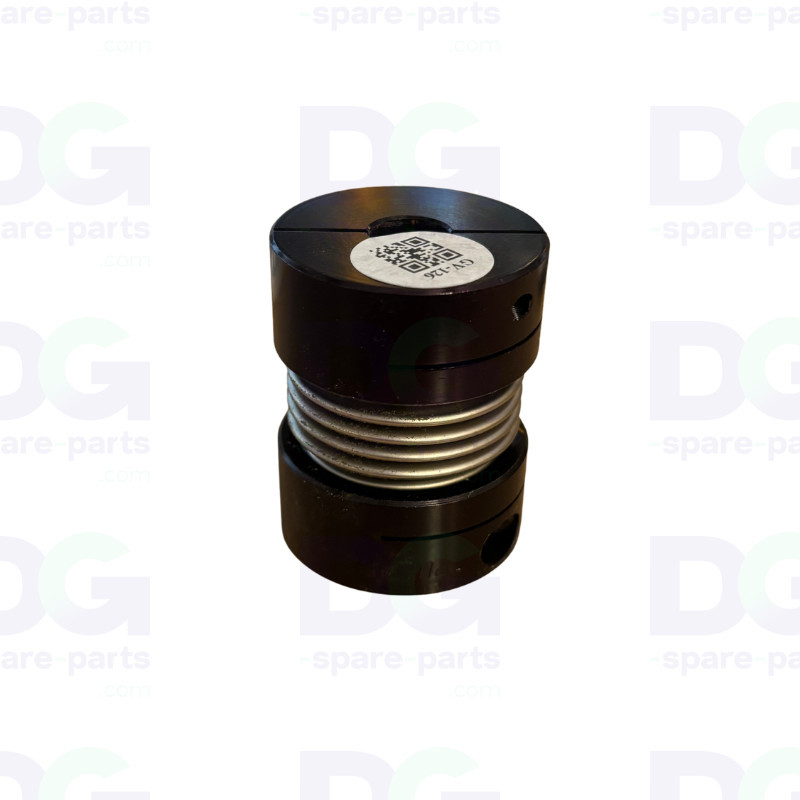

3010104988 – Flexible coupling, gantry drive shaft – Canon Océ

The 3010104988 flexible coupling (Coupling Flex – Gantry Drive Shaft) is fitted to Canon Océ Arizona and Fujifilm Acuity printers.

It flexibly couples the motor to the gantry drive shaft, absorbs slight mechanical misalignment between the two shafts and transmits the motor torque needed to move the gantry. A worn coupling causes noise and misalignment.

Technical specifications

• OEM reference: 3010104988
• Manufacturer: Canon Océ
• Part type: Flexible coupling (gantry drive shaft)
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 2xx
• Canon Océ Arizona 3xx
• Canon Océ Arizona 5xx
• Canon Océ Arizona 6xx
• Fujifilm Acuity

Function

• Flexibly couples the motor to the gantry drive shaft
• Absorbs slight mechanical misalignment between the two shafts
• Transmits the motor torque needed to move the gantry

Signs of wear

• Drive misalignment
• Noise or vibration
• Uneven gantry movement
• Premature wear

Replacing this part restores the machine to proper working order.
