DF-48986 - CR encoder / carriage encoding sensor (VJ-1204)

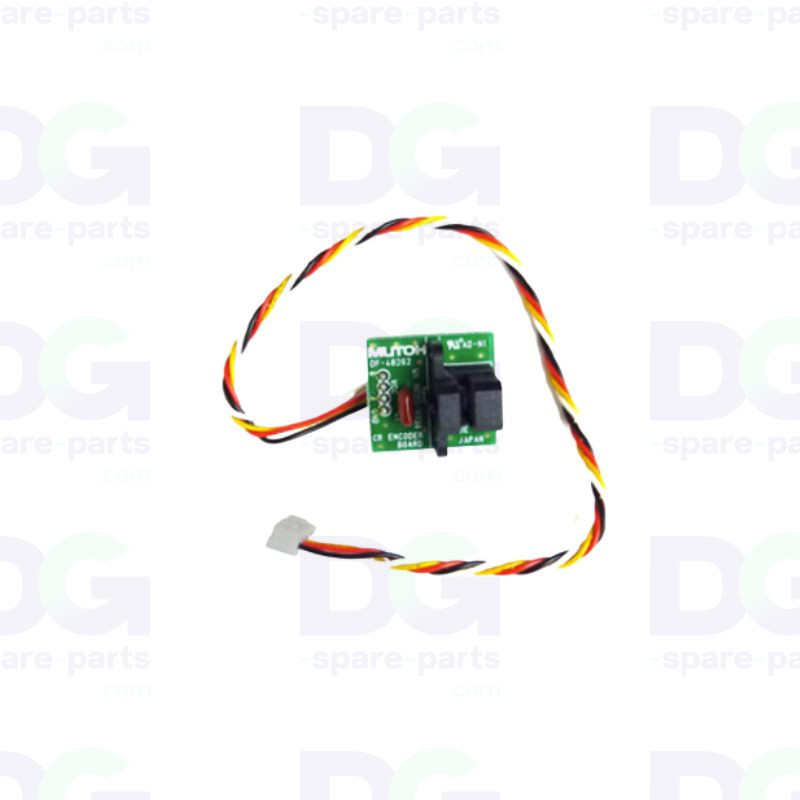

CR Encoder Assy VJ-1204 – Mutoh Valuejet (DF-48986)

The VJ-1204 CR Encoder Assy DF-48986 is a carriage encoder sensor used on Mutoh Valuejet printers. It optically reads the linear encoder strip to determine the instantaneous carriage position and synchronise nozzle firing.

A genuine Mutoh part that restores bidirectional accuracy and smooth carriage motion.

Technical specifications

• OEM reference: DF-48986
• Manufacturer: Mutoh
• Part type: Carriage (CR) encoder assembly
• Type: Carriage (CR) encoder
• Function: Linear encoder reading
• Machine: Mutoh Valuejet
• Shipping: Shipped ready to install

Compatibility & use

• Mutoh Valuejet 16xx

Function

• Optically read the linear encoder strip
• Determine the instantaneous carriage position
• Synchronise nozzle firing
• Support bidirectional print accuracy

Signs of wear

• Horizontal bands or streaks in the print
• Encoder error at start-up
• Jerky carriage movement
• Poor bidirectional alignment

Genuine Mutoh spare part, ready to fit.
