CZ151-40612 – Printhead housing cap (dummy printhead)

Printhead Housing Cap – HP Latex – CZ151-40612

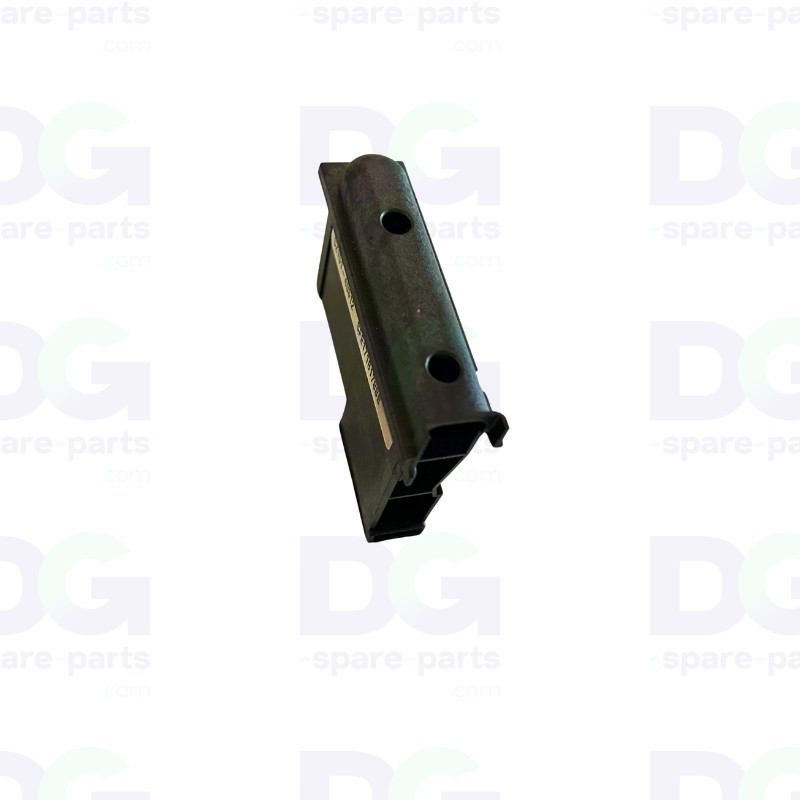

The CZ151-40612 printhead housing plug (dummy printhead) is a moulded plastic component made to the exact dimensions of an HP 831 printhead. It fits into an empty slot on the print carriage of HP Latex 100, 300 and 500 series printers to mechanically occupy the space when no printhead is fitted.

It replicates the L-shaped profile, the locking tab and the guide grooves of an HP 831 printhead, but contains neither a nozzle plate, nor a flex circuit, nor ink orifices. Its function is purely mechanical: it keeps the housing closed and protects the spring contacts of the interconnect, as well as the carriage seals, from dust and ink aerosol. This cover ensures that the carriage remains clean and the contacts remain intact when the printer is brought back into service.

Supplied individually, it is fitted as standard by HP in the carriage of new machines (HP barcode label in the 831 printhead format) and removed during installation prior to fitting the setup printheads. It is essential for transporting, storing or shipping a machine or carriage from which one or more printheads have been removed.

Technical specifications

• OEM part number: CZ151-40612
• Manufacturer: HP
• Part type: Printhead socket cap (dummy printhead), black moulded plastic
• Applicable area: Print carriage – HP 831 printhead sockets
• Dimensions: Identical to an HP 831 printhead (CZ677A / CZ678A / CZ679A / CZ680A), without nozzles or electrical contacts
• Delivery: Single part, ready for insertion into the housing
• Part type: Genuine HP part (OEM) – plastic part not listed in the HP catalogue
• Application: HP roll-to-roll latex printers – transport, storage, reconditioning

Compatibility and use

• HP Latex 110, 115
• HP Latex 310, 315, 330, 335
• HP Latex 360, 365, 370, 375
• HP Latex 560, 570

Function

• Seal an empty printhead slot on the carriage
• Protect the spring contacts on the interconnect from dust and ink mist
• To protect the seals and guides in the housing during transport or storage
• Keep the carriage mechanically complete when shipping without print heads

Possible symptoms of wear

• Broken locking tab: the cap no longer clips into the housing
• Cap missing during transport: interconnect contacts are dirty or oxidised
• Print head detection errors or faulty contacts when a machine stored without the cap is brought back into service
• Dried ink deposits and dust in the printhead housing left open

This cap is a protective accessory that should be kept with every HP Latex printhead: replacing it prevents damage to the interconnect – a costly component – whenever the machine is handled or shipped without its printheads.
