M400564 - Guide Cap

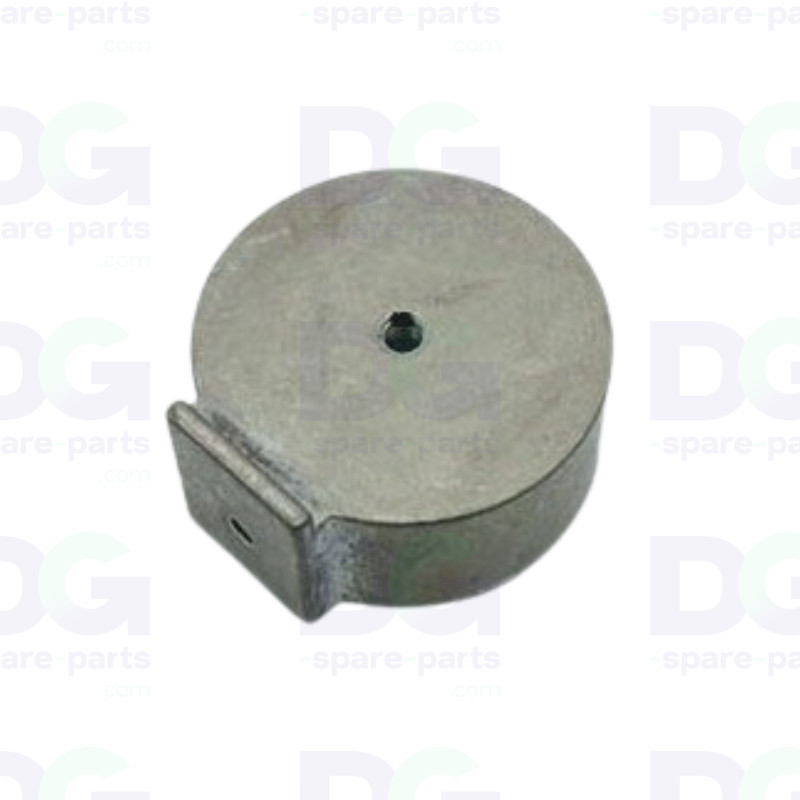

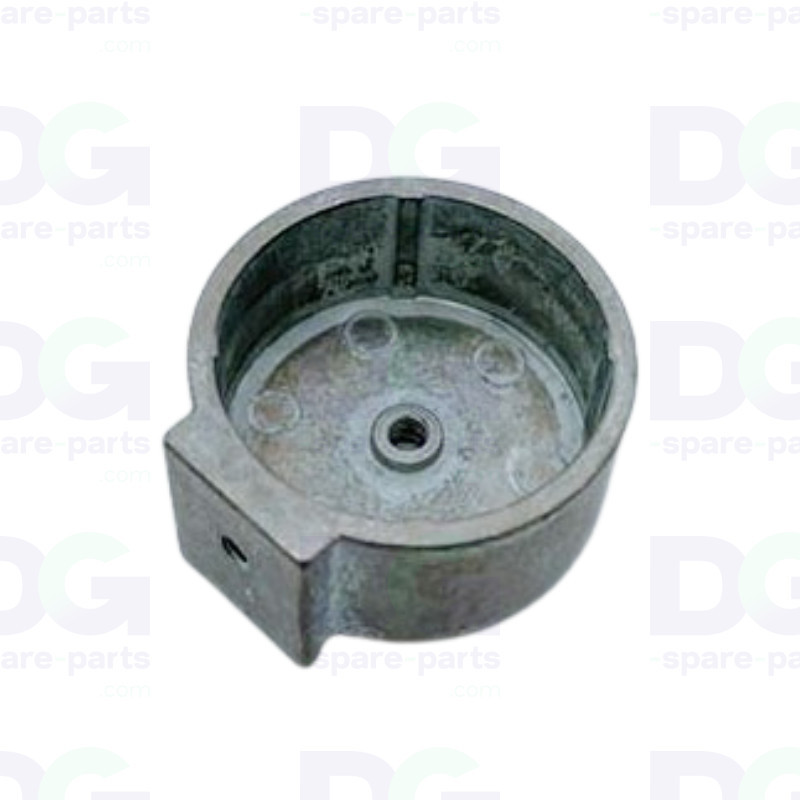

Mimaki Cap Guide — Part No. M400564

The M400564 Cap Guide is a genuine Mimaki part that provides mechanical guidance and support for the media winding or transport system on large-format inkjet printers in the JV33, CJV30 and associated series. It is a direct replacement for the previous part number M602278.

This component plays a vital role in the precision of media feed: a worn or damaged cap guide can cause print misalignment, creases in the media or feeding issues. Preventive replacement is recommended during any maintenance work on the winding system.

Technical specifications

• Part number: M400564
• Replaces: M602278
• Brand: Mimaki (original part)
• Type: Cap Guide — media guide system / take-up
• Material: Metal

Compatibility

• Mimaki JV33-130 / JV33-160 / JV33-260
• Mimaki JV33-130BS / JV33-160BS / JV33-260BS
• Mimaki CJV30-60 / CJV30-100 / CJV30-130 / CJV30-160
• Mimaki CJV30-60BS / CJV30-100BS / CJV30-130BS / CJV30-160BS
• Mimaki JV34-260
• Mimaki TS3-1600
• Mimaki UJV-160
• Mimaki TPC-1000

Possible symptoms in the event of a fault

• Media drift or misalignment during printing
• Creases or wrinkles on the media
• Incorrect tension or slippage in the winding system
• Visible streaks or misalignment on prints
