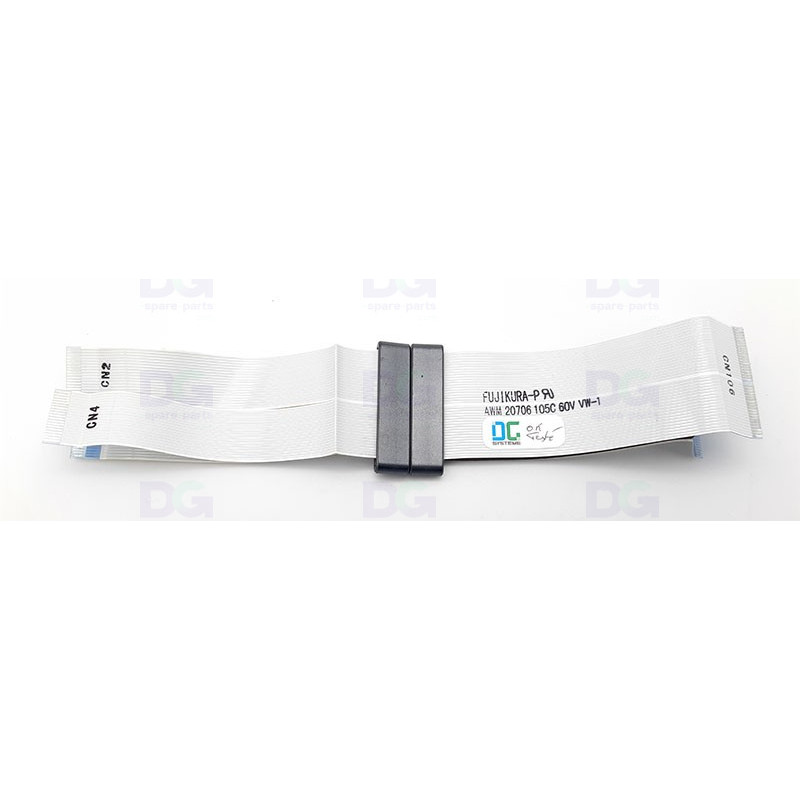

Cable Harness Head A+B - 2119911

HARNESS, HEAD, A + HARNESS, HEAD, B, B, ASSY., ASP

The Cable Harness Head A+B, part number 2119911, comprises the two flat flexible cables (FFCs) that connect the carriage relay board to the print head on Epson Stylus Pro and SureColor large-format plotters. The two flat flexible cables are integral: they are fitted and removed together.

Channel A and Channel B connect to connectors CN105 and CN106 respectively. They carry the nozzle control signals as well as the drive voltages for the print head’s piezoelectric elements.

Constantly subjected to the bending action of the carriage, these ribbon cables are subject to wear and tear: fatigue of the conductive tracks at the bends causes micro-breaks long before a complete break occurs. Replacing them restores the equipment to its original performance.

Component function

- Carry control signals from the carriage circuit board to the print head-
Carry the drive voltages for the
piezoelectric actuators- Cover all the print head channels via the two channels, A and B
- Ensure electrical continuity despite repeated bending of the carriage-
Maintain high-frequency signal integrity throughout the entire print stroke-
Electrically isolate the conductors from one another whilst taking up minimal space

Part numbers

OEM part number: 2119911
Equivalent part numbers for channel A: 2142248 · 2232029
Equivalent part numbers for channel B: 1521061 · 1932631

Machine compatibility

Epson Stylus Pro 24-inch
– Stylus Pro 7700 –
Stylus Pro 7890 / 7908
– Stylus Pro 7900 / 7910

Epson Stylus Pro 44-inch
– Stylus Pro 9700 –
Stylus Pro 9890 / 9908
– Stylus Pro 9900 / 9910 –
Epson PX-H9000

Epson SureColor
P Series – SC-P6000 / SC-P7000 / SC-P8000 /
SC-P9000 – SC-P6070 / SC-P7070 / SC-P8070 / SC-P9070

Important technical information

• Type: set of two integrated flat flexible cables (FFCs), channels A and
B – OEM part number:
2119911 – Manufacturer:
Epson – Connectors: CN105 (channel A) and CN106 (channel B)
– Affected area: print carriage — connection between relay board and print
head – Contents: both ribbon cables together, without board or bracket –
Delivery: genuine Epson (OEM) parts, dispatched ready for
installation – Weight: 0.10 kg

Possible symptoms in the event of a fault

• Randomly missing nozzles on one or more
channels – White streaks or lines appearing during production and then
disappearing – Variable print defects depending on the carriage’s position on the rail –
Print head communication error reported by the machine
- Printing interrupted mid-run without a mechanical error-
Visible burn marks or brown discolouration on the ribbons at the folds

Replacing this assembly restores the connection between the carriage’s electronics and the print head, and eliminates intermittent nozzle loss.
