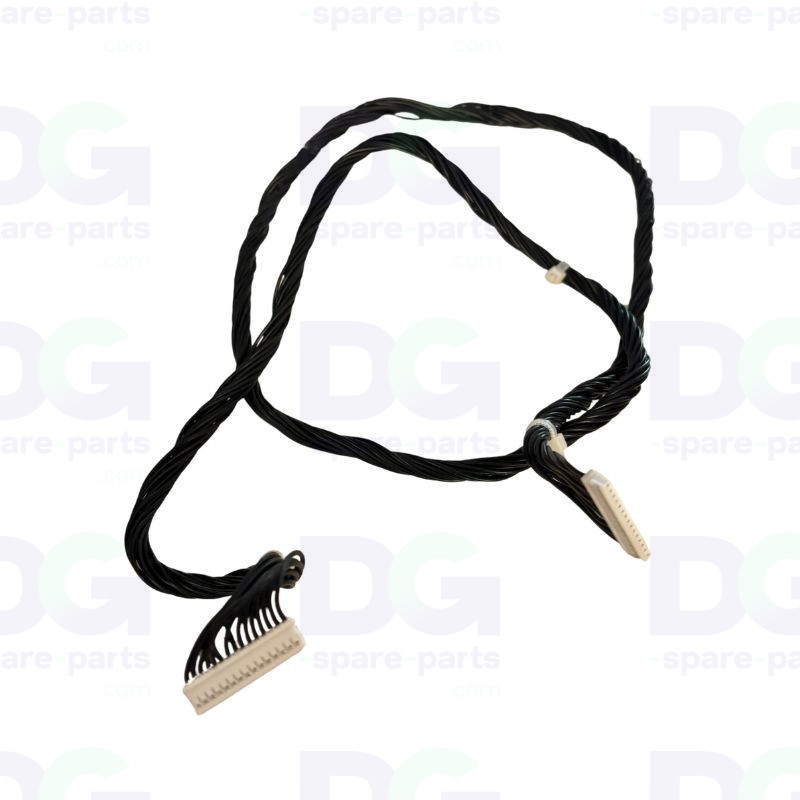

CQ105-50033 – Eola circuit board cable (vacuum fans)

EOLA CABLE

The Eola board cable (Eola cable), part number CQ105-50033, connects the Eola board, which controls the vacuum fans on the platen, to the Interconnect board on HP Latex 560 and 570 printers.

It provides power and enables communication between the two boards. Replacing it restores control of the vacuum fans when the connection is severed, crimped or damaged.

Component function

• Connects the Eola board to the
Interconnect board• Supplies power and
machine control signals to the Eola board• Enables control of the
platen vacuum fans• Ensures communication between the fan control board and the machine’s electronics

Part Numbers

OEM part number: CQ105-50033

Machine compatibility

• HP Latex
560• HP Latex 570

Important technical information

• Type: Eola card to
Interconnect card connection cable• OEM part number:
CQ105-50033• Origin: genuine HP part (OEM)

Possible symptoms in the event of a fault

• Error 43.1:11: communication problem with the vacuum fan board•
Vacuum fans not running or insufficient vacuum on the platen•
Substrate not held securely on the platen•
Intermittent operation (loose connection, damaged cable)
