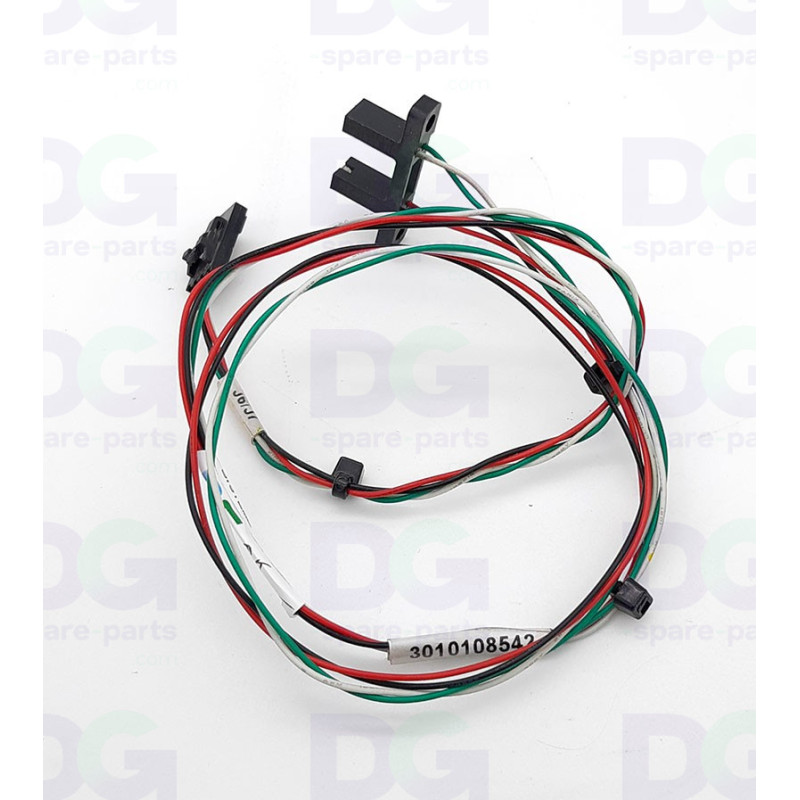

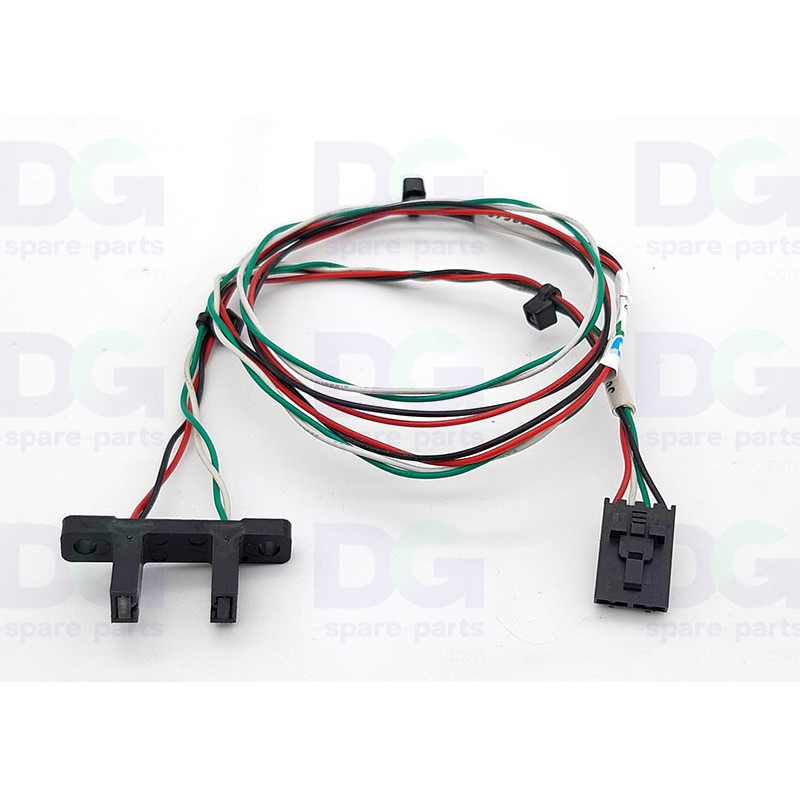

Z axis optical sensor - 3010108542

3010108542 – Optical Z-axis sensor (end of travel) – Canon Océ

The 3010108542 optical Z-axis sensor is fitted to Canon Océ Arizona printers.

It detects the limit (top or bottom) position of the carriage/table on the Z axis, sends a signal to the control board to stop or adjust the vertical movement, protects the Z-axis mechanism against end-of-travel collisions and takes part in the Z-axis homing procedure at start-up. A failing sensor exposes the Z axis to collisions.

Technical specifications

• OEM reference: 3010108542
• Manufacturer: Canon Océ
• Part type: Optical Z-axis sensor (end of travel)
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 4xx
• Canon Océ Arizona 12xx
• Canon Océ Arizona 22xx

Function

• Detects the limit (top or bottom) position of the carriage/table on the Z axis
• Sends a signal to the control board to stop or adjust the vertical movement
• Protects the Z-axis mechanism against end-of-travel collisions
• Takes part in the Z-axis homing procedure at start-up

Signs of wear

• Z end-of-travel not detected
• Height errors
• Risk of Z-axis collision
• Homing errors

Replacing this part restores the machine to proper working order.
