Main PCA CVS - U00123397700

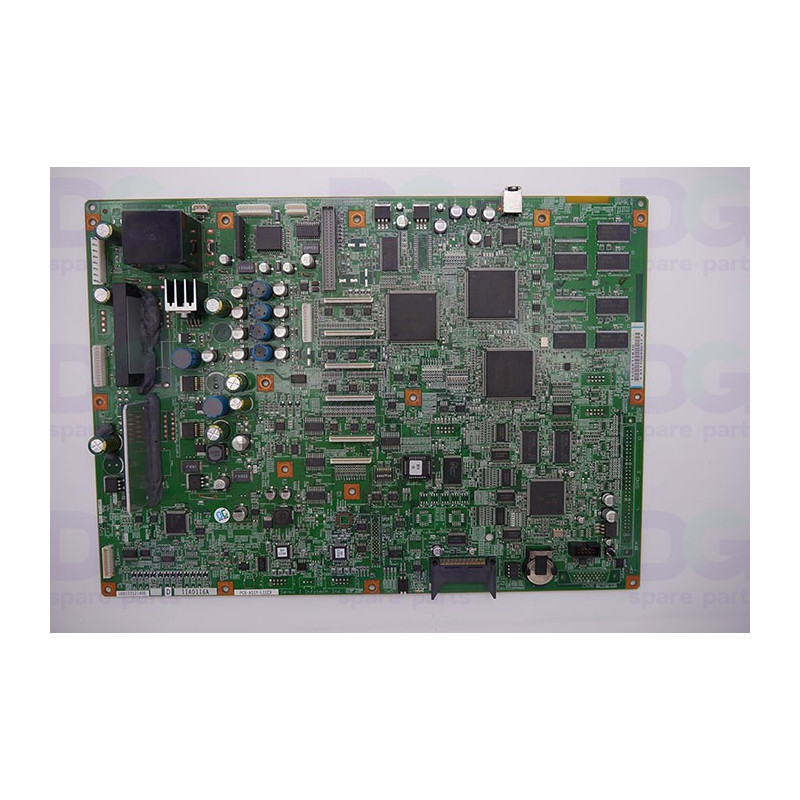

U00123397700 – Main board (Main PCA CVS) – Oki ColorPainter W

The main board (Main PCA CVS, U00123397700) is fitted to Oki-Seiko printers. It provides the central control of the machine and coordinates the exchanges between the various sub-assemblies.

Its designation "Main PCA CVS" ("ColorPainter W Series Main PCA CVS") and its compatibility with the ColorPainter W-54s and W-64s are confirmed by three independent distributors, who present it as the main board of these machines.

Technical specifications

• OEM reference: U00123397700
• Manufacturer: Oki-Seiko
• Part type: Main board (main PCA)
• Manufacturer designation: "Main PCA CVS" ("ColorPainter W Series Main PCA CVS")
• Series: ColorPainter W (W-54s, W-64s)
• Note: The equivalent references U00122521400 and U00092187003 come from our own data: no independent source has confirmed them. Check against the reference read on your machine's board before ordering. Our data also mention the designation "PCB Assy LEE CV", without independent confirmation.
• Shipping: Shipped ready to install

Compatibility & use

• Oki ColorPainter W

Function

• Provides the central control of the machine
• Coordinates the exchanges between the sub-assemblies
• Acts as the central electronic control interface

Signs of wear

• Sub-system not driven
• Electronic errors
• Loss of internal communication
• Erratic behaviour or machine stops

Replacing this part restores the machine to proper working order.

Equivalent references : U00122521400 · U00092187003
