PBA Mother Board w/mem & CPU (PT330) - 3010114472

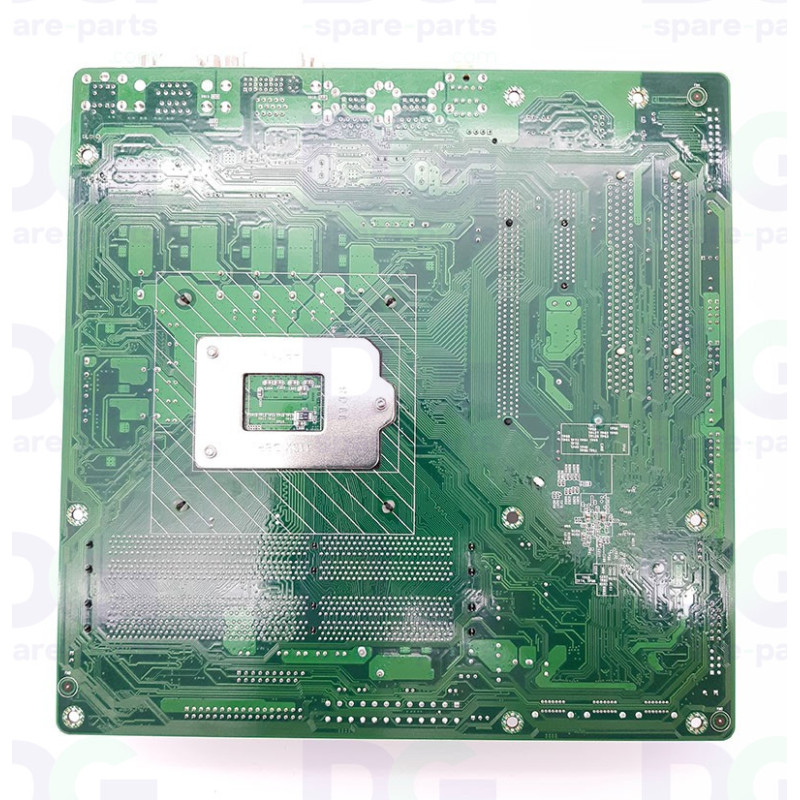

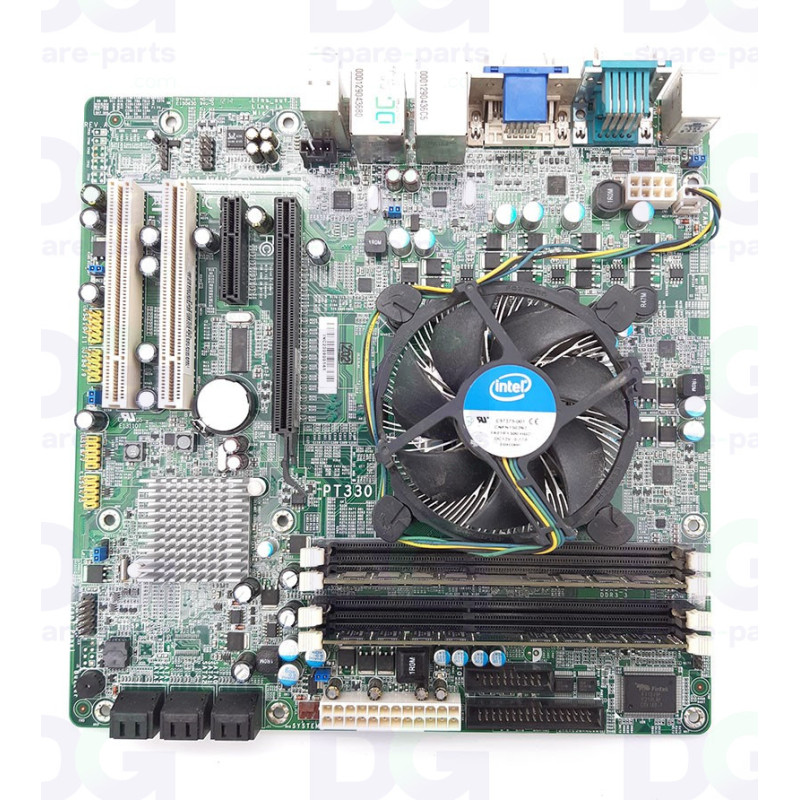

3010114472 – Mother board with memory & CPU (PT330) – Canon Océ

The 3010114472 mother board (PBA Mother Board w/mem & CPU, PT330) is fitted to Canon Océ Arizona and Fujifilm Acuity printers.

It controls the whole printer command system, interconnects the peripherals (DVI/VGA display, Ethernet network, serial and USB ports, keyboard/mouse), hosts the memory and CPU that run the firmware, and acts as the interface between the operator panel and the motor/axis control boards. A failing board prevents start-up.

Technical specifications

• OEM reference: 3010114472
• Manufacturer: Canon Océ
• Part type: Mother board (with memory & CPU, PT330)
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 2xx
• Canon Océ Arizona 3xx
• Canon Océ Arizona 4xx
• Canon Océ Arizona 5xx
• Canon Océ Arizona 6xx
• Fujifilm Acuity

Function

• Controls the whole printer command system (print-job processing, communication interfaces)
• Interconnects the peripherals: display (DVI/VGA), network (Ethernet), serial and USB ports, keyboard/mouse
• Hosts the memory and CPU that run the machine firmware
• Acts as the interface between the operator panel and the motor/axis control boards

Signs of wear

• Machine no longer starts
• General system errors
• Loss of communication or interfaces
• Erratic behaviour

Replacing this part restores the machine to proper working order.
