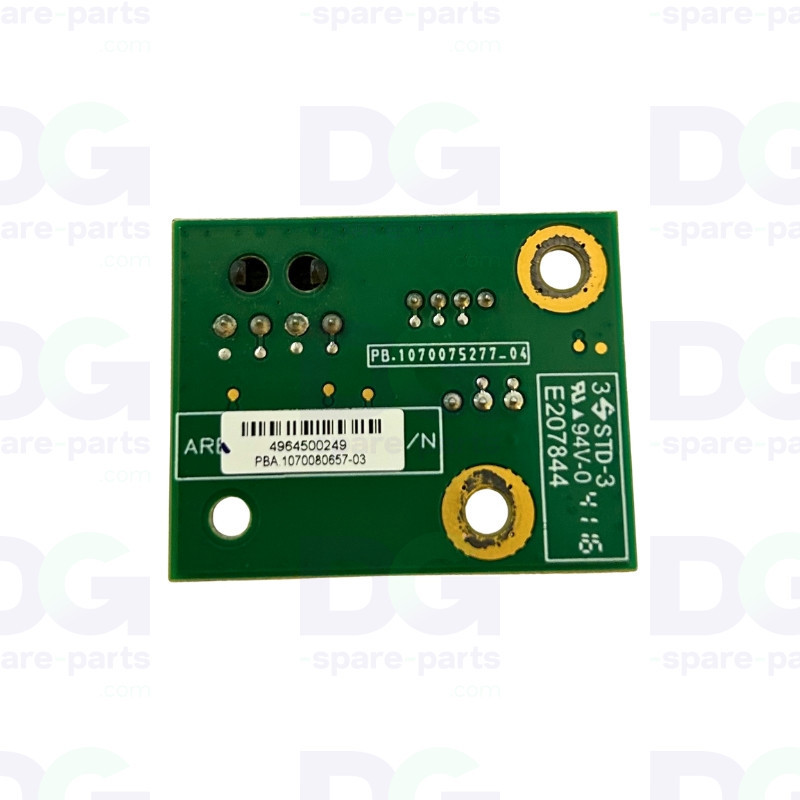

Optical Sensor Board (PCB 1070075277) – Canon Colorado 1640 (1070080657)

The Optical Sensor Board 1070080657 optically detects the passage of a part and converts it to a signal on the Canon Colorado 1640 large-format printer.

A genuine Canon Océ part with two optical elements, adjustment trimmer and X1/X2 connectors; bare PCB ref 1070075277. Ready to install.

Technical specifications

• OEM reference: 1070080657
• Manufacturer: Canon Océ
• Part type: Optical sensor board
• Bare PCB: 1070075277
• Connectors: X1 (4-pin) + X2 (ribbon)
• Adjustment: Detection-threshold trimmer
• Machines: Canon Colorado 1640
• Shipping: Shipped ready to install

Compatibility & use

• Canon Colorado

Function

• Optically detect the presence or passage of a part
• Convert the optical information into an electrical signal
• Allow the detection threshold to be trimmed
• Send the signal to the machine electronics

Signs of wear

• Erratic or absent detection
• False triggers or unstable signals
• Setting drift needing frequent recalibration
• Sensor error messages

Genuine Canon Océ spare part, ready to install.
