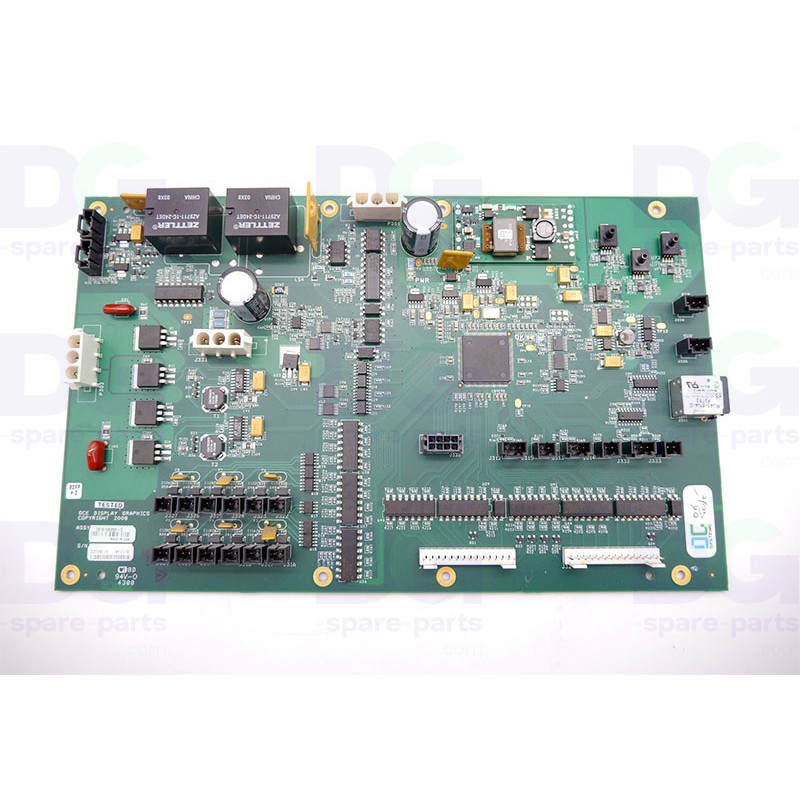

3010122067 - PCB System Control 2AX

2-axis system control board (2AX) – Canon Océ Arizona – 3010122067

The 3010122067 system control board (PCB System Control 2AX) is the control unit that drives and synchronises the two movement axes of the Canon Océ Arizona 3xx and 5xx series.

It centralises the signals exchanged between the machine’s main electronics and the power stages of the axis motors: position setpoints, encoder feedback, safety signals and movement sequencing. This centralisation ensures precise synchronisation of the two axes, which is essential for repeatable printhead positioning from one pass to the next.

The part is supplied as a board only (without a cable harness or bracket), ready for installation as a direct replacement for the original board. It replaces five previous Océ part numbers: 3010111642, 3010120944, 3010106992, 3010108889 and 3010108388.

Technical specifications

• OEM part number: 3010122067
• Part numbers replaced: 3010111642, 3010120944, 3010106992, 3010108889, 3010108388
• Manufacturer: Canon Océ
• Part type: system control circuit board, 2-axis version (System Control 2AX)
• Affected area: control electronics — system cabinet
• Variant: 2-axis version (2AX) — not to be confused with the 3-axis (3AX) or 48 V versions, which are fitted to other Arizona series
• Delivery: board only, ready for installation
• Application: large-format UV flatbed printers

Compatibility and use

• Canon Océ Arizona 300 GT
• Canon Océ Arizona 318 GL
• Canon Océ Arizona 350 GT / 350 XT
• Canon Océ Arizona 360 GT / 360 XT
• Canon Océ Arizona 365 GT / 365 XT
• Canon Océ Arizona 550 GT / 550 XT

As the Arizona models have undergone several electronic upgrades, please note the reference number on the circuit board before placing your order. If in doubt, please contact us: we will confirm the correct variant with you.

Function

• Drives and synchronises the control of the machine’s two movement axes
• Centralises control signals between the main electronics and the axis motors
• Processes encoder feedback and closes the position control loop
• Relays the system’s safety chains and movement authorisations
• Sequences the initialisation and home-positioning phases of the axes

Possible symptoms of wear

• Misaligned axes, jerky movements or movements out of sequence
• Motion errors and axis faults reported by the controller
• Print misalignment, banding and registration errors between passes
• Failure to home at start-up
• Unexpected machine stoppages during production

Replacing this board restores axis synchronisation and positioning reliability, and gets the machine back into production without the need to interfere with the rest of the electronics.
