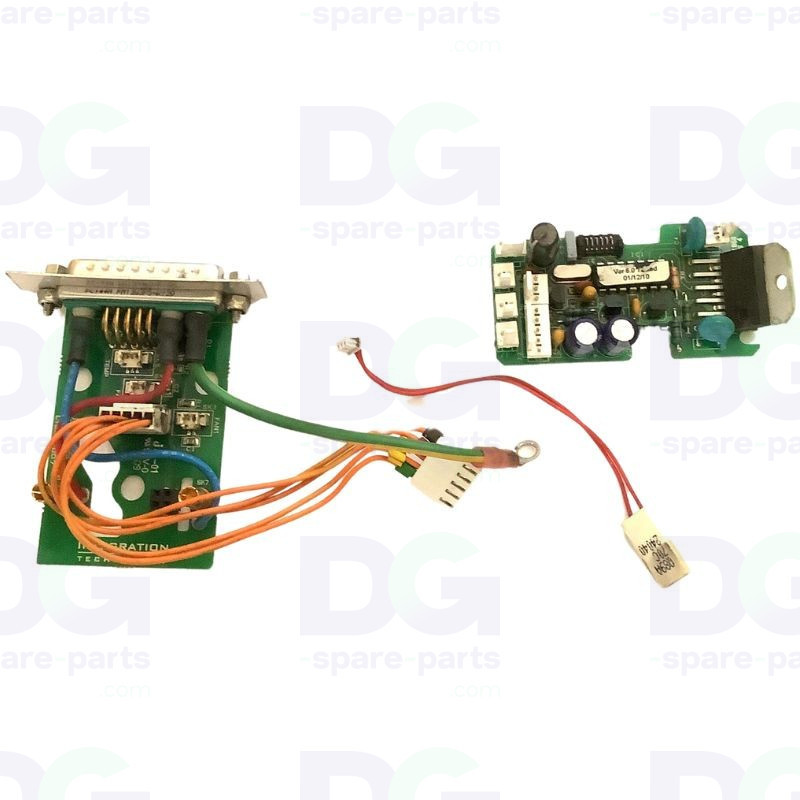

Boards for Housing UV Lamp 3010109550/3010109551

Lamp housing boards (Lamp Housing Boards) Canon Océ Arizona — 24-OCE2397

The lamp housing boards (Cartes pour Boîtier lampe, 3010109550/3010109551) fit Canon Océ Arizona printers. They drive the UV lamp housing electronics and pass signals to the main board.

At Canon Océ, references 3010109550 and 3010109551 denote the complete UV lamp housing "Housing, UV Lamp, Left (No Lamp)" (left) and "Housing, UV Lamp, Right (No Lamp)" (right), Integration Technology "SubZero 085 H" lamp head, supplied without cassette or bulb. This page covers the electronic boards taken from this housing; the lamp is powered by a remote "Subzero 085 Power Supply Unit ESG" 3010103980, separate from the housing.

Technical specifications

• OEM reference: 24-OCE2397
• Manufacturer: Canon Océ
• Part type: UV lamp housing electronic boards (lamp housing boards)
• Manufacturer designation: "Housing, UV Lamp, Left (No Lamp)" 3010109550 / "Housing, UV Lamp, Right (No Lamp)" 3010109551
• Lamp system: UV lamp head "SubZero 085 H" (Integration Technology, 85 mm arc)
• Location: Left housing (3010109550) and right housing (3010109551), on either side of the print carriage
• Manufacturer housing contents: "No Lamp" housing: without cassette or UV bulb
• Note: References 3010109550 / 3010109551 denote, at every distributor, the complete lamp housing without lamp, not the boards alone: these boards are taken from it. One distributor only states that 3010109550 replaces the former reference 3010105466 (left housing); one distributor only also cites this housing on the Fujifilm Acuity HYB172, Inca Spyder 320Q and Inktec Jetrix, and the Arizona 200 GT appears only in a listing: these compatibilities are not retained for lack of a second source. Boards (Integration Technology) according to our records: JJ-01 94V-0 4609 (101437 ISS 1) and BC1 94V-0 BC16789 (101868 ISS 4); other related references: 3010105466, 401075, 401029, 3010105467, 401076, 401030.
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 2xx
• Canon Océ Arizona 3xx
• Fujifilm Acuity

Function

• Onboard electronics of the "SubZero 085 H" UV lamp housing (left 3010109550 / right 3010109551), interfacing with the remote lamp power supply unit 3010103980
• Provides the electronic control of a sub-system
• Passes signals to the main board
• Acts as an interface between the firmware and the hardware

Signs of wear

• Sub-system not driven
• Electronic errors
• Internal communication loss
• Erratic behaviour or machine stoppages

Replacing this part restores the machine to proper working order.

Related parts

• 3010103980 — lamp power supply unit "Subzero 085 Power Supply Unit ESG" (ballast / driver), remote from the housing
