MAIN PCB ASSY - E102570

Ref: 19-MIM021-n

-40%

E102570 JV3-S Main PCB Assy Mimaki JV3-160S / JV3-130S | DG

✔️ Type: Main board
✔️ OEM ref: E102570
✔️ Control board ("control circuit board"): carries the ROM, RAM, Flash (parameters) and D-RAM memories as well as the head controller (HDC), according to the error messages in the Mimaki JV3-160S user manual
✔️ Compatible: Mimaki JV3
✔️ Brand: Mimaki

~~Regular price: €2,395.00~~

€1,437.00 Save 40%

VAT excluded

New or refurbished at the best price
Fast shipping within 24 hours
Worldwide delivery

Rate us on

Product description

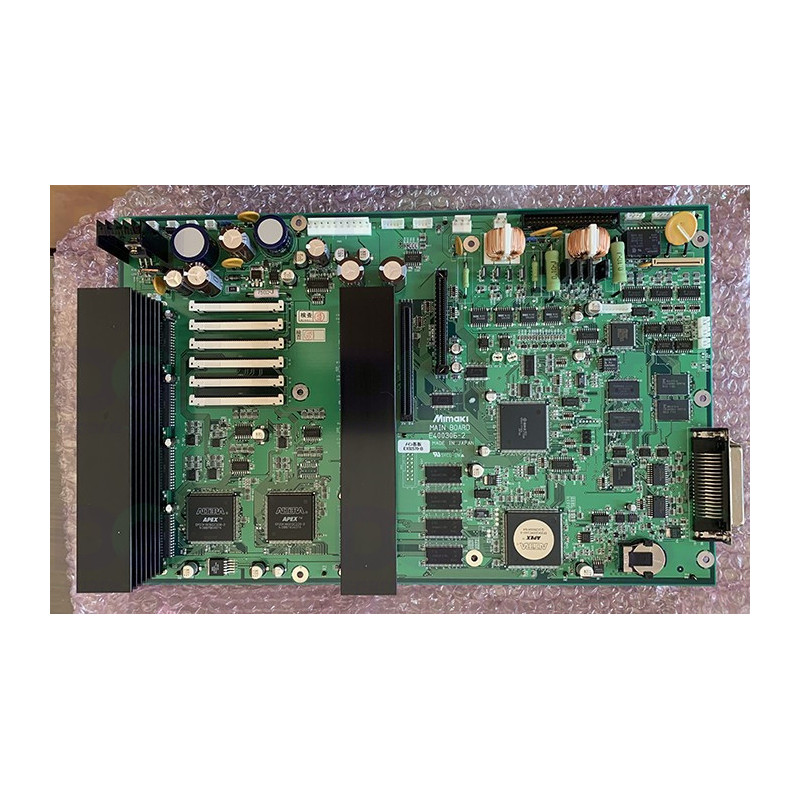

E102570 – Main board (Main PCB Assy) – Mimaki JV3

The main board (Main PCB Assy, E102570) is fitted to Mimaki printers. It controls all the electronic functions, handles the print data and distributes the control signals.

Designated "JV3-S Main PCB Assy" by distributors, it is fitted to the Mimaki JV3-130S and JV3-160S and supersedes the former reference E102193. The Mimaki JV3-160S user manual links the error messages for its ROM, RAM, Flash and D-RAM memories to the control board ("control circuit board").

Technical specifications

OEM reference: E102570
Manufacturer: Mimaki
Part type: Main board
Manufacturer designation: "JV3-S Main PCB Assy"
Superseded reference: E102193 (superseded by E102570)
Monitored circuits: Main ROM and RAM, Flash memory, D-RAM, head controller (HDC), according to the error messages in the JV3-160S user manual
Shipping: Ready to install

Compatibility & use

Mimaki JV3
On an ERROR03 "POWER +5V" / "+35V" message (abnormal voltage), check the power supply before replacing the main board: the manual points to either one.

Function

Control board ("control circuit board"): carries the ROM, RAM, Flash (parameters) and D-RAM memories as well as the head controller (HDC), according to the error messages in the Mimaki JV3-160S user manual
Monitors the +5V and +35V supply voltages (ERROR03 message)
Controls all the machine electronic functions
Handles the print-data processing and the communication with the boards
Stores the firmware and distributes the control signals

Signs of wear

ERROR01 "MAIN ROM", ERROR02 "MAIN RAM", ERROR04 "FLASH ROM" or ERROR06 "D-RAM": control board fault ("Control circuit board is defective")
ERROR03 "POWER +5V" / "+35V": abnormal voltage (power supply or main board)
ERROR09 "HDC": head controller error
Machine no longer starts
General system errors
Print jobs not processed
Loss of communication

Replacing this part restores the machine to proper working order.

Equivalent references : E102193

♻️ DG Spare Parts – European specialist in spare parts for large-format printers and plotters.
