GS2000 PCBA 10 Color Analog BD Assy, WI - 45100242

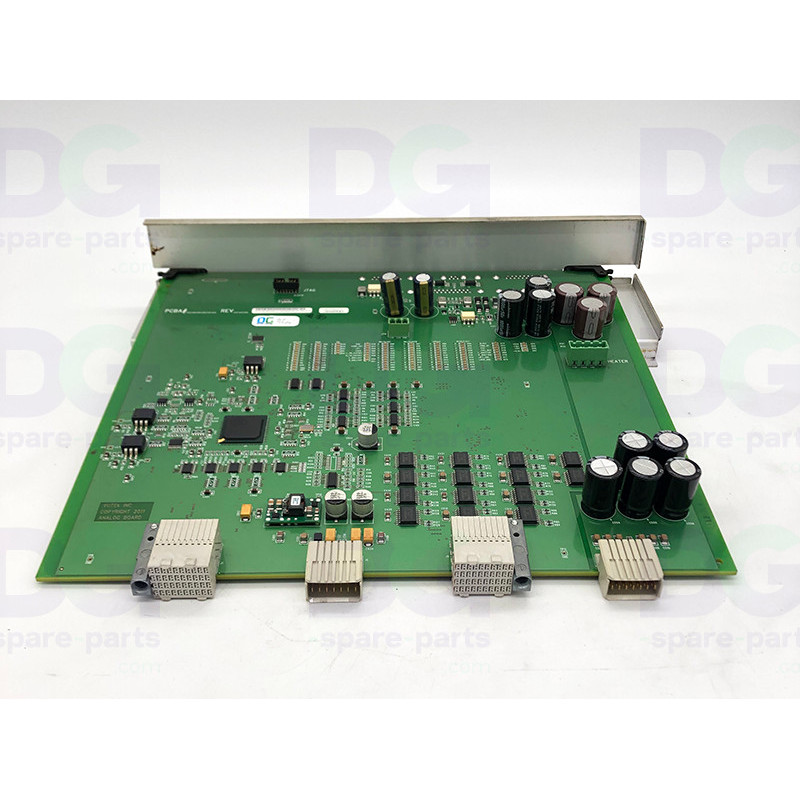

45100242 – 10 color analog board (PCBA 10 Color Analog BD Assy) – VUTEk GS2000

The 45100242 10 color analog board (PCBA 10 Color Analog BD Assy) is fitted to VUTEk GS2000 and to many QS and GS series printers.

It manages the analog signals of the ten colour channels to the printheads. A failing board leaves the channels undriven.

Technical specifications

• OEM reference: 45100242
• Manufacturer: Vutek (Efi)
• Part type: 10 color analog board
• Shipping: Shipped ready to install

Compatibility & use

• VUTEK GS2000
• VUTEk GS2000 Pro
• VUTEk GS2000LX
• VUTEk GS2000LX Pro
• VUTEK GS3200
• VUTEK GS3250r
• VUTEK GS5000r
• VUTEK HS100 Pro
• VUTEk QS2 Pro
• VUTEk QS3 Pro
• VUTEk QS2000
• VUTEk QS3200
• VUTEk QS3200r
• VUTEk QS3220
• VUTEk QS3250r

Function

• Manages the analog signals of the colour channels
• Passes the commands to the printheads
• Contributes to the fidelity of the colour rendering

Signs of wear

• Sub-system not driven
• Electronic errors
• Loss of internal communication
• Erratic behaviour or machine stops

Replacing this part restores the machine to proper working order.
