3010111197 / 3010117478 - PCB Peripherals Board (Peripheral board)

PCB peripherals board – 3010111197 / 3010117478

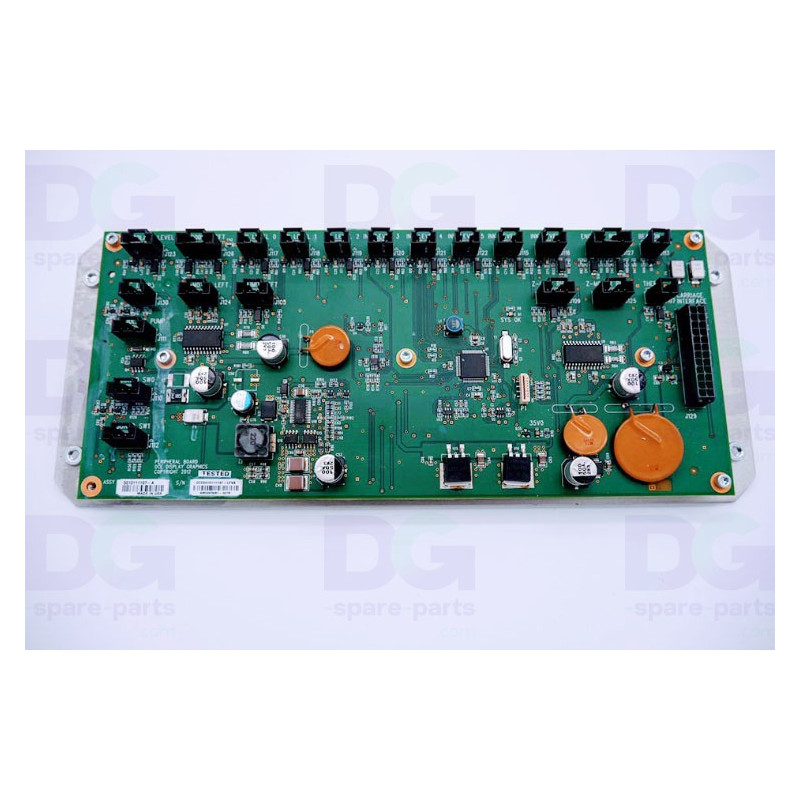

The PCB peripherals board (3010111197 / 3010117478) is the electronics board interfacing the main electronics of Canon Océ Arizona printers with their peripheral devices (sensors, actuators, print-zone modules). It relays control signals and power to the peripherals and reports sensor data to the controller. Supplied as a complete OEM board; the newer 3010117478 (Arizona 550 / Fujifilm Acuity HS HD3545) replaces the 3010111197 on Arizona 440 machines.

Technical specifications

• OEM reference: 3010111197
• Manufacturer: Canon Océ
• Part type: Peripherals board (PCB Peripherals Board)
• Replacement ref: 3010117478 (replaces 3010111197)
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 4xx
• Canon Océ Arizona 6xx
• Fujifilm Acuity

Function

• Electronic interface between the main board and the machine peripherals
• Relays control signals and power to the peripheral devices
• Reports sensor data to the printer controller
• Supports the real-time communication needed to drive printing

Signs of wear

• Peripheral-related fault codes or errors
• Sensors or peripherals not recognised
• Unexpected stops or freezes while printing
• Loss of communication with one or more peripherals
• Intermittent electronic malfunctions

Replacing this part restores the machine to proper working order.

♻️ DG Spare Parts – European specialist in spare parts for large-format printers and plotters.
