Blade compatible with Z50/500-9860

Z50 Decagonal Compatible Blade – Summa / Zünd – 500-9860

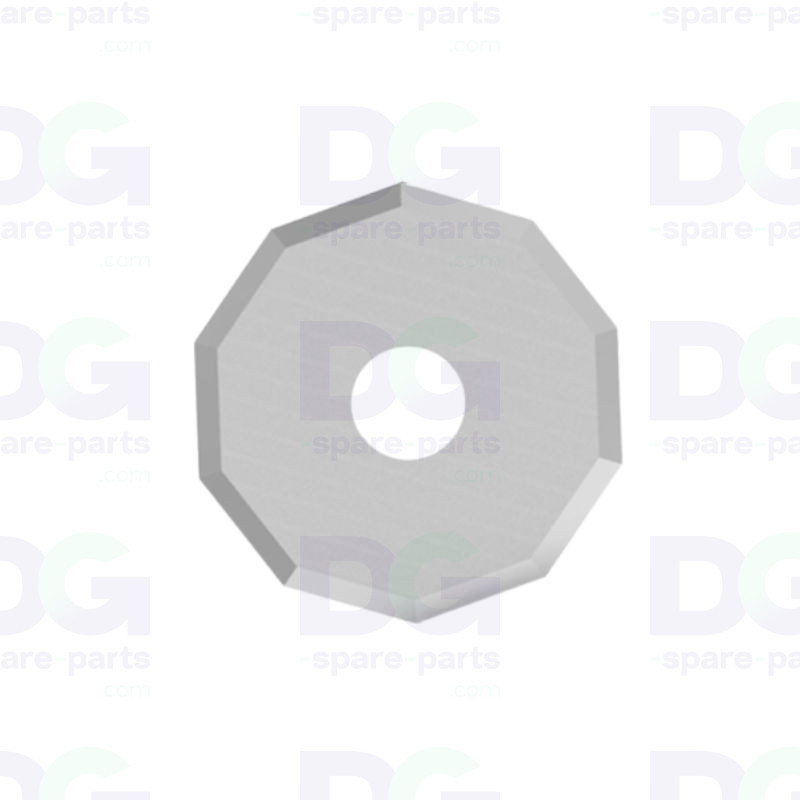

The 500-9860 compatible blade is a 10-sided rotating decagonal blade, manufactured by Diager, designed for use with Summa F Series and Zünd flatbed digital cutting tables. It directly replaces the original blade and fits into the Rotary Module of both platforms.

Made from tungsten carbide (HM – Hard Metal), this 25 mm diameter blade offers high wear resistance. Its 10-sided decagonal design allows the blade to be rotated to a new cutting edge when the active face becomes dull, thereby extending its service life tenfold compared to a single-sided blade.

Available as a Diager-compatible blade, it is a reliable alternative to original Summa and Zünd consumables. Its decagonal profile ensures reduced overcut and superior cutting force, making it ideal for fibrous materials and technical textiles.

Technical specifications

• Summa part number: 500-9860
• Zünd part number: 3910335 (Z50)
• Blade manufacturer: Diager
• Part type: Decagonal rotary blade (Decagonal Knife) – 10-sided
• Material: Tungsten carbide (HM – Hard Metal)
• Diameter: 25 mm (D25) ± 0.2 mm
• Thickness: 0.6 mm ± 0.02 mm
• Maximum cutting depth: 3.5 mm
• Summa compatible module: Rotary Module
• Compatible Zünd module: DRT (Driven Rotary Tool) / PRT (Power Rotary Tool)
• Part type: Compatible blade (Diager aftermarket)
• Application: Digital flatbed cutting tables – fibrous, textile and flexible materials

Compatibility and use

• Summa F1432
• Summa F1612
• Summa F1625
• Summa F1832
• Summa F3220
• Summa F3232
• Zünd S3
• Zünd G3
• Zünd L3

Function

• Rotary cutting of fibrous materials: fibreglass, carbon fibre, aramid fibre
• Cutting of technical textiles: felt, non-woven fabric, nylon, polyester
• Cutting of flexible materials: leather, packaging foam, thick paper
• Rotation on 10 sides to extend the blade’s service life
• Reduced overcut compared to conventional circular blades (Z51/Z52)

Possible signs of wear

• Incomplete cuts or uncut fibres requiring a second pass
• Fraying or tearing of edges on textiles and fibrous materials
• Increased noise or vibration during cutting
• Deviation from the cutting path on curves and tight angles
• Persistent material residue or burrs on the cut edges
• Visible reduction in cutting speed to maintain quality

Regular replacement of the 500-9860 decagonal blade is essential to maintain consistent cutting quality on fibrous materials and textiles. Before replacing the blade entirely, check that all 10 sides have been used by rotating it in the blade holder.
